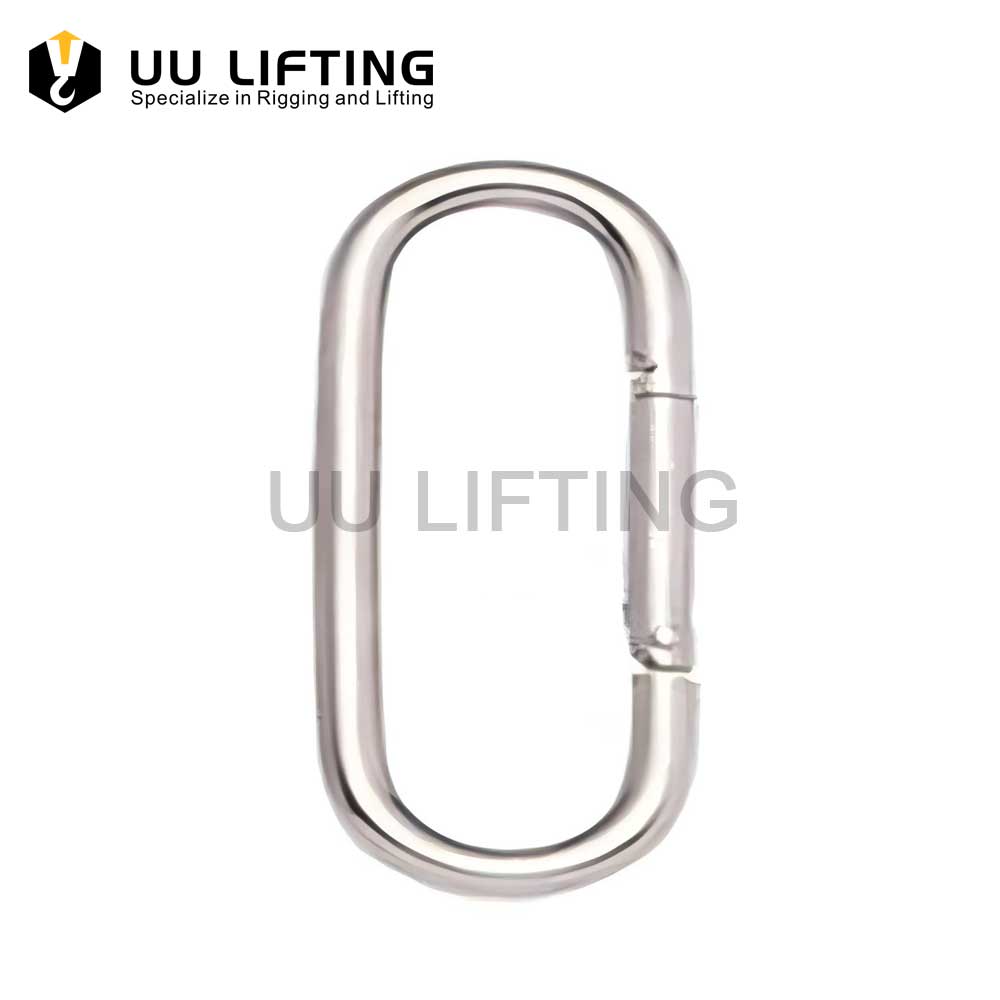

Long Straight Snap Hook

Categories Carabiner Snap Hooks and Quick Links, Rigging Hardware

A long straight snap hook is a type of snap hook that can be used to quickly connect ropes, chains, end links, and other fittings. Snap hooks are also known as spring hooks, spring snaps, spring links, or carabiners. They are a common component in many industrial applications, including dog leashes and theatrical lighting.

Specification

Additional information

Sizes	From 5X67mm to 8X95mm
Application	Marine, Sports, Climbing, Architectural, Industrial, Security

Description

Long Straight Snap Hook Specifications:

MOQ	1 Pallet, 1 Ton or 3000USD
Size	From 5X67mm to 8X95mm

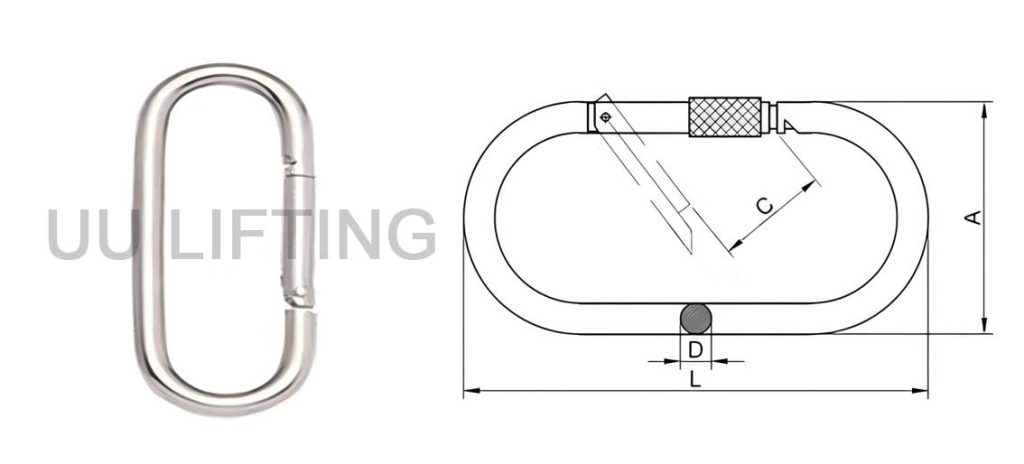

Long Straight Snap Hook Sizes：

Long Straight Snap Hook Sizes
Size (mm)	SWL (lbs)	Dimensions (mm)
Size (mm)	SWL (lbs)	A	C	D	L
5×67	100.00	25.00	9.00	5.00	67.00
6×80	140.00	30.00	11.00	6.00	80.00
8×95	——	40.00	13.00	8.00	95.00

OUR FACTORY

Raw materials of our products are made of high-quality steel that meets the standards, and the raw materials are traceable. And multiple production lines and machines minimize lead times for rigging and lifting equipment.

MANUFACTURING PROCESSES

With eight automatic forging and semi-automatic forging line of up to 1600ton press machines and specialized drillng, tapping, heat treatment and inspection equipment. Strict and standardized production process ensures you receive perfect products.

QUALITY CONTROL

All rigging and lifting products are subjected to strict working tension and breaking the tension test. Complied with ISO9001 and CE certification. Our promise to you: Guaranteed safety at work for people and materials.
