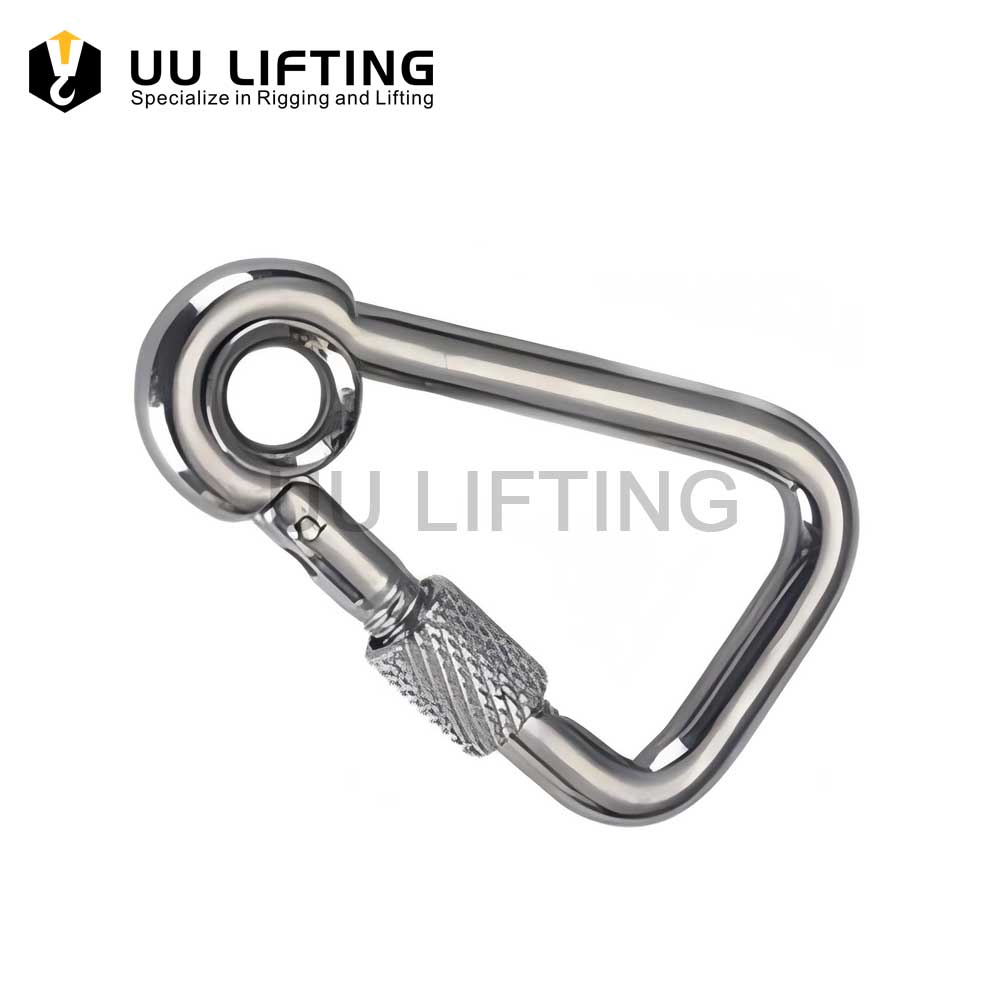

Oblique Angle Snap Hook with Eye Screw

Categories Carabiner Snap Hooks and Quick Links, Rigging Hardware

Oblique Angle Snap Hook with Eye Screw is a type of snap hook with an oblique angle design and an eyelet for enhanced strength, stability, and versatility. It is commonly used in a variety of lifting and rigging applications, including construction, mining, material handling, and more.

Specification

Additional information

Sizes	From 5X50mm to 11X120mm
Application	Marine, Sports, Climbing, Architectural, Industrial, Security

Description

Oblique Angle Snap Hook with Eye Screw Specifications:

MOQ	1 Pallet, 1 Ton or 3000USD
Size	From 5X50mm to 11X120mm

Oblique Angle Snap Hook with Eye Screw Sizes：

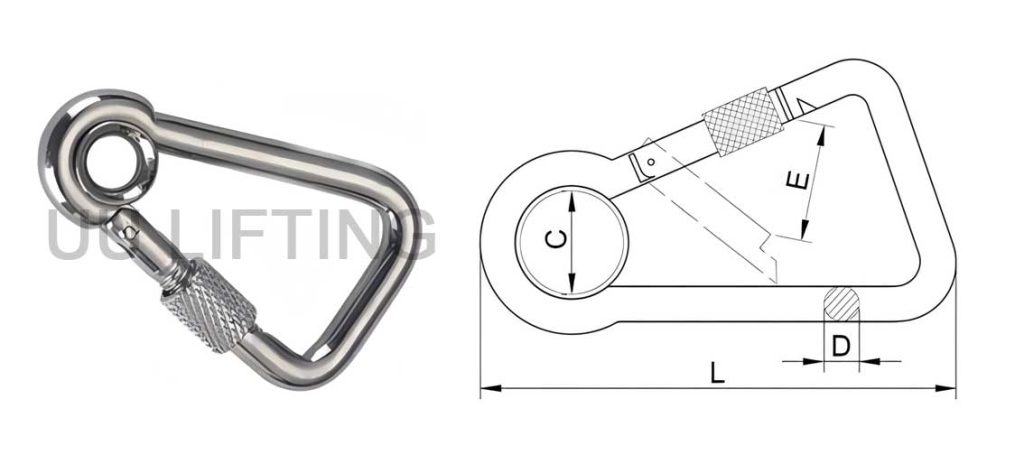

Oblique Angle Snap Hook with Eye Screw Sizes
Size (mm)	SWL (lbs)	Dimensions (mm)				Weight (kg/100pcs)
Size (mm)	SWL (lbs)	C	D	E	L	Weight (kg/100pcs)
5×50	——	5.00	5.00	9.00	50.00	——
6×60	250.00	7.00	6.00	10.00	60.00	2.85
8×80	400.00	9.00	8.00	13.00	80.00	6.90
10×100	650.00	11.00	10.00	18.00	100.00	14.00
11×120	700.00	15.00	11.00	24.00	120.00	20.00

OUR FACTORY

Raw materials of our products are made of high-quality steel that meets the standards, and the raw materials are traceable. And multiple production lines and machines minimize lead times for rigging and lifting equipment.

MANUFACTURING PROCESSES

With eight automatic forging and semi-automatic forging line of up to 1600ton press machines and specialized drillng, tapping, heat treatment and inspection equipment. Strict and standardized production process ensures you receive perfect products.

QUALITY CONTROL

All rigging and lifting products are subjected to strict working tension and breaking the tension test. Complied with ISO9001 and CE certification. Our promise to you: Guaranteed safety at work for people and materials.
