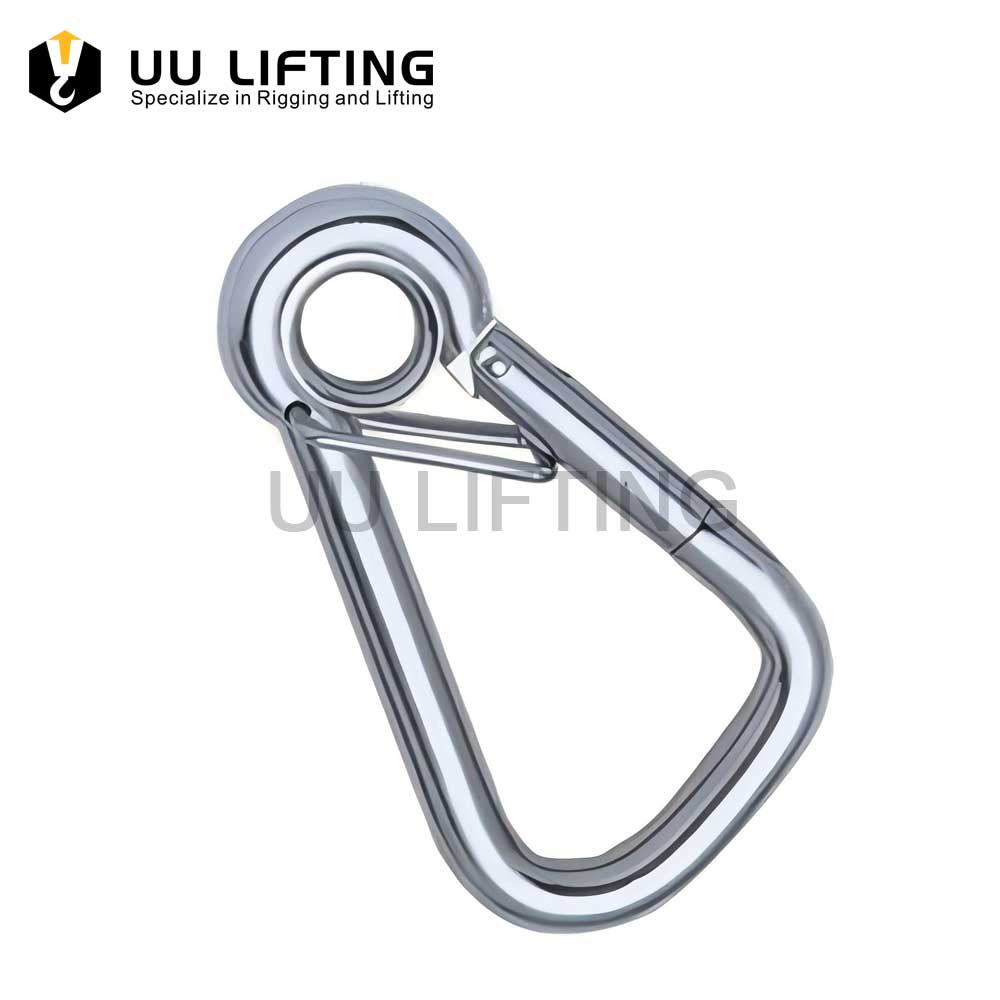

Oblique Angle Snap Hook with Eyelet Spring Pin

Oblique Angle Snap Hook with Eyelet Spring Pin Sizes
Size (mm)	SWL (lbs)	Dimensions (mm)				Weight (kg/100pcs)
		C	D	E	L
5×50	——	6.00	5.00	9.00	50.00	——
6×60	250.00	8.00	6.00	10.00	60.00	2.80
8×80	400.00	10.00	8.00	13.00	80.00	6.80
10×100	650.00	12.00	10.00	18.00	100.00	13.60
11×120	700.00	16.00	12.00	24.00	120.00	19.40

The Oblique Angle Snap Hook with Eyelet Spring Pin is a type of snap hook that features a spring mechanism at its end to prevent the accidental unhooking of lines, such as ropes or cords. It falls under the categories of carabiner snap hooks, quick links, and Rigging Hardware. This particular hook, the “OBLIQUE ANGLE SNAP HOOK WITH EYELET SPRING PIN,” is designed for secure connections in various applications, including lifting and moving heavy loads. It is manufactured from high-quality, traceable steel. The main advantages and features of the Oblique Angle Snap Hook with Eyelet Spring Pin are:

• It provides a secure and reliable connection for operations such as lifting and moving heavy loads.
• The eyelet feature provides additional attachment points, allowing users to customize their lifting setup according to specific application needs.
• This customization leads to added versatility, making the hook suitable for a wide range of lifting configurations and scenarios.
• It is available in multiple sizes, ranging from 5×50 mm to 11×120 mm.
• It has a broad range of applications, including Marine, Sports, Climbing, Architectural, Industrial, and Security purposes.
