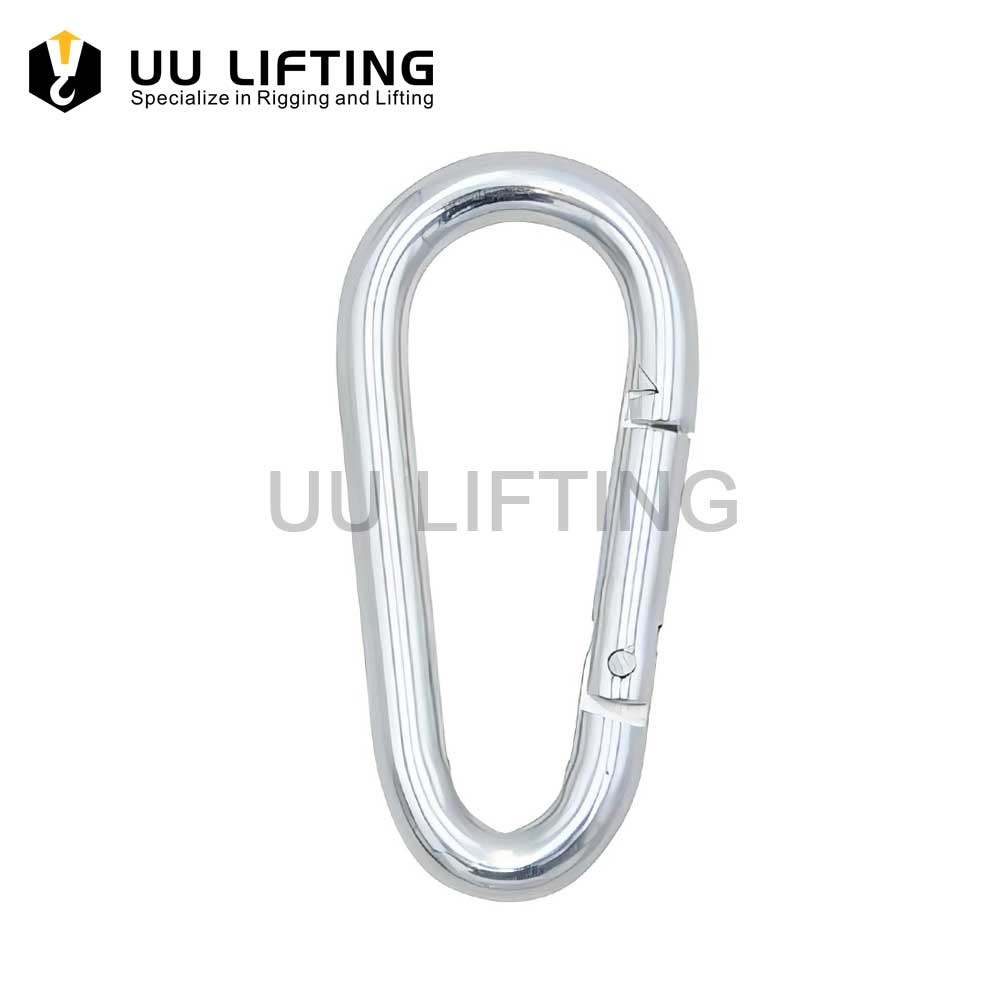

Pear Shape Snap Hook

Categories Carabiner Snap Hooks and Quick Links, Rigging Hardware

A pear shaped snap hook is a hook with a spring snap at the end that’s used for various purposes, including Hanging signs, Displaying fence wraps, Installing wire rope or aircraft cable assemblies, and Light-duty use.

Specification

Additional information

Sizes	From 5X50mm to 14X180mm
Application	Marine, Sports, Climbing, Architectural, Industrial, Security

Description

Pear Shape Snap Hook Specifications:

MOQ	1 Pallet, 1 Ton or 3000USD
Size	From 5X50mm to 14X180mm

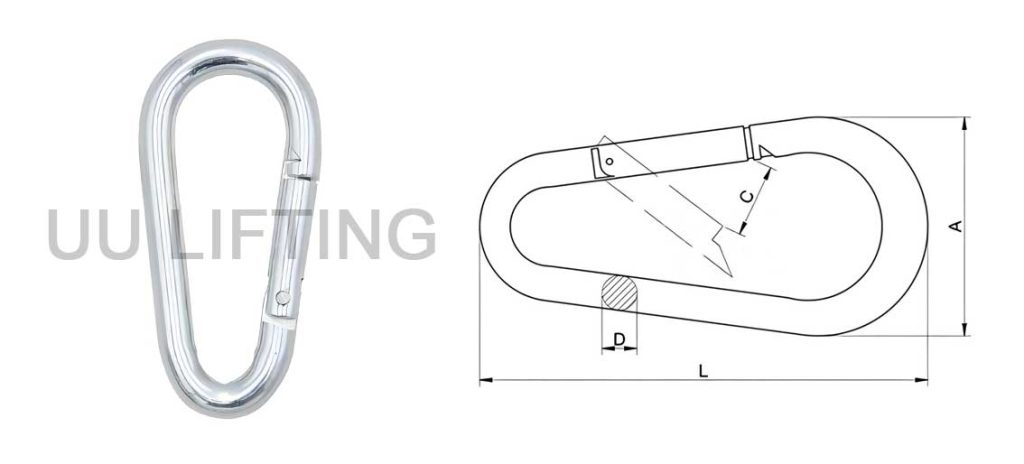

Pear Shape Snap Hook Sizes：

Pear Shape Snap Hook Sizes
Size (mm)	SWL (lbs)	Dimensions (mm)				Weight (kg/100pcs)
Size (mm)	SWL (lbs)	A	C	D	L	Weight (kg/100pcs)
5X50	160.00	25.00	7.00	5.00	50.00	1.70
6X60	260.00	30.00	8.00	6.00	60.00	2.50
7X70	335.00	35.00	8.00	7.00	70.00	4.40
8X80	400.00	40.00	9.00	8.00	80.00	6.60
9X90	500.00	45.00	10.00	9.00	90.00	9.30
10X100	650.00	50.00	11.00	10.00	100.00	13.00
11X120	700.00	57.00	16.00	11.00	120.00	18.50
12X140	800.00	67.00	19.00	12.00	140.00	25.00
13X160	1200.00	74.00	25.00	13.00	160.00	——
14X180	1400.00	86.00	35.00	14.00	180.00	——

OUR FACTORY

Raw materials of our products are made of high-quality steel that meets the standards, and the raw materials are traceable. And multiple production lines and machines minimize lead times for rigging and lifting equipment.

MANUFACTURING PROCESSES

With eight automatic forging and semi-automatic forging line of up to 1600ton press machines and specialized drillng, tapping, heat treatment and inspection equipment. Strict and standardized production process ensures you receive perfect products.

QUALITY CONTROL

All rigging and lifting products are subjected to strict working tension and breaking the tension test. Complied with ISO9001 and CE certification. Our promise to you: Guaranteed safety at work for people and materials.
