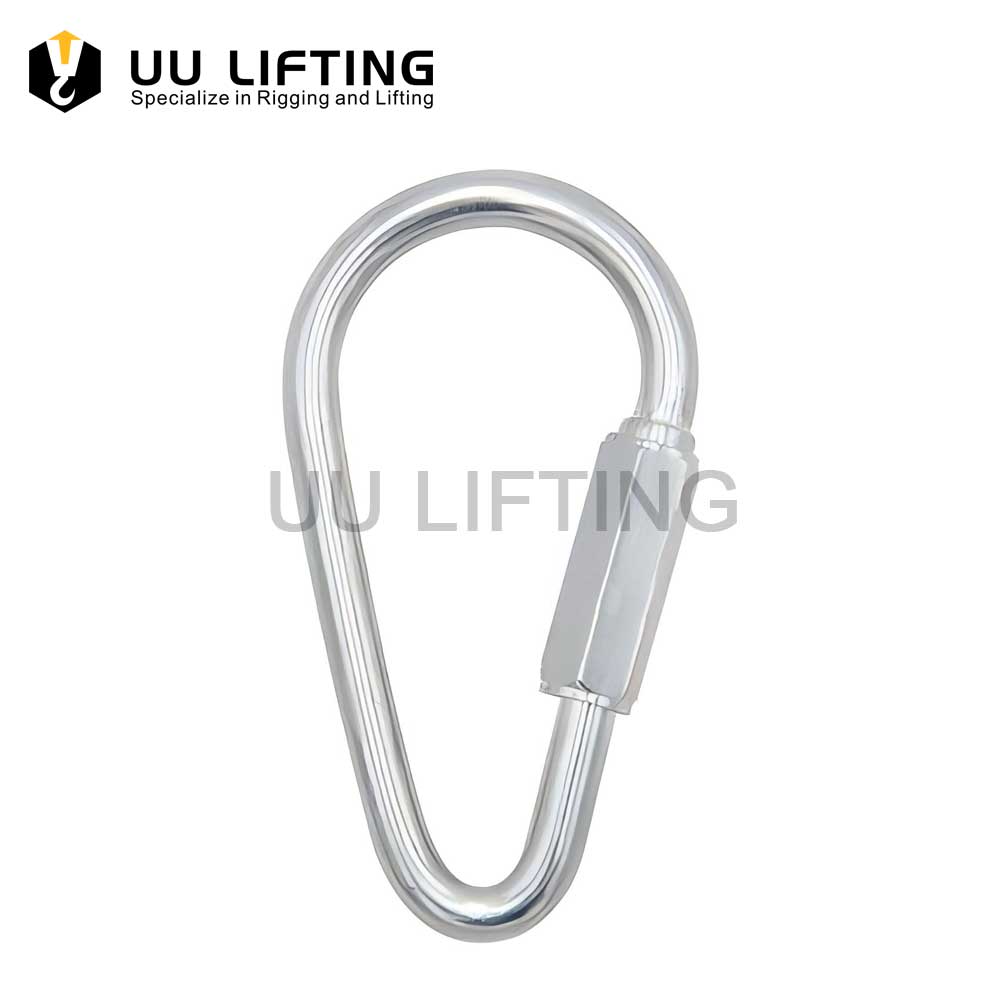

Pear Type Quick Link

Categories Carabiner Snap Hooks and Quick Links, Rigging Hardware

A pear type quick link is a stainless steel carabiner loop with a threaded gate that can be used to connect components. They are also known as pear maillons.

Specification

Additional information

Sizes	From 3.5mm to 12mm
Application	Marine, Sports, Climbing, Architectural, Industrial, Security

Description

Pear Type Quick Link Specifications:

MOQ	1 Pallet, 1 Ton or 3000USD
Size	From 3.5mm to 12mm

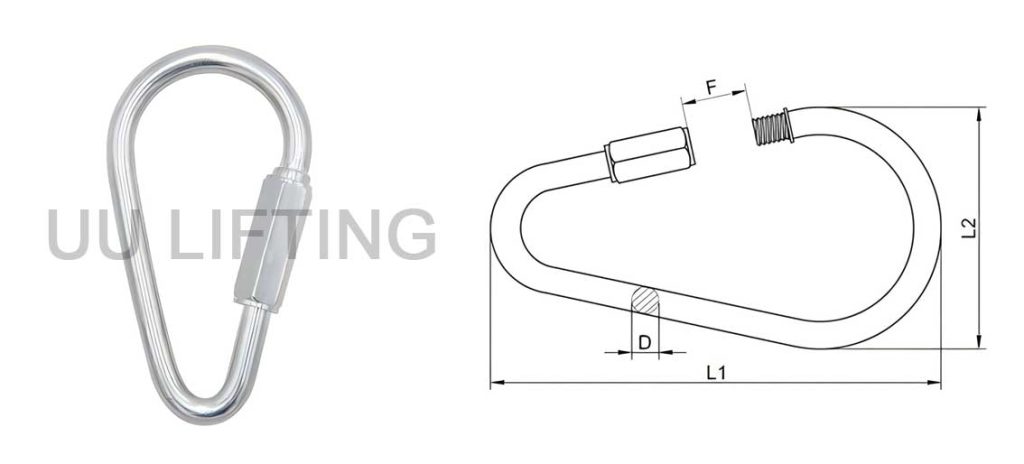

Pear Type Quick Link Sizes：

Triangle Shape Quick Link Sizes
Size (mm)	SWL (lbs)	L1 (mm)	L2 (mm)	F (mm)
Size (mm)	SWL (lbs)	L1 (mm)	L2 (mm)	F (mm)
3.50	120.00	52.00	27.00	9.50
4.00	350.00	60.00	32.00	11.00
5.00	450.00	70.00	37.00	12.00
6.00	600.00	81.00	42.80	14.00
8.00	1100.00	100.00	50.80	17.00
9.00	1300.00	108.00	57.00	19.00
10.00	1500.00	117.50	63.50	20.50
12.00	1650.00	141.00	76.00	23.00

OUR FACTORY

Raw materials of our products are made of high-quality steel that meets the standards, and the raw materials are traceable. And multiple production lines and machines minimize lead times for rigging and lifting equipment.

MANUFACTURING PROCESSES

With eight automatic forging and semi-automatic forging line of up to 1600ton press machines and specialized drillng, tapping, heat treatment and inspection equipment. Strict and standardized production process ensures you receive perfect products.

QUALITY CONTROL

All rigging and lifting products are subjected to strict working tension and breaking the tension test. Complied with ISO9001 and CE certification. Our promise to you: Guaranteed safety at work for people and materials.
