Description

Plain Trolley Specifications:



Plain Trolley Sizes
Rated LoadTest Load
(t)
Minimum Orankle DIA
(m)
Main Size (mm)I Beam Track Width GB706-88 (mm)Net Weight
(kg)
Gross Weight
(kg)
ABCHFM
1/20.8250.9170200190110368-1254.24.35
11.25119023522013068-12577
22.251.121026022012588-14510.610.8
331230325300175100 -1501718
55.251.4275365340200100 -17529.830.2
10132350440400240125 -2038388
20251.6350640450240125-203140145
30382450800420240125-203140145

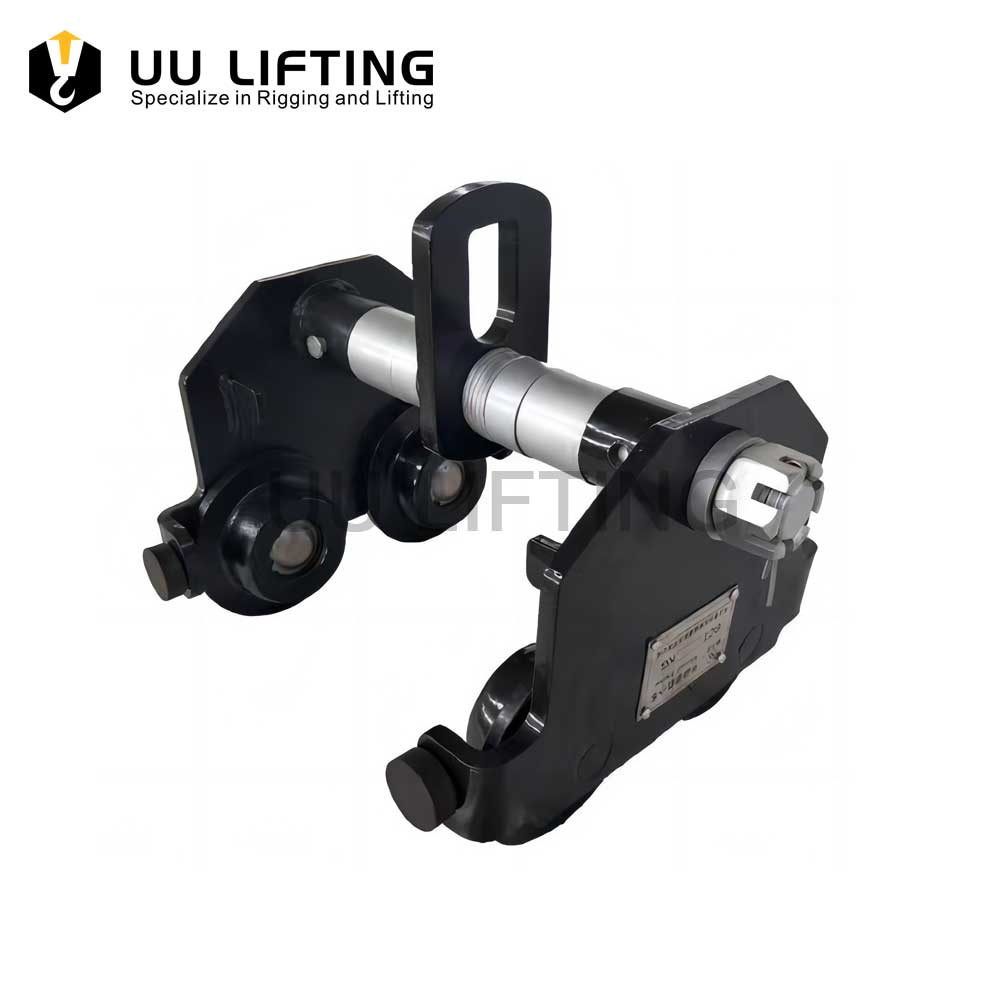

A plain trolley, also known as a manual trolley or push trolley, is a basic trolley that moves along an overhead beam by manual pushing or pulling. It typically has wheels that roll along the beam’s flanges, allowing the trolley to travel horizontally. Plain trolleys are used to move heavy loads around a work site with great flexibility. They can move loads along straight or curved tracks on various beam shapes, including H, I, W, and S beams.
OUR FACTORY
Raw materials of our products are made of high-quality steel that meets the standards, and the raw materials are traceable. And multiple production lines and machines minimize lead times for rigging and lifting equipment.
RAW-MATERIAL
Raw Material
Forged-Plant
Forged
Cast Process
Cast
Chain Process
Chain Machine
Heat Treatment Plant
Heat Treatment
Powder Plastified Plant
Powder Plastified
Package Plant
Package
Warehouse Plant
Warehouse
MANUFACTURING PROCESSES
With eight automatic forging and semi-automatic forging line of up to 1600ton press machines and specialized drillng, tapping, heat treatment and inspection equipment. Strict and standardized production process ensures you receive perfect products.
MANUFACTURING-PROCESSES-shackle
QUALITY CONTROL
All rigging and lifting products are subjected to strict working tension and breaking the tension test. Complied with ISO9001 and CE certification. Our promise to you: Guaranteed safety at work for people and materials.
