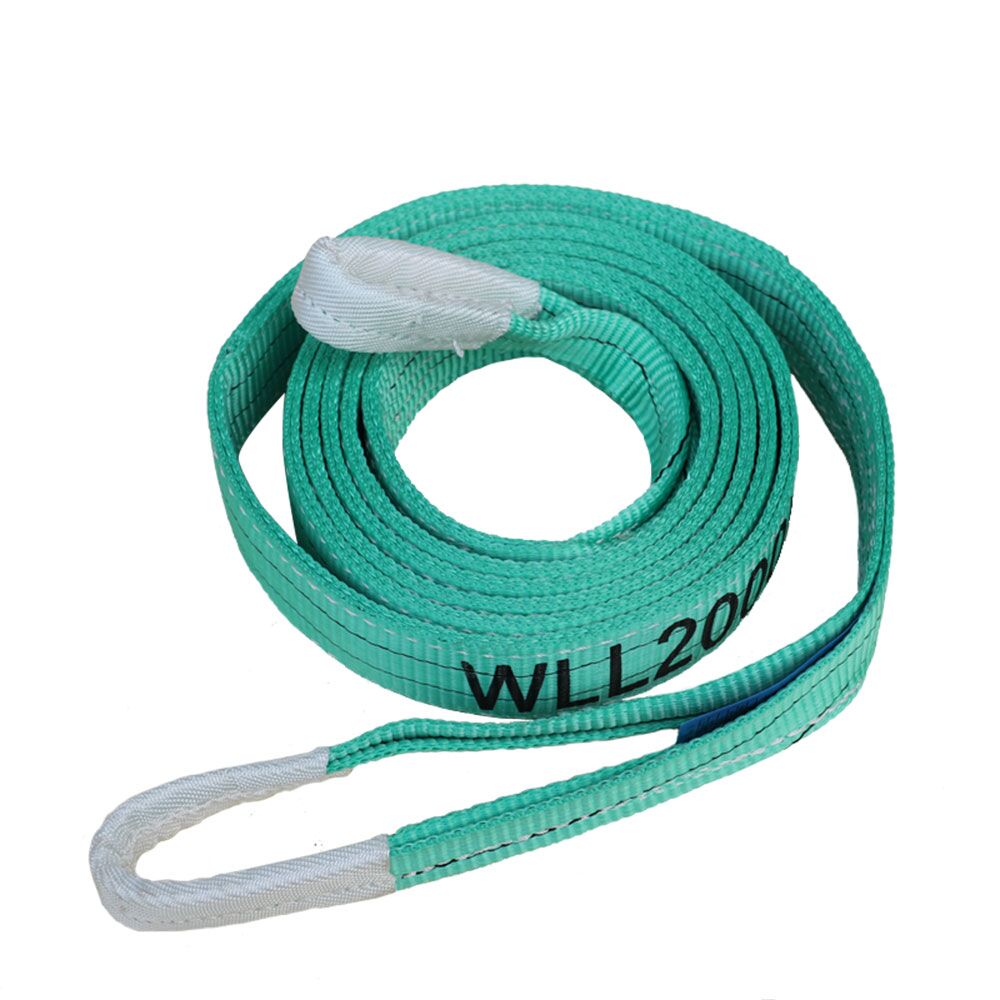

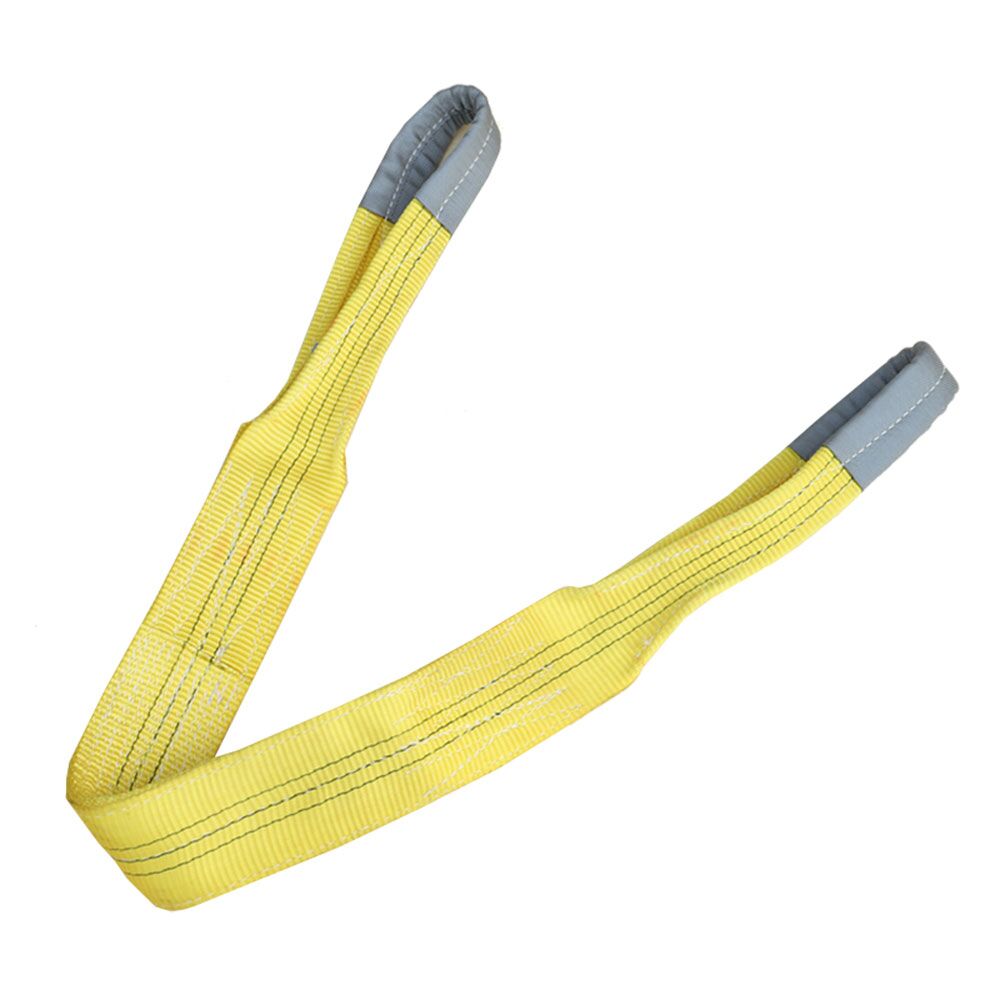

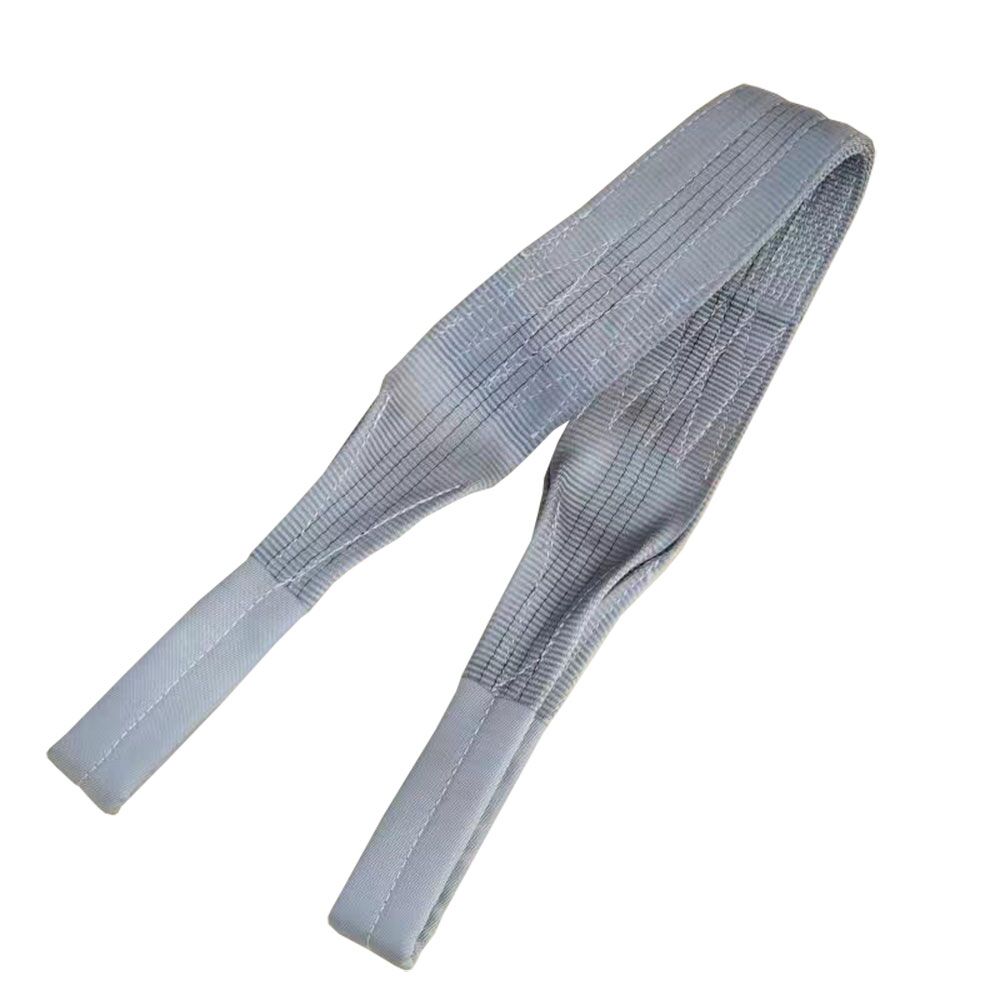

Polyester Eye-eye Webbing Slings

Specification

Additional information

Strap Material

High tenacity 100% Polyester

Safety factor

5:1,6:1,7:1,8:1 all available

Width

25-300MM

Length

LayeUL

One layer to four layeUL

Color

Color code

Characteristic

PU impregnated ,WLL & Length printed,Low elongation

Standard

ISO4878,  EN1492-1,  ASME B30.9,  AS1353

Certificate

CE/GS

Package

Single packed in shrinking foil or plastic with Certificate of Conformity

Customized

Logo Print on the webbing is available

Description

Polyester eye-eye webbing slings offer versatility and strength for a wide range of lifting and rigging applications. Made from high tenacity 100% polyester webbing, the side eyes come in different constructions, such as flat eyes, twisted eyes, and reversed eyes. Depending on the desired load capacity, one to four layers can be used. The lower elongation of the polyester fabric ensures the load is securely held without the risk of shock loading. Additionally, a customization service is also available for those with specific requirements.

1T WEBBING SLING Art No. Color Safety factor Width: mm M.B.S(kg)
1T polyester eye-eye webbing slings WS1T5F Purple 5:1 25 5T
WS1T6F Purple 6:1 25/38 6T
WS1T7F Purple 7:1 25/30/50/60 7T
WS1T8F Purple 8:1 50 8T
2T WEBBING SLING Art No. Color Safety factor Width: mm M.B.S(kg)
2T polyester eye-eye webbing slings WS2T5F Green 5:1 50 10T
WS2T6F Green 6:1 50 12T
WS2T7F Green 7:1 50/60 14T
WS2T8F Green 8:1 65 16T
3T WEBBING SLING Art No. Color Safety factor Width: mm M.B.S
3T polyester eye-eye webbing slings WS3T5F Yellow 5:1 75 15T
WS3T6F Yellow 6:1 75 18T
WS3T7F Yellow 7:1 75/90 21T
WS3T8F Yellow 8:1 95 24T
4T WEBBING SLING Art No. Color Safety factor Width: mm M.B.S
4T polyester eye-eye webbing slings WS4T5F Grey 5 100 20T
WS4T6F Grey 6 100 24T
WS4T7F Grey 7 100/120 28T
WS4T8F Grey 8 120 32T
5T WEBBING SLING Art No. Color Safety factor Width: mm M.B.S(kg)
5T polyester eye-eye webbing slings WS5T5F Red 5:1 125 25T
WS5T6F Red 6:1 125 30T
WS5T7F Red 7:1 125/150 35T
WS5T8F Red 8:1 150 40T
6T WEBBING SLING Art No. Color Safety factor Width: mm M.B.S(kg)
6T polyester eye-eye webbing slings WS6T5F Brown 5:1 150 30T
WS6T6F Brown 6:1 150 36T
WS6T7F Brown 7:1 150/180 42T
WS6T8F Brown 8:1 180 48T
8T WEBBING SLING Art No. Color Safety factor Width: mm M.B.S
8T polyester eye-eye webbing slings WS8T5F Blue 5:1 200 40T
WS8T6F Blue 6:1 200 48T
WS8T7F Blue 7:1 200/240 56T
WS8T8F Blue 8:1 240 64T
10T WEBBING SLING Art No. Color Safety factor Width: mm M.B.S
10T polyester eye-eye webbing slings WS10T5F Orange 5:1 250 50T
WS10T6F Orange 6:1 250 60T
WS10T7F Orange 7:1 250/300 70T
WS10T8F Orange 8:1 300 80T



EYE STYLES OF WEBBING SLING

Different slings with various soft eye formation styles can be found in the market today. The most popular ones are illustrated below for your reference.

EYE STYLES OF WEBBING SLINGS

Made using the best-quality synthetic fiber and advanced international weaving technology and equipment, slings manufactured by us can have a safety factor of 4:1, 5:1, 6:1, 7:1, or 8:1. We produce our slings in adherence to international standards when it comes to their color and capacity to bear the load. The loading range starts from 0.2 tonnes up to 100 tonnes.

If you are interested in purchasing these slings, contact us immediately!

POLYESTER SLINGS PROCESS
The polyester slings process is roughly divided into: 1. Purchasing raw materials 2. Warping 3. Ribbon 4. Testing 5. Dyeing 6. Cutting 7. Sewing 8. Testing 9. Packing 10. Loading
Raw Material
1. Raw Material
Warping
2. Warping
Webbing
3. Webbing
Testing
4. Testing
Dyeing
5. Dyeing
Cutting
6. Cutting
Sewing
7. Sewing
Examination
8. Examination
Packing
9. Packing
Loading
10. Loading
