Quick Link

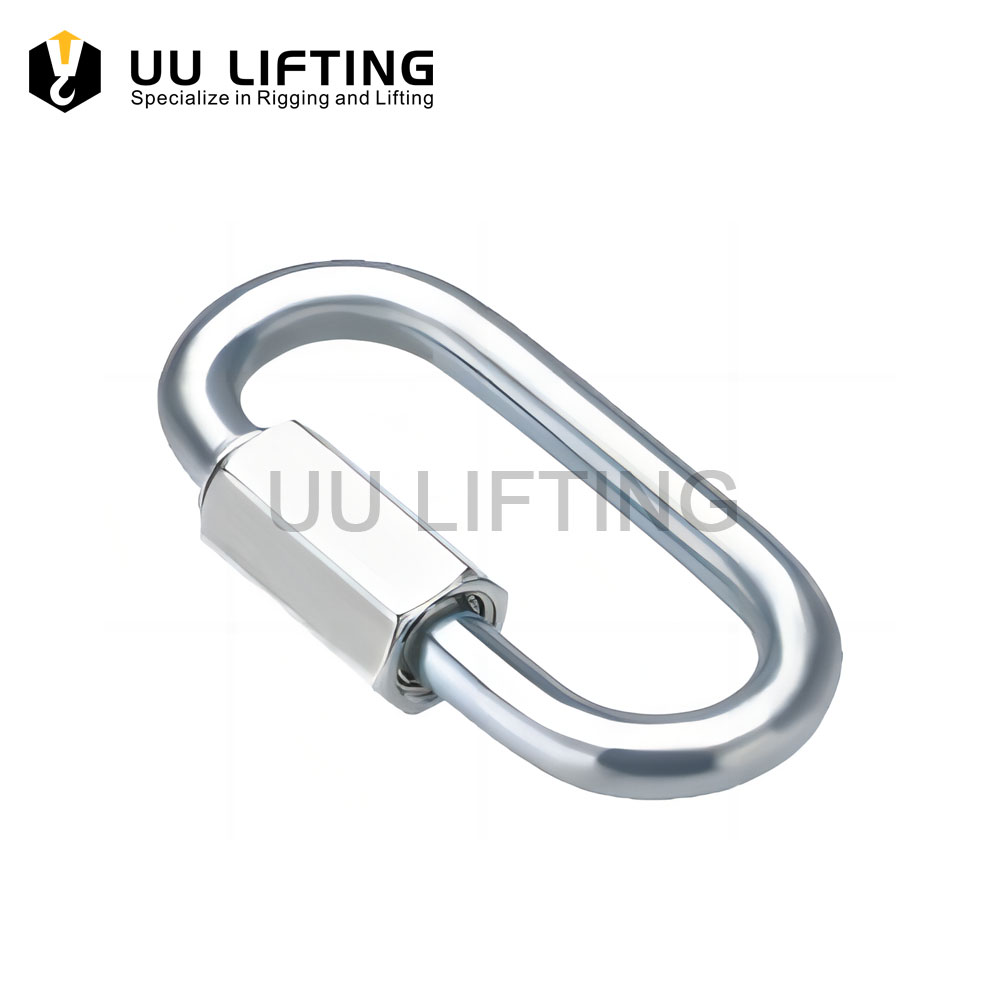

Quick links, also known as quick repair chain links, are favored for light-duty chain repair tasks. They are designed with threaded sides and a locking screw nut, simplifying the process of connecting two pieces of lower-grade chain or securing chain attachments. Additionally, a wide jaw quick link variant suits your needs.

Specification

Additional information

Material

High Tensile Steel

Sizes

From 3.5mm to 14mm

Surface

Electric Galvanized

Standard

EN Type

Application

Overhead Lifting, Lashing, Towing

Description

Quick Link Specifications:

MaterialHigh Tensile Steel
Surface finishZinc plated
SizesFrom 3.5mm to 14mm
ProcessingStamping
Applicationhiking, camping and general outdoor Not for overhead lifting
HS code732690

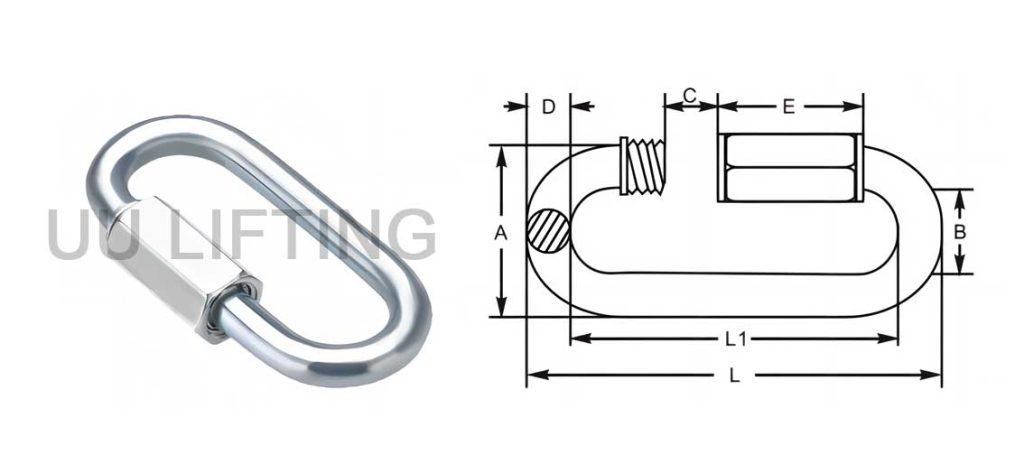

Quick Link Sizes:

Quick Link Sizes

Quick Link Sizes
SIZE
(mm)
Dimensions (mm)SWL
(lbs)
N.W.
kg/100pcs
ABCDLL1
3.516.69.453.536292200.8
419.311.553.941334401.2
522.512.86.34.848.541.76602
625.314.385.85846.88803.2
7301696.8685511005.2
833179.17.8745817607.1
9371911.58.88265190010.5
1040.52011.59.88969220013.2
1144221210.996.575265017
12462315.511.710581.5330021.6
1454.826.51613.912195610036.6
OUR FACTORY
Raw materials of our products are made of high-quality steel that meets the standards, and the raw materials are traceable. And multiple production lines and machines minimize lead times for rigging and lifting equipment.
RAW-MATERIAL
Raw Material
Forged-Plant
Forged
Cast Process
Cast
Chain Process
Chain Machine
Heat Treatment Plant
Heat Treatment
Powder Plastified Plant
Powder Plastified
Package Plant
Package
Warehouse Plant
Warehouse
MANUFACTURING PROCESSES
With eight automatic forging and semi-automatic forging line of up to 1600ton press machines and specialized drillng, tapping, heat treatment and inspection equipment. Strict and standardized production process ensures you receive perfect products.
MANUFACTURING-PROCESSES-shackle
QUALITY CONTROL
All rigging and lifting products are subjected to strict working tension and breaking the tension test. Complied with ISO9001 and CE certification. Our promise to you: Guaranteed safety at work for people and materials.
G70 Chain Test
Chain Test
Clamp Test
Clamp Test
Hook Test
Hook Test
Link Test
Link Test
Shackle Tension Test
Shackle Tension Test
Snap Hook Test
Snap Hook Test
