Description

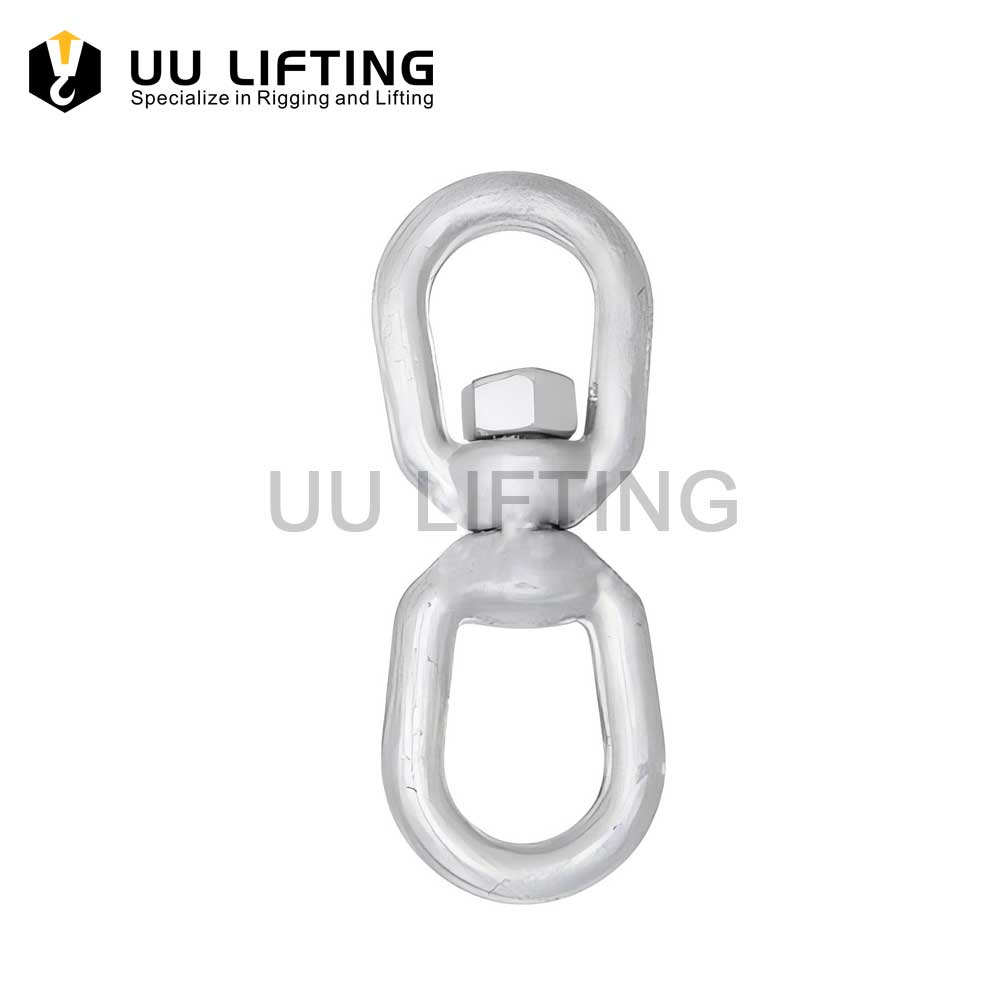

Regular G402 Swivel Hook

G402 Swivel Hook

Regular Swivels G-402, according to Federal Specification RR-C-271F.This chain swivel without bearing, it can’t intended to rotate under load. For load swivels, see ball bearing swivels. Eye-to-Eye Swivel, made by forged hot dipped galvanized steel, making them ideal for various marine and industrial rigging applications.Commonly used with mooring anchors, mooring buoys, fishing buoys and also to attach multiple lengths of anchor line or chain.Also available in: G-401 Chain Swivels, G-403 Jaw End Swivels.Hot Dip Galvanized, Forged Steel Construction.Meets performance requirements of Federal Specification RR-C-271 Type VII, Class 2.Intended for use as positioning devices and are not intended to rotate under load.DO NOT EXCEED THE WORKING LOAD LIMIT.G-402 Regular Swivel is made of forged steel quenched and tempered, the surface is hot-dip galvanized, and has good corrosion resistance, making it an ideal choice for various ship and industrial rigging applications. Size from 1/4’’ to 1-1/2’’.

G402 Swivel Hook finished is hot dip galvanized – quenched & tempered.So it’s very strong.And it meet or exceed all requirements of ASME B30.26 including identification, ductility, design factor, proof load and temperature requirements. Importantly, G402 Swivel Eye Hooks meet other critical performance requirements including fatigue life, impact properties and material traceability not addressed by ASME B30.26
Positioning device – Not intended to rotate under load.

Note: The swivels are positioning devices and are not intended to rotate under load. For load swivels, see ball bearing swivels.

And hot-dip galvanized g403 swivel hook also can be availble.If you are interested in our products,pls contact with us now.



Regular Swivels G-402
Regular Swivels G-402



Size Working Load Limit Weight Each Dimensions(in)
(in.) (lbs) (lbs) A B C D J M R S T
1/4 850 0.21 1.25 0.69 0.75 1.06 0.69 0.31 2.94 1.69 3.44
5/16 1250 0.39 1.63 0.81 1.00 1.25 0.81 0.38 3.56 2.06 4.19
3/8 2500 0.75 2.00 0.94 1.25 1.50 1.00 0.50 4.31 2.50 5.06
1/2 3600 1.43 2.50 1.31 1.50 2.00 1.31 0.63 5.44 3.19 6.44
5/8 5200 2.50 3.00 1.56 1.75 2.38 1.50 0.75 6.56 3.88 7.81
3/4 7200 4.13 3.50 1.75 2.00 2.63 1.88 0.88 7.19 4.31 8.69
7/8 10000 6.25 4.00 2.06 2.25 3.06 2.13 1.00 8.38 5.00 10.13
1 12500 9.00 4.50 2.31 2.50 3.50 2.38 1.13 9.63 5.75 11.63
1-1/4 18000 16.37 5.63 2.69 3.13 3.69 3.00 1.38 11.13 6.75 13.36
1-1/2 45200 49.06 7.00 4.19 4.00 4.19 4.00 2.25 17.13 10.00 20.13



OUR FACTORY
Raw materials of our products are made of high-quality steel that meets the standards, and the raw materials are traceable. And multiple production lines and machines minimize lead times for rigging and lifting equipment.
RAW-MATERIAL
Raw Material
Forged-Plant
Forged
Cast Process
Cast
Chain Process
Chain Machine
Heat Treatment Plant
Heat Treatment
Powder Plastified Plant
Powder Plastified
Package Plant
Package
Warehouse Plant
Warehouse
MANUFACTURING PROCESSES
With eight automatic forging and semi-automatic forging line of up to 1600ton press machines and specialized drillng, tapping, heat treatment and inspection equipment. Strict and standardized production process ensures you receive perfect products.
MANUFACTURING-PROCESSES-shackle
QUALITY CONTROL
All rigging and lifting products are subjected to strict working tension and breaking the tension test. Complied with ISO9001 and CE certification. Our promise to you: Guaranteed safety at work for people and materials.
G70 Chain Test
Chain Test
Clamp Test
Clamp Test
Hook Test
Hook Test
Link Test
Link Test
Shackle Tension Test
Shackle Tension Test
Snap Hook Test
Snap Hook Test
