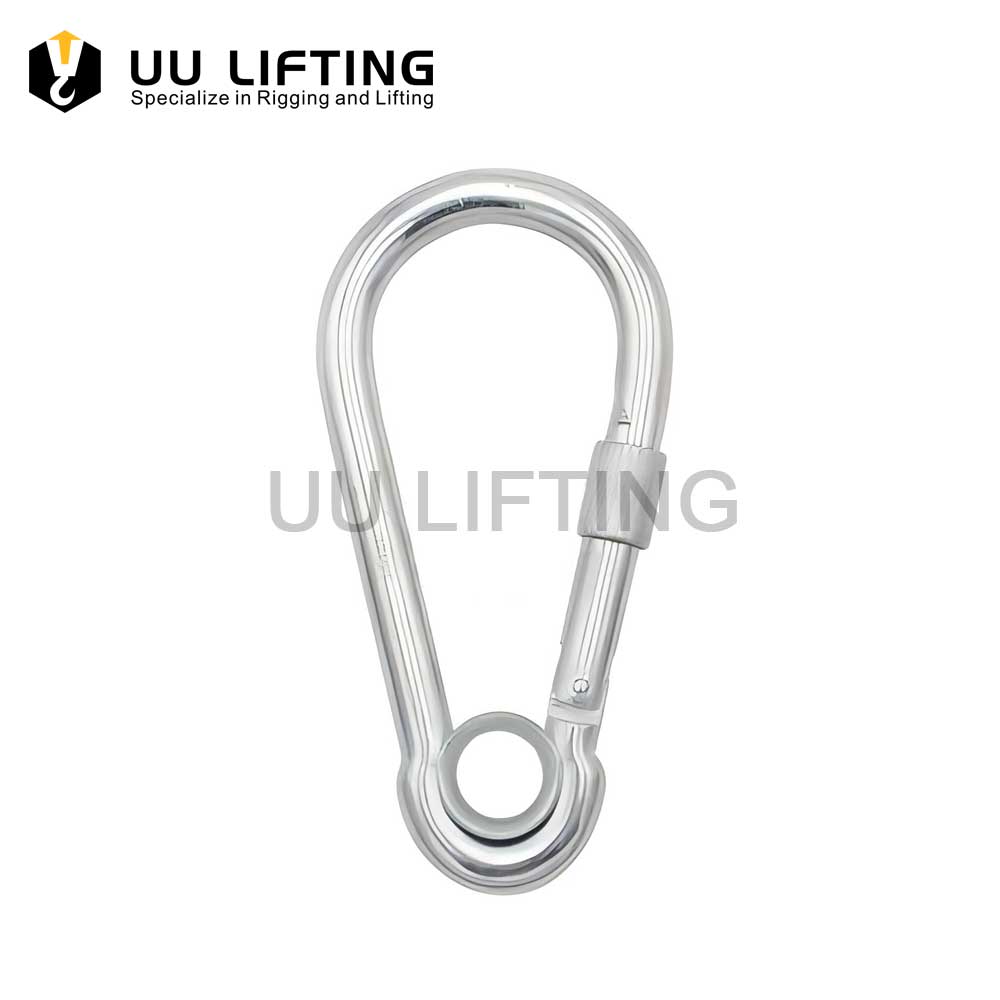

Snap Hook with Eyelet and Screw

Snap Hook with Eyelet and Screw

Categories ,

The snap hook with an eyelet and screw is a self-closing, self-locking connector with a spring. It can be used to attach a rope, cord, or other line to a target. The screw nut adds security to keep the snap hook closed, and the eyelet is removable.

Specification

Additional information

Sizes

From 5X50mm to 14X180mm
Application

Marine, Sports, Climbing, Architectural, Industrial, Security
ASK FOR A QUOTE

Description

Snap Hook with Eyelet and Screw Specifications:

MOQ1 Pallet, 1 Ton or 3000USD
SizeFrom 5X50mm to 14X180mm

Snap Hook with Eyelet and Screw Sizes：

Snap Hook with Eyelet and Screw Sizes

Snap Hook with Eyelet and Screw Sizes
Size (mm)SWL (lbs)Dimensions (mm)Weight (kg/100pcs)
ABCDL
5X50150.0025.005.006.005.0050.002.10
6X60250.0030.005.007.006.0060.003.10
7X70320.0035.007.007.507.0070.005.04
8X80400.0040.0010.008.508.0080.006.90
9X90500.0045.0010.009.009.0090.0010.60
10X100650.0050.0013.0010.0010.00100.0013.70
11X120700.0057.0013.0016.0011.00120.0020.20
12X140800.0067.0015.0018.0012.00140.0027.20
13X1601200.0074.0017.0023.0013.00160.0041.40
14X1801600.0086.0017.0035.0014.00180.0045.50
OUR FACTORY
Raw materials of our products are made of high-quality steel that meets the standards, and the raw materials are traceable. And multiple production lines and machines minimize lead times for rigging and lifting equipment.
RAW-MATERIAL
Raw Material
Forged-Plant
Forged
Cast Process
Cast
Chain Process
Chain Machine
Heat Treatment Plant
Heat Treatment
Powder Plastified Plant
Powder Plastified
Package Plant
Package
Warehouse Plant
Warehouse
MANUFACTURING PROCESSES
With eight automatic forging and semi-automatic forging line of up to 1600ton press machines and specialized drillng, tapping, heat treatment and inspection equipment. Strict and standardized production process ensures you receive perfect products.
MANUFACTURING-PROCESSES-shackle
QUALITY CONTROL
All rigging and lifting products are subjected to strict working tension and breaking the tension test. Complied with ISO9001 and CE certification. Our promise to you: Guaranteed safety at work for people and materials.
G70 Chain Test
Chain Test
Clamp Test
Clamp Test
Hook Test
Hook Test
Link Test
Link Test
Shackle Tension Test
Shackle Tension Test
Snap Hook Test
Snap Hook Test
