Stainless Steel Bow Shackle with No Snag Pin

Stainless Steel Bow Shackle with No Snag Pin Specifications:

MOQ	1 Pallet, 1 Ton or 3000USD
Material	Grade: 316 Stainless Steel
Surface Finish	High Polished Finish
Sizes	From 1/4″ to 1″
Technique Procedure	Free Forging

Stainless Steel Bow Shackle with No Snag Pin Sizes:

What is a stainless steel bow shackle with a no-snag pin?

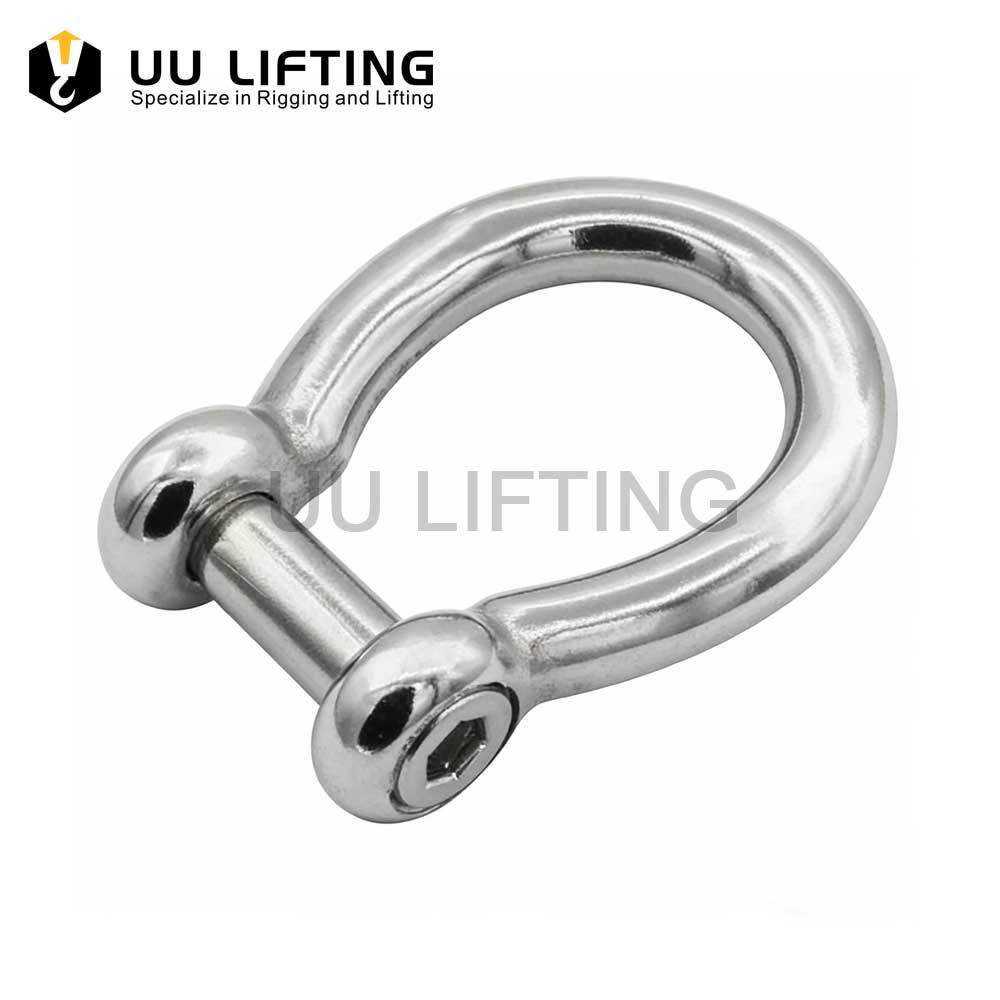

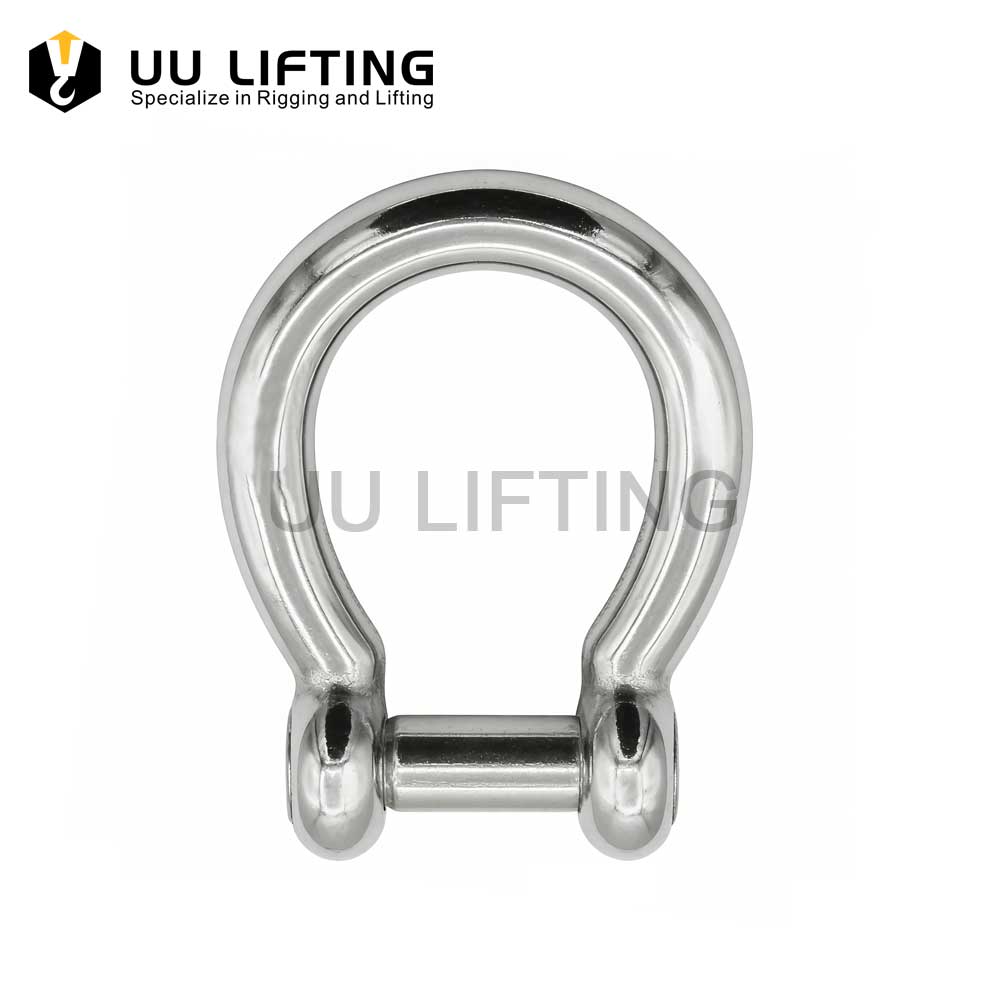

A stainless steel bow shackle with a no-snag pin is a specialized connector. It features a pin that sits flush with the shackle body. This prevents ropes or nets from catching, making it ideal for marine and lifting applications where snags are a concern.

Why is the ‘No-Snag’ Pin Design So Important?

The no-snag pin is essential because its flush design prevents accidental entanglement of ropes, slings, or nets. This enhances safety by avoiding sudden load jerks. It also protects your equipment from damage, saving time and money.

Key Advantages of No-Snag Pins

Feature	Standard Screw Pin	No-Snag Pin
Profile	Protruding head	Flush or countersunk
Snag Risk	High	Very Low
Ideal Use	General lifting	Marine, fishing, tight spaces
Operational Impact	Can cause delays and damage	Ensures smooth, fast operation

How Does Stainless Steel Benefit This Type of Shackle?

Stainless steel provides excellent corrosion resistance. This is vital for a shackle used in marine or outdoor environments. It ensures the shackle maintains its strength over time, even when exposed to saltwater or rain, preventing failure.

Choosing the Right Grade

Different environments need different solutions. We help our customers choose the right material.

Material	Corrosion Resistance	Strength	Cost	Best For
Stainless Steel (316)	Excellent	High	Higher	Marine, Chemical Plants
Stainless Steel (304)	Good	High	Medium	General Outdoor, Architectural
Galvanized Steel	Fair	Very High	Lower	Construction, Industrial

Which Applications Are Best Suited to a No-Snag Bow Shackle?

No-snag stainless steel bow shackles are best for marine applications, fishing, aquaculture, and stage rigging. The no-snag feature is invaluable anywhere lines or nets are dragged over the shackle, preventing dangerous entanglements.

Application Suitability

Application	Why a No-Snag Shackle is Ideal
Commercial Fishing	Prevents tearing expensive trawling nets.
Yachting & Sailing	Ensures smooth passage of anchor and mooring lines.
Aquaculture	Secures cages and nets without causing damage.
Complex Lifting	Reduces the risk of sling entanglement in multi-leg lifts.
Stage & Theatre Rigging	Allows cables and curtains to move freely and without catching.
