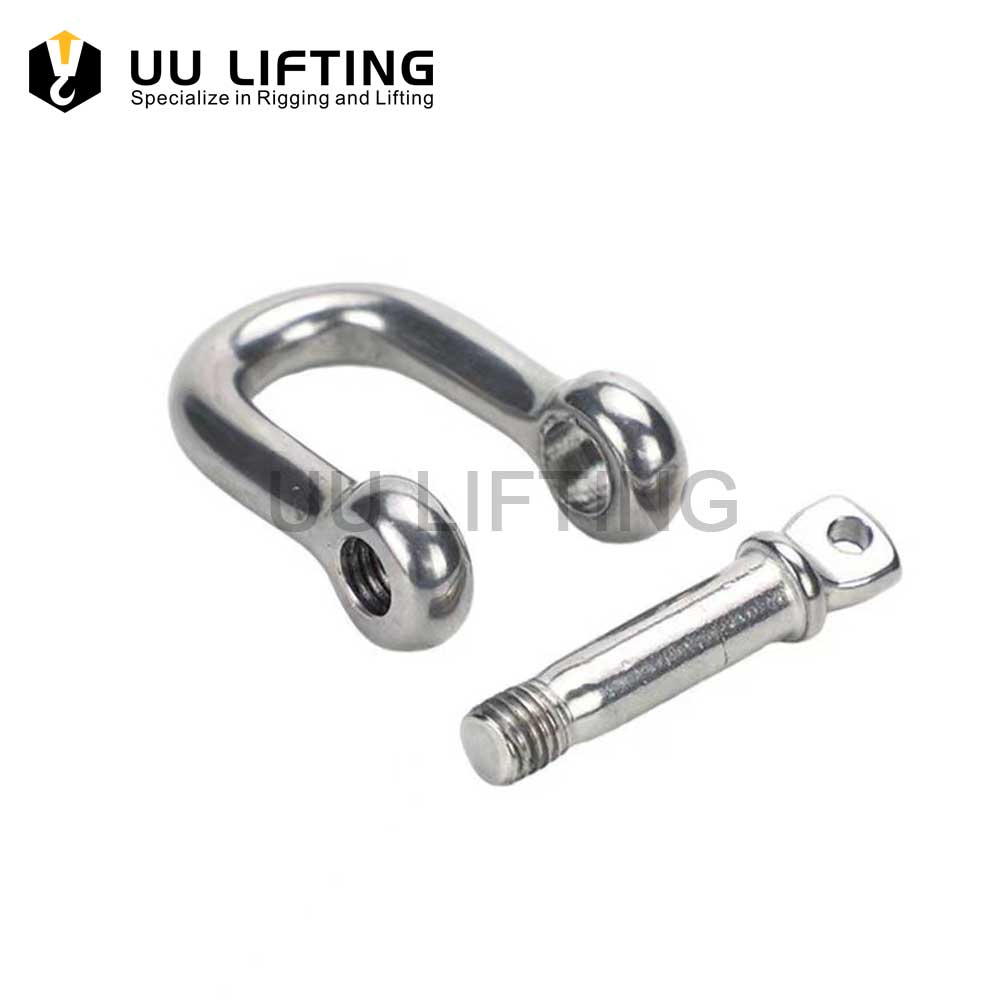

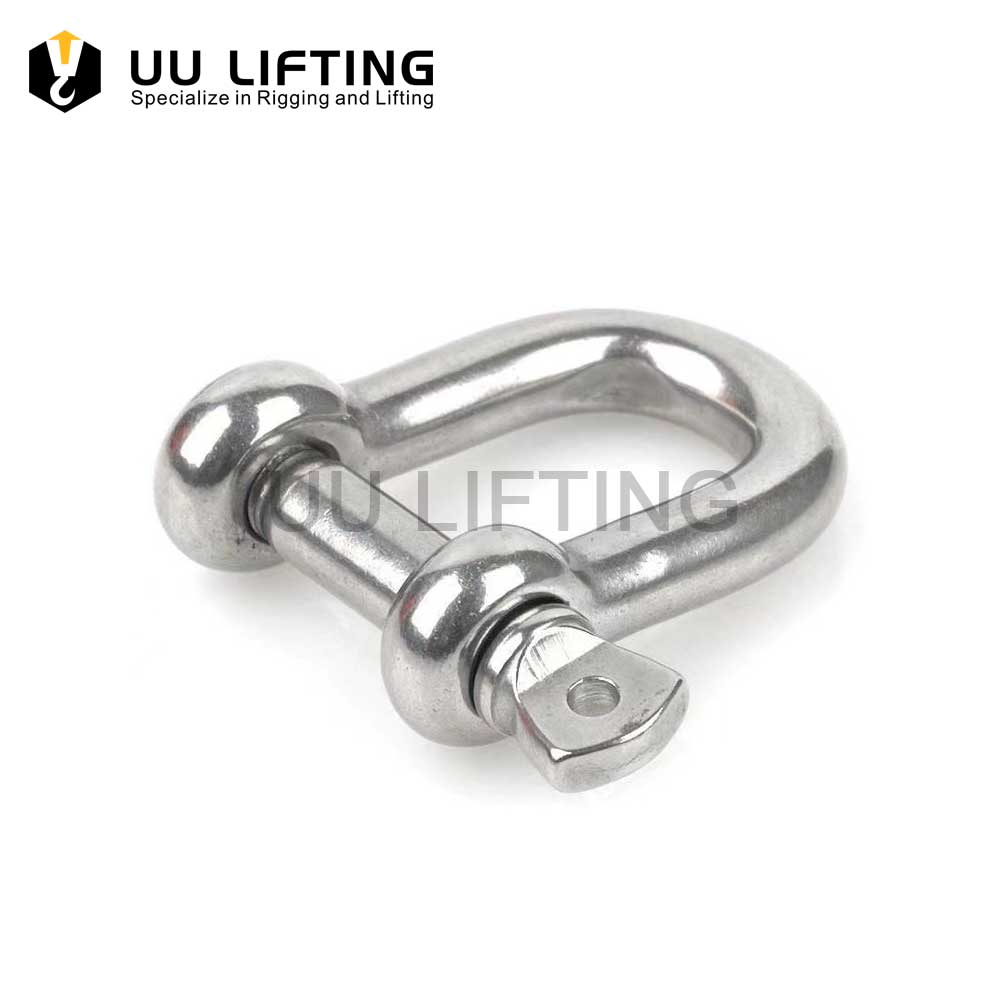

EU/JIS Stainless Steel Dee Shackle

Categories Rigging Hardware, Shackles, Stainless Steel Hardware Tags D Shackle, Screw Pin Shackle, Stainless Steel D Shackle, Stainless Steel Shackle

D shackles, essential in numerous industries, play a pivotal role in lifting, rigging, and linking ropes and chains. Their widespread use as a standard in industrial equipment underscores their versatility and reliability.

Specification

Additional information

Size	From 4mm shackle to 38mm shackle
Surface Treatment	High polished finish
Application	Lifting, Lashing, Towing
Production Process	Free forging

DOWNLOAD

File Name

Shackles Sizes – UU LIFTING

How to Check Shackle and Scrap Standards and How to Use Them – UU LIFTING

Description

EU/JIS Stainless Steel Dee Shackle Specifications:

MOQ	1 Pallet, 1 Ton or 3000USD
Component	AISI 316 / AISI 304
Surface finish	High polished finish
Sizes	From 4mm to 38mm
Technique Procedure	Free forging
Safety Factor	2 : 1
HS code	732690

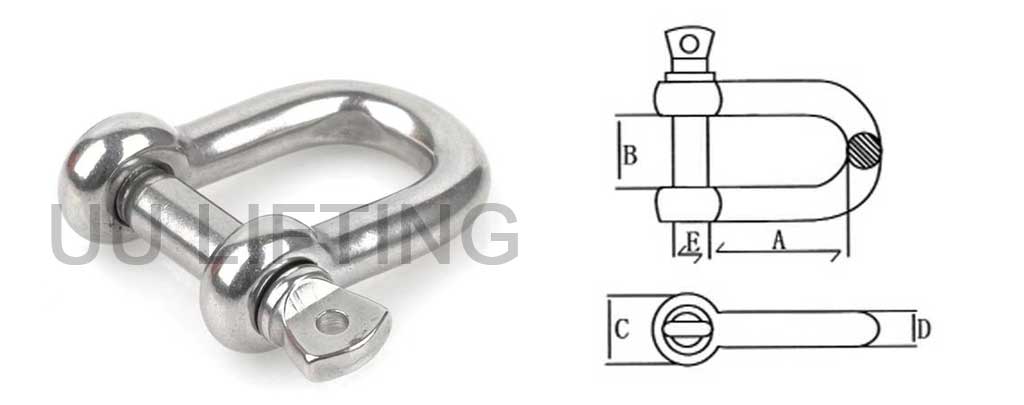

EU/JIS Stainless Steel Dee Shackle Sizes：

EU/JIS Stainless Steel Dee Shackle Sizes
Size	A (mm)		B (mm)		C (mm)		D (mm)		E (mm)		Work Load Limit (kg)
mm	EU	JIS	EU	JIS	EU	JIS	EU	JIS	EU	JIS	EU	JIS
4	16	14	8	8	8	8	4	4	4	4	80	50
5	20	16	10	10	10	10	5	5	5	5	100	80
6	24	22	12	12	12	12	6	6	6	6	200	100
8	32	27	16	16	16	16	8	8	8	8	320	200
10	40	31	20	20	20	20	10	10	10	10	520	320
12	48	40	24	24	24	24	12	12	12	12	800	520
14	56	46	28	28	28	28	14	14	14	14	1100	700
16	64	52	32	32	32	32	16	16	16	6	1500	800
18	72	58	36	36	36	36	18	18	18	18	2100	990
20	76	64	40	40	40	40	20	20	20	20	3000	1100
22	88	75	44	44	44	44	22	22	22	22	3500	1500
25	100	83	50	50	50	50	25	25	25	25	5000	2100
28	112	96	56	56	56	56	28	28	28	28	7000	3000
32	128	114	64	64	64	64	32	32	32	32	8000	3500
36	144	116	72	72	72	72	36	36	36	36	——	4600
38	52	152	76	76	76	76	38	38	38	38	——	5000

What is an EU/JIS Stainless Steel Dee Shackle?

An EU/JIS Stainless Steel Dee Shackle is a D-shaped connecting device used primarily in rigging and lifting applications. The designation “EU/JIS” indicates that the shackle is manufactured in compliance with European Union and/or Japanese Industrial Standards. These shackles are typically crafted from high-quality stainless steel grades, such as AISI 304 or AISI 316, which are selected for their excellent strength and resistance to corrosion. They are available in various sizes, commonly ranging from 4mm to 38mm, and are often produced through a free forging process to enhance their structural integrity and load-bearing capacity. These shackles generally feature a highly polished finish.

Advantages of EU/JIS Stainless Steel Dee Shackles

EU/JIS Stainless Steel Dee Shackles offer several key advantages that make them highly sought after for use in various industries, including marine, construction, and general industrial applications:

Corrosion Resistance: Stainless steel is inherently resistant to rust and corrosion. This makes these shackles ideal for use in harsh environmental conditions, particularly when exposed to moisture, saltwater, or chemicals.
Strength and Durability: Stainless steel shackles are renowned for their exceptional strength and durability. They are capable of withstanding heavy loads and significant stress without compromising their structural integrity, which makes them suitable for many heavy-duty applications.
Longevity: Due to their excellent corrosion resistance and inherent strength, stainless steel shackles typically have a longer service life compared to shackles made from other materials. This long-term reliability often makes them a more cost-effective choice over time.
Low Maintenance: The natural resilience of stainless steel to rust and corrosion means that these shackles require less maintenance. This can save time and resources that would otherwise be spent on upkeep.
Aesthetic Appeal: Stainless steel shackles often have a highly polished finish, which gives them a clean, smooth, and professional appearance.
