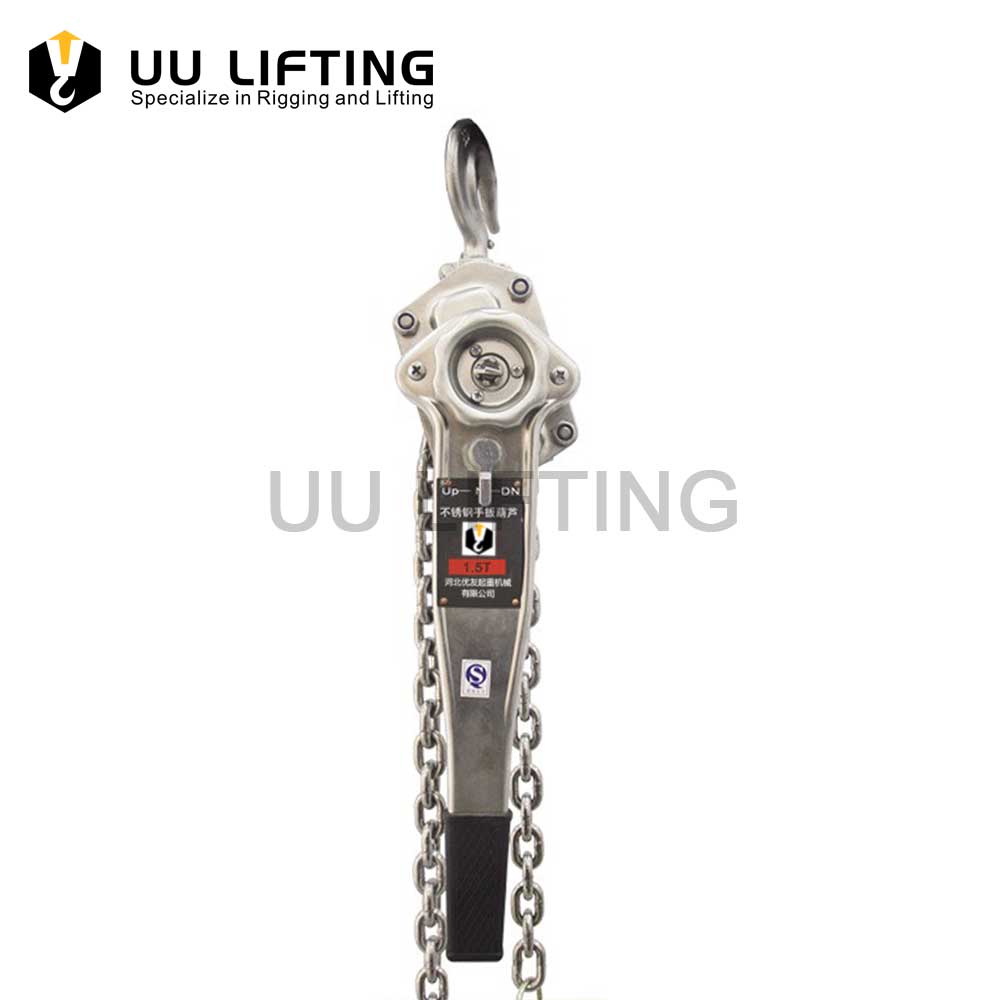

Stainless Steel Lever Block HSS-Y Type

Stainless Steel Lever Block HSS-Y Type with high safety,reliability, easy maintenance, high mechanical efficiency, light weight & easy manual handling.

Specification

Additional information

Rated Load

from 0.5T to 9T

Material

304 stainless steel, anti-corrosion, anti-magnetic, acid and alkali resistant, strong wear resistance, effectively protects the internal structure and operates stably

Features

small size, light weight, easy to carry

Description

Stainless Steel Lever Block HSS-Y Type Specifications:

Stainless Steel Lever Block HSS-Y Type Specifications
ModelHSS-Y0.5HSS-Y1.5HSS-Y3HSS-Y6HSS-Y9
Rated Load(T)0.751.5369
Lifting Height(m)1.51.51.51.51
Test Load(KN)112237.575135
Max Hand Force(N)140220240260360
Dia of Load Chain(mm)6681010
Falls of Chain12244
Net Weight(kg)4.75.79.81927
The Weight Per Meter Lifting(kg)0.551.11.533.6
OUR FACTORY
Raw materials of our products are made of high-quality steel that meets the standards, and the raw materials are traceable. And multiple production lines and machines minimize lead times for rigging and lifting equipment.
RAW-MATERIAL
Raw Material
Forged-Plant
Forged
Cast Process
Cast
Chain Process
Chain Machine
Heat Treatment Plant
Heat Treatment
Powder Plastified Plant
Powder Plastified
Package Plant
Package
Warehouse Plant
Warehouse
MANUFACTURING PROCESSES
With eight automatic forging and semi-automatic forging line of up to 1600ton press machines and specialized drillng, tapping, heat treatment and inspection equipment. Strict and standardized production process ensures you receive perfect products.
MANUFACTURING-PROCESSES-shackle
QUALITY CONTROL
All rigging and lifting products are subjected to strict working tension and breaking the tension test. Complied with ISO9001 and CE certification. Our promise to you: Guaranteed safety at work for people and materials.
