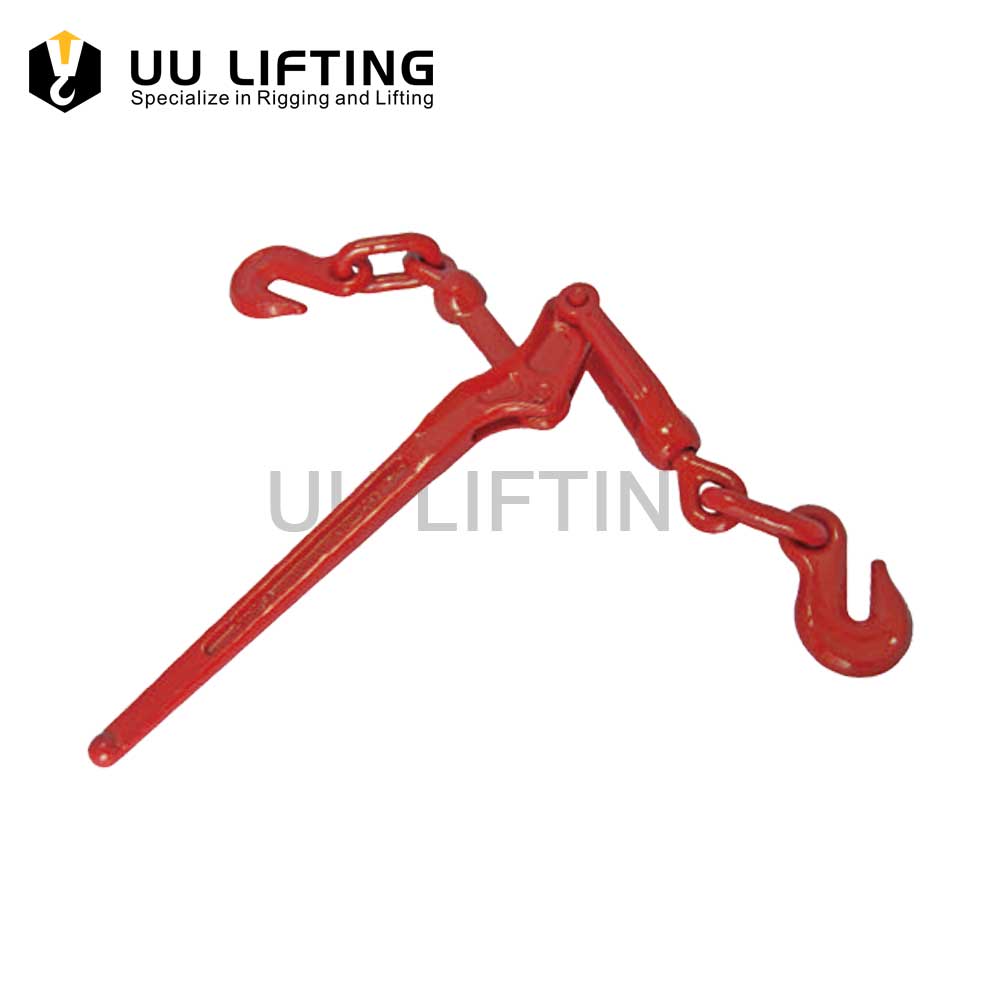

Standard Lever Type Load Binder

Categories Load Binders, Rigging Hardware

Specification

Additional information

Material	High Tensile Steel
Surface finish	Powder Coating
Sizes	From 1/4″-5/16″ to 5/16″-3/8″
Technique Procedure	Drop Forged, Machining, Quenched and Tempered

Description

Technical Specialities：

Made from quenched and tempered alloyed steel.
Extra heavy construction at the leverage point is needed to prevent spreading the heel of binder toggles away from the load, permitting easy release.
Ball and socket swivel joints at hook assemblies permit a straight-line pull.
Free 360-degree swivel hooks for easier handling.

Standard Lever Type Load Binder Specifications:

MOQ	1 Pallet, 1 Ton or 3000USD
Material	Alloy Steel
Surface finish	Hot Dipped Galvanized/Powder coated
Sizes	From 1/4″-5/16″ to 5/16″-3/8″
Technique Procedure	Drop Forged, Machining, Quenched and Tempered
HS code	732690

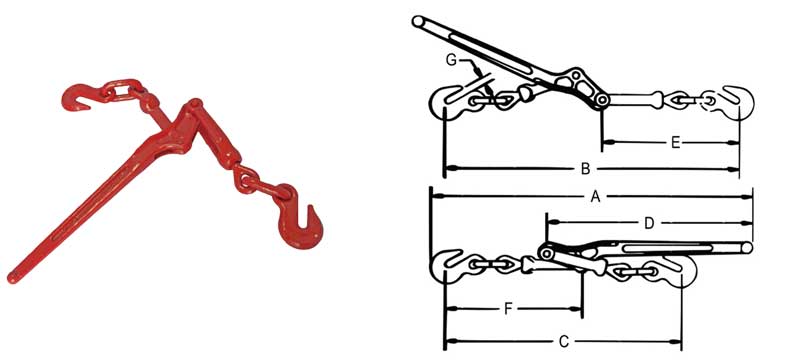

Standard Lever Type Load Binder Sizes：

Standard Lever Type Load Binder Sizes
Min-Max Chain Size (in.)	Working Load Limit (lbs.)	Proof Load (lbs.)	Minimum Ultmate Strength (lbs.)	Weight Each (lbs.)	Handle Length (in.)	Dimensions (in.)
Min-Max Chain Size (in.)	Working Load Limit (lbs.)	Proof Load (lbs.)	Minimum Ultmate Strength (lbs.)	Weight Each (lbs.)	Handle Length (in.)	A	B	C	D	E	F	G
1/4″-5/16″	2200	4400	7800	3.52	11.57	18.11	17.32	14.17	11.18	8.46	6.30	0.35
5/16″-3/8″	5400	10800	19000	7.80	16.00	24.13	22.13	17.88	16.00	10.38	10.38	0.47
3/8″-1/2″	9200	18400	33000	12.15	18.50	27.81	25.75	21.25	18.69	12.00	12.00	0.63
1/2″-5/8″	13000	26000	46000	18.70	21.00	31.25	29.75	25.00	21.00	14.63	13.75	0.72
5/16″-3/8″	6600	13200	26000	8.00	16.00	24.13	22.13	17.88	16.00	10.38	10.38	0.47

OUR FACTORY

Raw materials of our products are made of high-quality steel that meets the standards, and the raw materials are traceable. And multiple production lines and machines minimize lead times for rigging and lifting equipment.

MANUFACTURING PROCESSES

With eight automatic forging and semi-automatic forging line of up to 1600ton press machines and specialized drillng, tapping, heat treatment and inspection equipment. Strict and standardized production process ensures you receive perfect products.

QUALITY CONTROL

All rigging and lifting products are subjected to strict working tension and breaking the tension test. Complied with ISO9001 and CE certification. Our promise to you: Guaranteed safety at work for people and materials.
