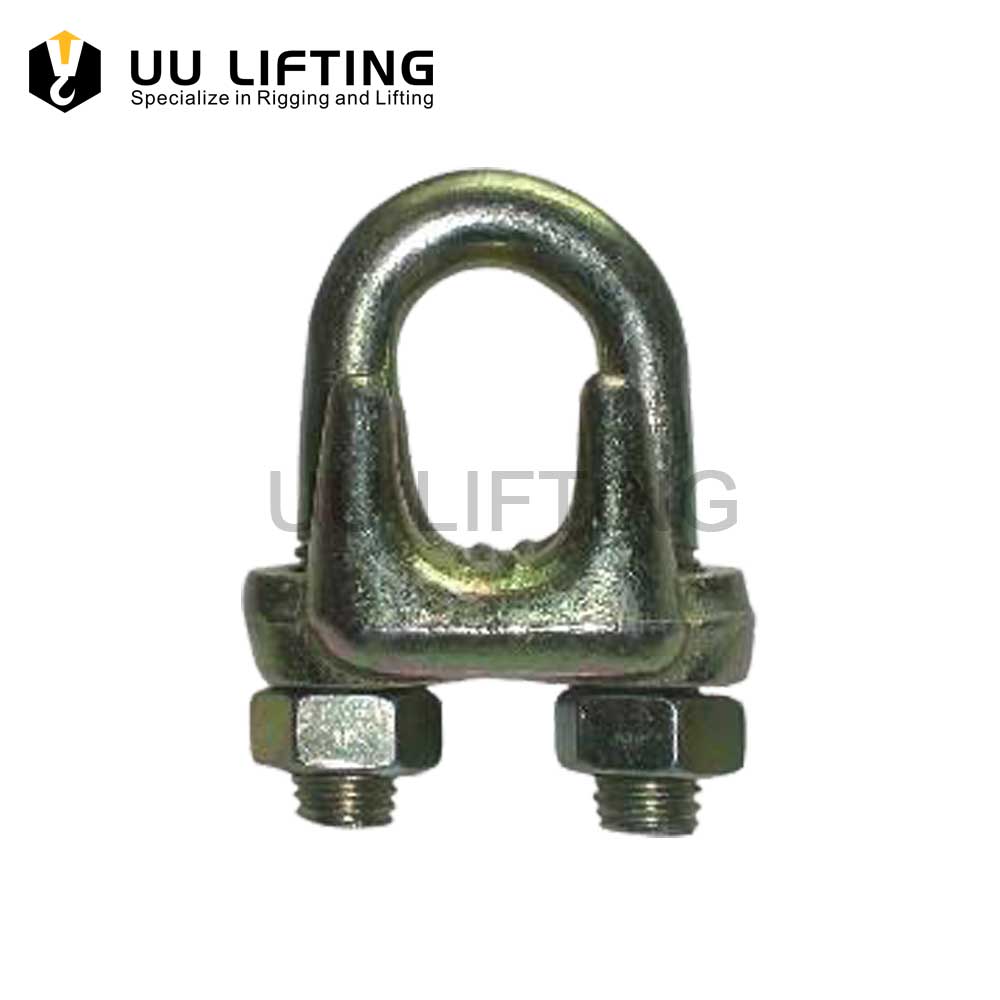

Type A Malleable Wire Rope Clips

Type A Malleable Wire Rope Clips are a type of hardware used in various lifting, rigging, and load-securing applications. They are designed to clamp down on wire rope, securing the ends or forming loops for attachments.

Specification

Additional information

MOQ

1 Pallet, 1 Ton or 3000USD

Material

Malleable Iron

Surface finish

Wire rope clip saddle, U-bolt and nuts are Electro-galvanized(Zinc Plated)

Sizes

From 6mm to 50mm

Technique Procedure

Cast

Description

Type A Malleable Wire Rope Clip Specifications:

MOQ1 Pallet, 1 Ton or 3000USD
MaterialMalleable Iron
Surface finishWire rope clip saddle, U-bolt and nuts are Electro-galvanized(Zinc Plated)
SizesFrom 6mm to 50mm
Technique ProcedureCast
StandardEN BS 13411
HS code732690

Type A Malleable Wire Rope Clip Sizes:

Type A Malleable Wire Rope Clip Sizes

Type A Malleable Wire Rope Clips Sizes
Diameter Rope(mm.)Weight Each (Kg/pc)Dimensions(mm.)
ABCDEFG
60.02122.514175121424.8
80.0372817216151630.66
100.0853821288192037.95
120.1645273410242547.55
150.2552324012293057.15
200.43623846.514363671.73
220.6694351.516403978.73
250.8276505618434490.4
281.1285576220484896.9
321.5936167225551110.4
402.541117381246462122.5
453.431238688277270139.5
504.561359595308088156



Type A Malleable Wire Rope Clips

Type A Malleable Wire Rope Clips are hardware used in various lifting, rigging, and load-securing applications. They are designed to clamp on wire rope, securing the ends or forming attachment loops. The “Type A” designation typically refers to their specific design and material – malleable iron. This type of clip is known for its ease of use and installation. However, it’s important to note that while malleable wire rope clips are suitable for light-duty applications, they are not recommended for critical, heavy-load, or overhead lifting tasks due to their relatively lower strength than forged clips.
