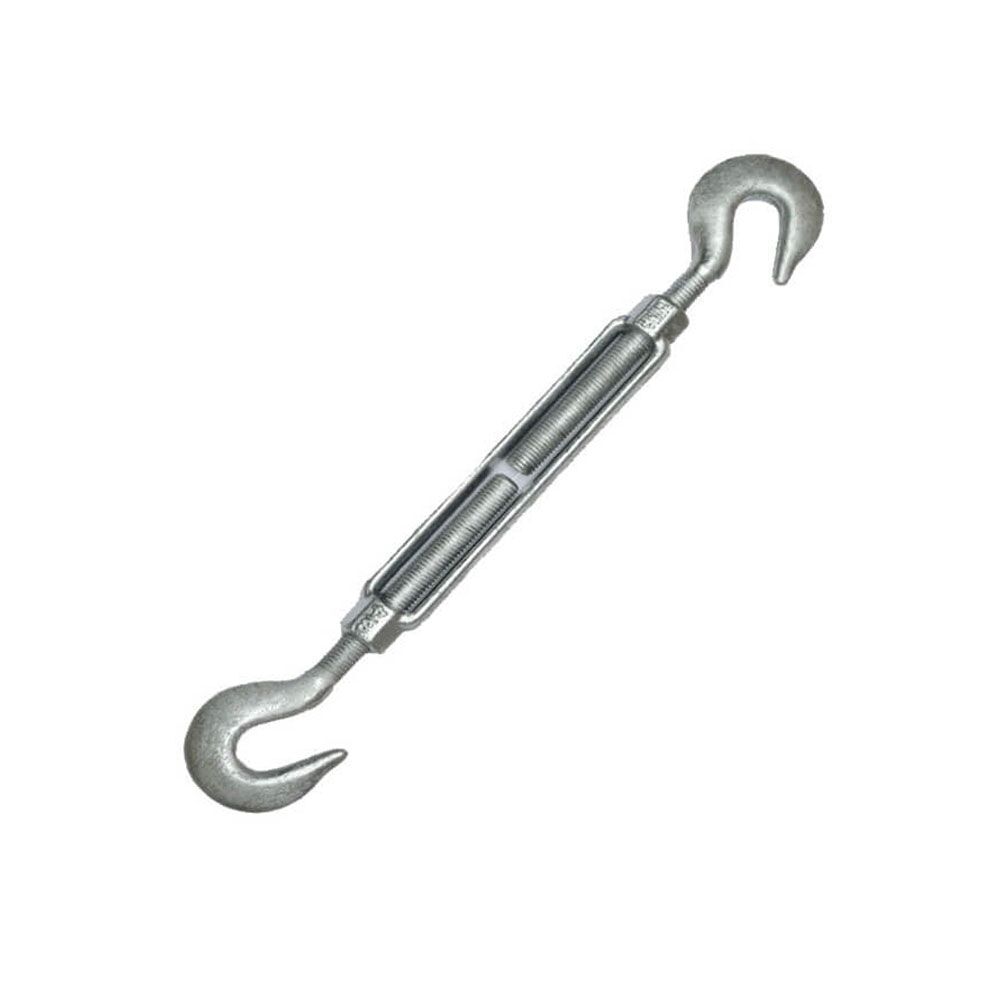

US Type Drop Forged Hook And Hook Turnbuckle

US Type Drop Forged Hook and Hook Turnbuckles are versatile and durable tools with many applications. Whether you need to secure heavy loads, adjust tension in cables or ropes, or provide support in various industries, these turnbuckles are designed to meet your needs.

Specification

Additional information

Standard

US Type

Material

Carbon Steel

Size

From 1/4”x4" to 1-1/2″x24"

Surface Treatment

Hot dip galvanized, Electro Galvanized

Production Process

Drop forged

Application

Overhead Lifting, Lashing, Towing

Description

US Type Drop Forged Hook And Hook Turnbuckle Specifications:

MOQ1 Pallet, 1 Ton or 3000USD
MaterialCarbon Steel
Surface FinishHot dip galvanized, Electro Galvanized
SizesFrom 1/4”x4" to 1-1/2″x24"
Technique ProcedureDrop forged
Safety Factor5 : 1 or N/A
HS code732690

US Type Drop Forged Hook And Hook Turnbuckle Sizes:

US Type Drop Forged Hook And Hook Turnbuckle Sizes

US Type Drop Forged Hook And Hook Turnbuckle Sizes
Size (in)WLL (lbs)Weight (lbs)Dimensions (in)
AEJKMNDFBB
1/4x44000.330.251.5911.127.1211.947.940.451.274.00
5/16x4-1/27000.520.311.9412.818.3113.819.310.501.504.50
3/8x610000.830.382.3016.5010.5017.7211.720.561.776.00
1/2x615001.880.502.9418.8211.8220.3813.380.662.286.00
1/2x1215002.770.502.9430.8217.8232.3819.380.662.2812.00
5/8x622503.210.633.6920.5013.2522.5015.250.902.816.00
5/8x1222504.580.633.6932.5019.2534.5021.250.902.8112.00
3/4x630004.200.754.5222.3814.8824.7817.280.983.336.00
3/4x1230006.920.754.5234.3820.8836.7823.280.983.3312.00
3/4x1830008.650.754.5246.3826.8848.7829.280.983.3318.00
7/8x1240009.850.885.1936.0022.2538.7525.001.133.7812.00
1x12500011.931.005.8437.6323.6340.6926.691.254.2512.00
1x18500014.001.005.8449.6329.6352.6932.691.254.2518.00
1x24500017.251.005.8461.6335.6364.6938.691.254.2524.00
1-1/4x12650020.581.257.2240.4425.9444.0629.561.505.1312.00
1-1/4x18650023.001.257.2252.4431.9456.0635.561.505.1318.00
1-1/4x24650027.001.257.2264.4437.9468.0641.561.505.1324.00
1-1/2x12750027.501.508.3443.9428.9447.4432.441.885.7512.00
1-1/2x18750031.001.508.3455.9634.9459.4438.441.885.7518.00
1-1/2x24750037.501.508.3467.9440.9471.4444.441.885.7524.00



Key features:

How to properly install and use US Type Drop Forged Hook and Hook Turnbuckles.

Proper installation and use of US Type Drop Forged Hook and Hook Turnbuckles are crucial to ensure their effectiveness and safety. To begin, selecting the appropriate turnbuckle size and material for your specific application is important. Once you have the correct turnbuckle, follow these steps for proper installation:

  1. Inspect the turnbuckle for any damage or defects before installation. If any issues are found, do not use the turnbuckle and replace it with a new one.
  2. Determine the correct placement of the turnbuckle in your application. Ensure that it is positioned in a way that allows for proper tension adjustment and load support.
  3. Attach one end of the turnbuckle to the anchor point or fixed object using the hook. Ensure the hook is securely fastened and cannot come loose during use.
  4. Attach the other end of the turnbuckle to the load or tensioned object using the second hook. Again, ensure that the hook is securely fastened.
  5. Use a wrench or other appropriate tool to turn the body of the turnbuckle, adjusting the tension as needed. Follow the manufacturer’s guidelines for the maximum load capacity and recommended tension levels.
  6. Regularly inspect the turnbuckle during use to ensure it remains secure and in good condition. If any issues arise, discontinue use and replace the turnbuckle.

By following these installation and usage guidelines, you can maximize the benefits and functionality of US Type Drop Forged Hook and Hook Turnbuckles in your various applications. Remember to prioritize safety and regularly maintain and inspect your turnbuckles for optimal performance.
