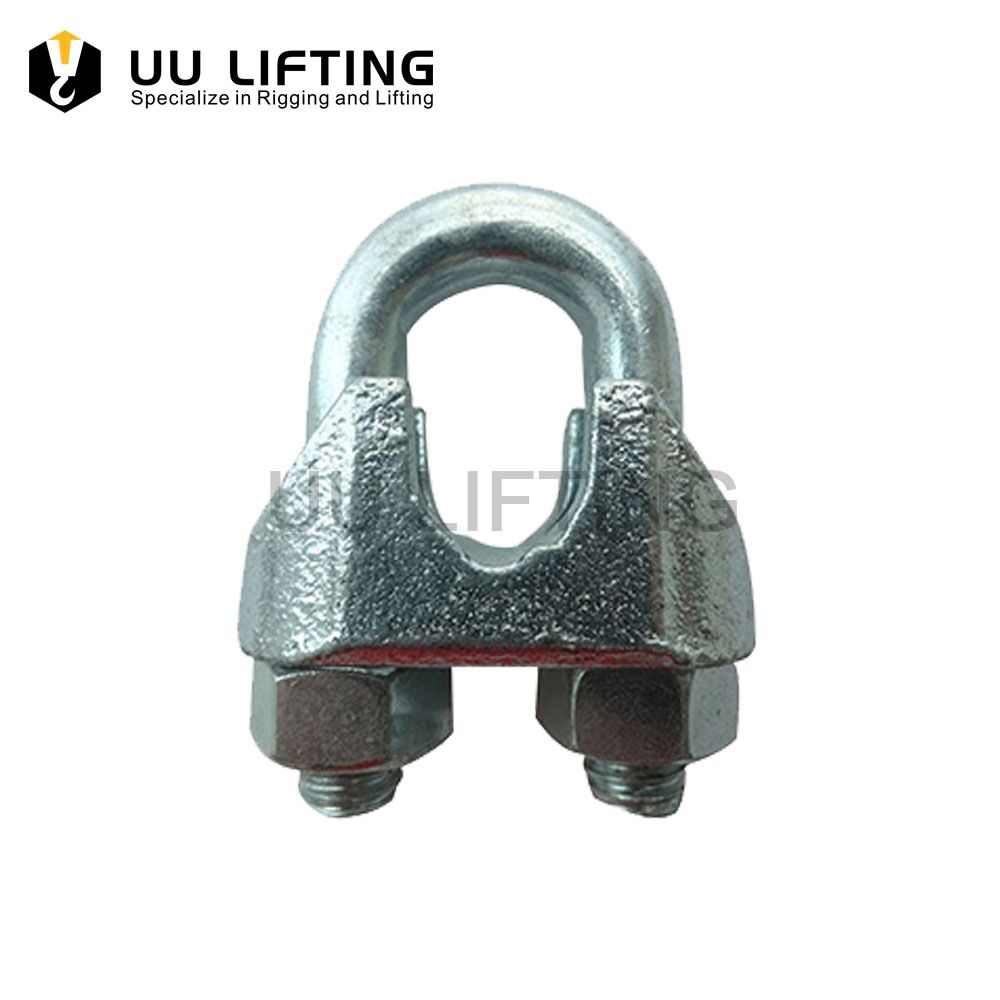

US Type Galv Malleable Wire Rope Clips

The “US Type Galv Malleable Wire Rope Clip” is a type of clamp used to make loops or splices in wire ropes and cables.

Specification

Additional information

MOQ	1 Pallet, 1 Ton or 3000USD
Material	Malleable Iron
Surface finish	Wire rope clip saddle, U-bolt and nuts are Electro-galvanized(Zinc Plated)
Sizes	From 1/8″ to 1″
Technique Procedure	Cast

Description

US Type Galv Malleable Wire Rope Clips Specifications:

MOQ	1 Pallet, 1 Ton or 3000USD
Material	Malleable Iron
Surface finish	Wire rope clip saddle, U-bolt and nuts are Electro-galvanized(Zinc Plated)
Sizes	From 1/8″ to 1″
Technique Procedure	Cast
Standard	US Federal Specification FF-C-450 D, Type 1, Class 2
HS code	732690

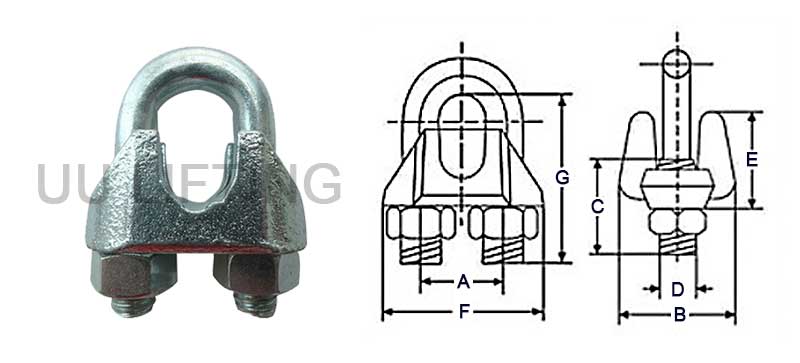

US Type Galv Malleable Wire Rope Clips Sizes：

US Type Galv Malleable Wire Rope Clips Sizes
Diameter Rope(in.)	Weight Each (Kg/pc)	Dimensions(in.)
Diameter Rope(in.)	Weight Each (Kg/pc)	A	B	C	D	E	F	G
1/16”	0.0136	0.38	0.45	0.45	0.15	0.45	0.69	0.65
1/8”	0.0182	0.5	0.56	0.5	0.18	0.5	0.94	0.81
3/16”	0.0286	0.56	0.63	0.56	0.25	0.56	1.06	0.94
1/4”	0.0591	0.75	0.75	0.75	0.31	0.75	1.31	1.19
5/16”	0.0682	0.75	0.75	0.84	0.31	0.84	1.44	1.31
3/8”	0.0955	0.88	0.88	1	0.38	1	1.63	1.63
7/16”	0.1682	1.06	1.06	1.19	0.44	1.19	1.88	2
1/2”	0.1682	1.06	1.06	1.19	0.44	1.19	1.88	2
9/16”	0.2682	1.25	1.28	1.38	0.5	1.38	2.09	2.31
5/8”	0.2682	1.25	1.28	1.38	0.5	1.38	2.09	2.31
3/4”	0.3818	1.31	1.56	1.56	0.56	1.56	2.38	2.56
7/8”	0.5682	1.63	1.81	1.81	0.63	1.81	2.88	3.06
1	0.7545	1.88	2	2	0.63	2	3	3.44
11/8”	1.1045	2	2.06	2.75	0.75	2.75	3.38	4

US Type Galv Malleable Wire Rope Clips

The “US Type Galv Malleable Wire Rope Clip” is a type of clamp used to make loops or splices in wire ropes and cables. “US Type” refers to its design being by American standards or specifications. “Galv” indicates that the clip is galvanized, with a protective zinc coating applied to prevent rusting. “Malleable” describes the type of iron used in the clip, which is heat-treated to make it more malleable and less likely to fracture under heavy loads. This clip is essential in rigging, lifting, and load-securing applications, providing a reliable and sturdy means to tie the ends of wire ropes.

OUR FACTORY

Raw materials of our products are made of high-quality steel that meets the standards, and the raw materials are traceable. And multiple production lines and machines minimize lead times for rigging and lifting equipment.

MANUFACTURING PROCESSES

With eight automatic forging and semi-automatic forging line of up to 1600ton press machines and specialized drillng, tapping, heat treatment and inspection equipment. Strict and standardized production process ensures you receive perfect products.

QUALITY CONTROL

All rigging and lifting products are subjected to strict working tension and breaking the tension test. Complied with ISO9001 and CE certification. Our promise to you: Guaranteed safety at work for people and materials.
