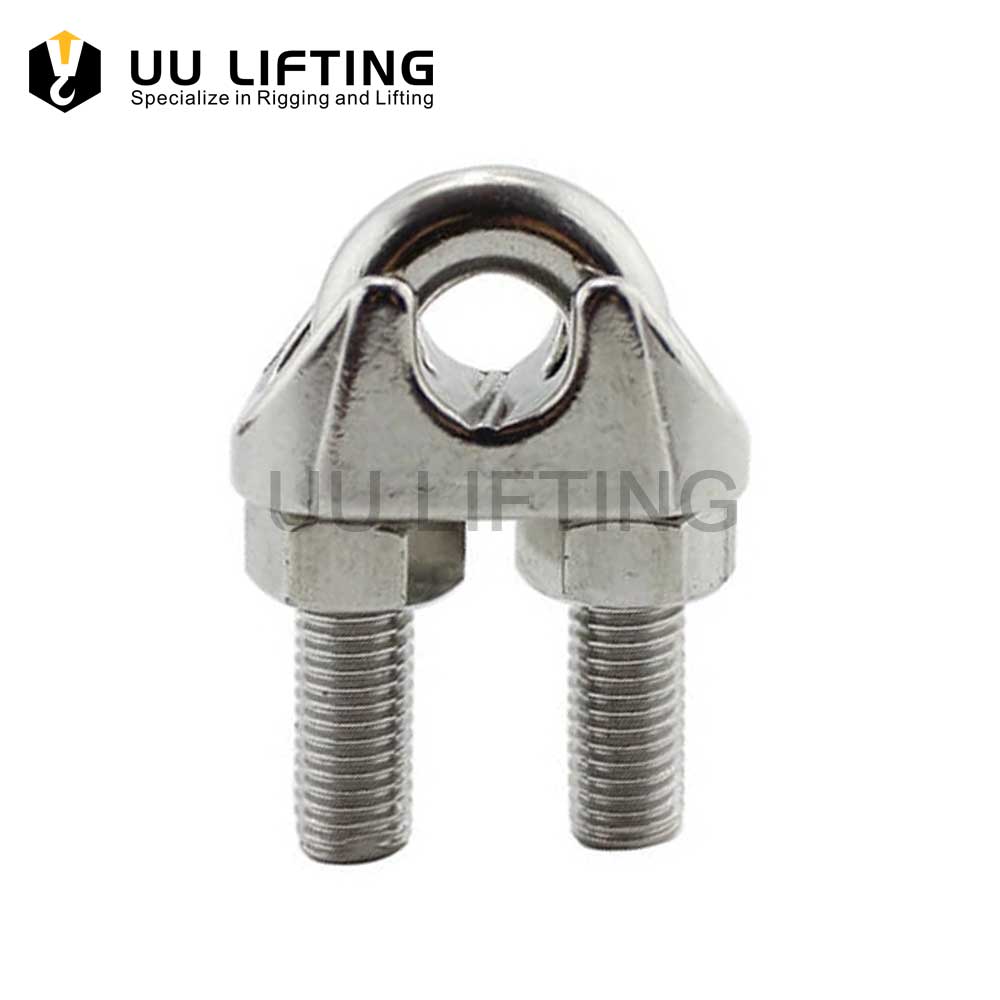

US Type Malleable Stainless Steel Wire Rope Clips

US Type Malleable Stainless Steel Wire Rope Clips are a type of hardware used for creating loops in wire rope or for joining two lengths of wire rope together.

Specification

Additional information

Material

grade 316 or 304 stainless steel

Surface finish

High polished finish

Sizes

From 1/8″ to 1″

Technique Procedure

Precision cast

Description

US Type Malleable Stainless Steel Wire Rope Clips Specifications:

MOQ1 Pallet, 1 Ton or 3000USD
MaterialGrade 316 or 304 stainless steel
Surface finishHigh polished finish
SizesFrom 1/8″ to 1″
Technique ProcedurePrecision cast
HS code732690

US Type Malleable Stainless Steel Wire Rope Clips Sizes:

US Type Malleable Stainless Steel Wire Rope Clips Sizes

US Type Malleable Stainless Steel Wire Rope Clips Sizes
Diameter Rope(mm.)D (in.)Dimensions(mm.)
ABCEFG
1/8”3/16″-2411141410.82220
3/16″1/4”-2013.51516132624
1/4”5/16”-181718.520153231.5
5/16”5/16”-1818.32022163534
3/8”3/8”-1622.522272240.541.8
7/16”3/8”-16242330224342.8
1/2”7/16”-1427263523.34953.9
9/16”1/2”-133026.5402752.554.7
5/8″9/16”-123328.5402857.559.2
3/4”9/16”-1234.53242346168.7
7/8”5/8”-11413746387178
1″5/8”-1145.542554377.587.5



US Type Malleable Stainless Steel Wire Rope Clips Sizes

US Type Malleable Stainless Steel Wire Rope Clips are a type of hardware used for creating loops in wire rope or for joining two lengths of wire rope together. They consist of a U-shaped bolt, a forged saddle, and two nuts. These components work together to clamp the wire rope securely. The “US Type” refers to a design standard commonly used in the United States, which often implies certain size, strength, and material specifications. Malleable stainless steel, the material used for these clips, is known for its durability, corrosion resistance, and strength, making it suitable for various industrial, marine, and architectural applications.
