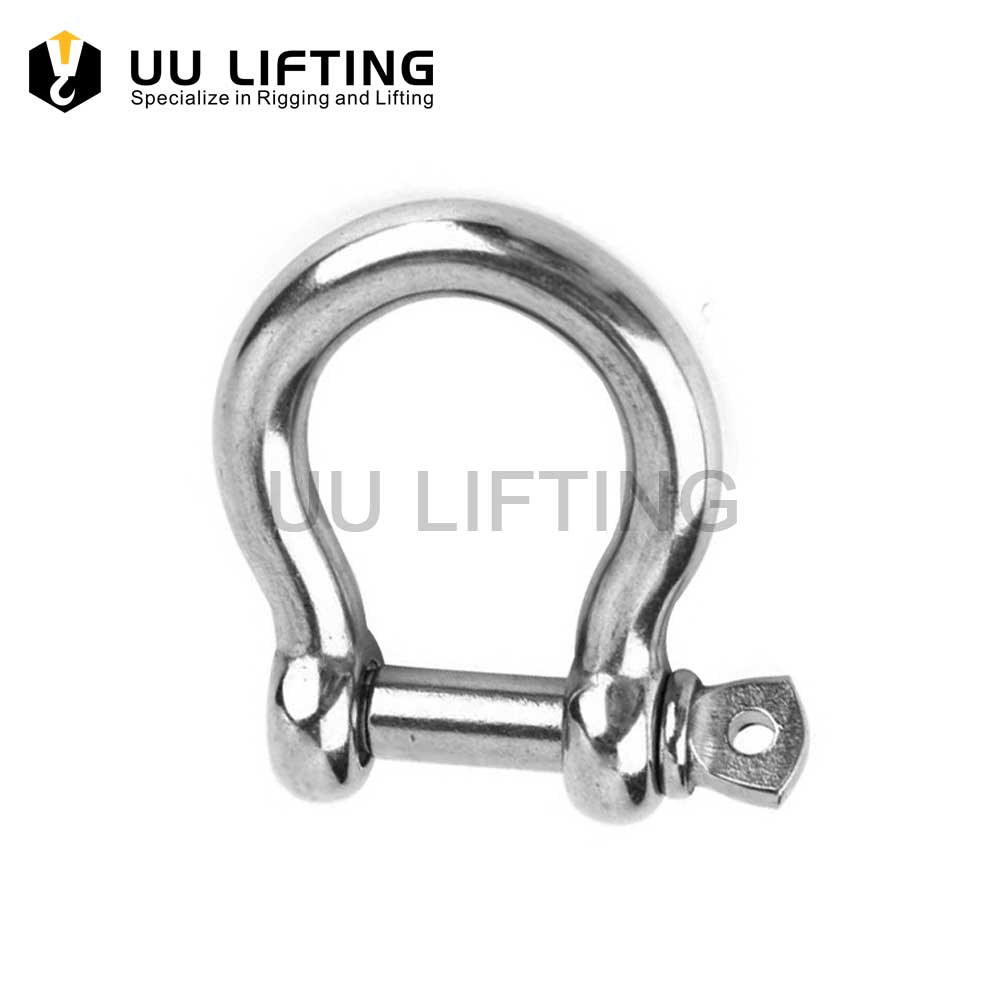

US Type Stainless Steel G209 Bow Shackle

US Type Stainless Steel G209 Bow Shackle is strong, forged from stainless steel precision wire, resistant to high temperatures corrosion, and easy to use.

Specification

Additional information

Size

From 3/16 shackle to 1-1/8 shackle

Surface Treatment

High polished finish

Application

Lifting, Lashing, Towing

Production Process

Free forging

DOWNLOAD

Description

US Type Stainless Steel G209 Bow Shackle Specifications:

MOQ1 Pallet, 1 Ton or 3000USD
ComponentAISI 316 / AISI 304
Surface finishHigh polished finish
SizesFrom 3/16 to 1-1/8
Technique ProcedureFree forging
Safety Factor2 : 1
HS code732690

US Type Stainless Steel G209 Bow Shackle Sizes:

US Type Stainless Steel G209 Bow Shackle-2

US Type Stainless Steel G209 Bow Shackle Sizes
Size (in)Dimensions (mm)
BCDEFGHIJ
3/16"561622139.5625
1/4"68202815.511.582.56
5/16"81021301913.51038
3/8"101226522316123.510
7/16"111229422716.5123.511
1/2"121433473021.5144.512
9/16"141638533424.0165.014
5/8"161843603827185.516
3/4"20225171463022620
7/8"22255883533424622
1"252868956036276.525
1-1/8"2830741076840306.528

US Type Stainless Steel G209 Bow Shackle Features:

  1. High strength: Forged from stainless steel precision wire, resistant to high-temperature corrosion, and easy to use.
  2. Deep thread: Spiral thread, deep thread, uniform force, no slipping during use, safe and reliable.
  3. Strong load-bearing capacity: Linking chains and rope rigging, solid structure, and strong load-bearing capacity.
FORGING PROCESS
With eight automatic forging and semi-automatic forging line of up to 1600ton press machines and specialized drillng, tapping, heat treatment and inspection equipment. Strict and standardized production process ensures you receive perfect products.

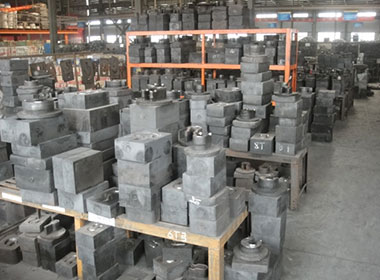

Moulds
Moulds
Forging
Forging

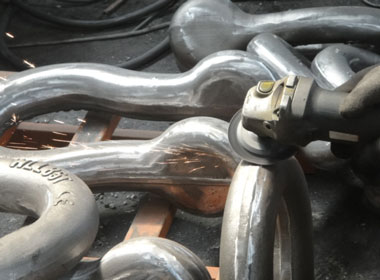

Clearance Procssing
Clearance Procssing

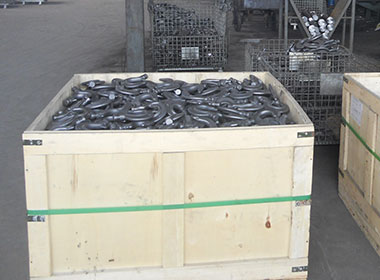

Half Finished
Half Finished

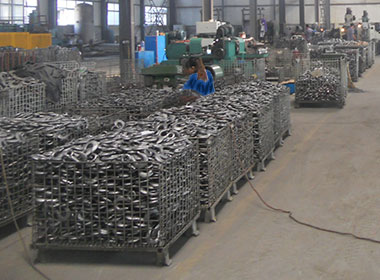

Machining Workshop
Machining Workshop

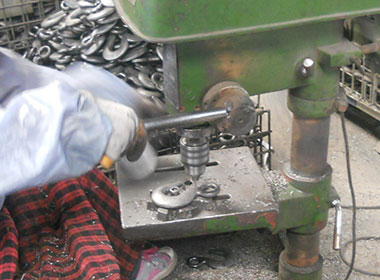

Drill Hole
Drill Hole

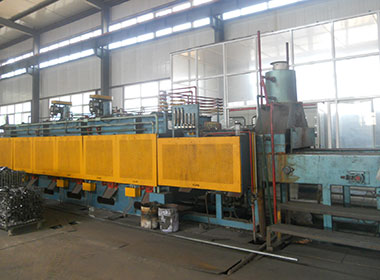

Heat Treatment
Heat Treatment

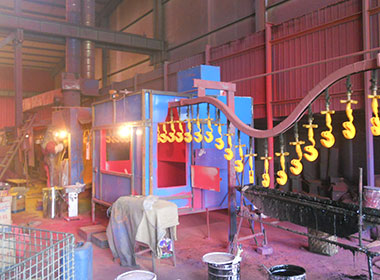

Painting
Painting
Salt Spray Test
Salt Spray Test
Tension Test
Tension Test

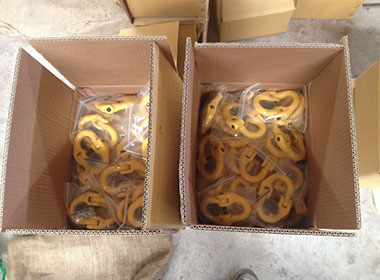

Packing
Packing

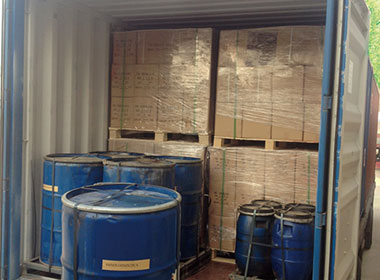

Shipping
Shipping
QUALITY CONTROL
All rigging and lifting products are subjected to strict working tension and breaking the tension test. Complied with ISO9001 and CE certification. Our promise to you: Guaranteed safety at work for people and materials.
G70 Chain Test
Chain Test
Clamp Test
Clamp Test
Hook Test
Hook Test
Link Test
Link Test
Shackle Tension Test
Shackle Tension Test
Snap Hook Test
Snap Hook Test
