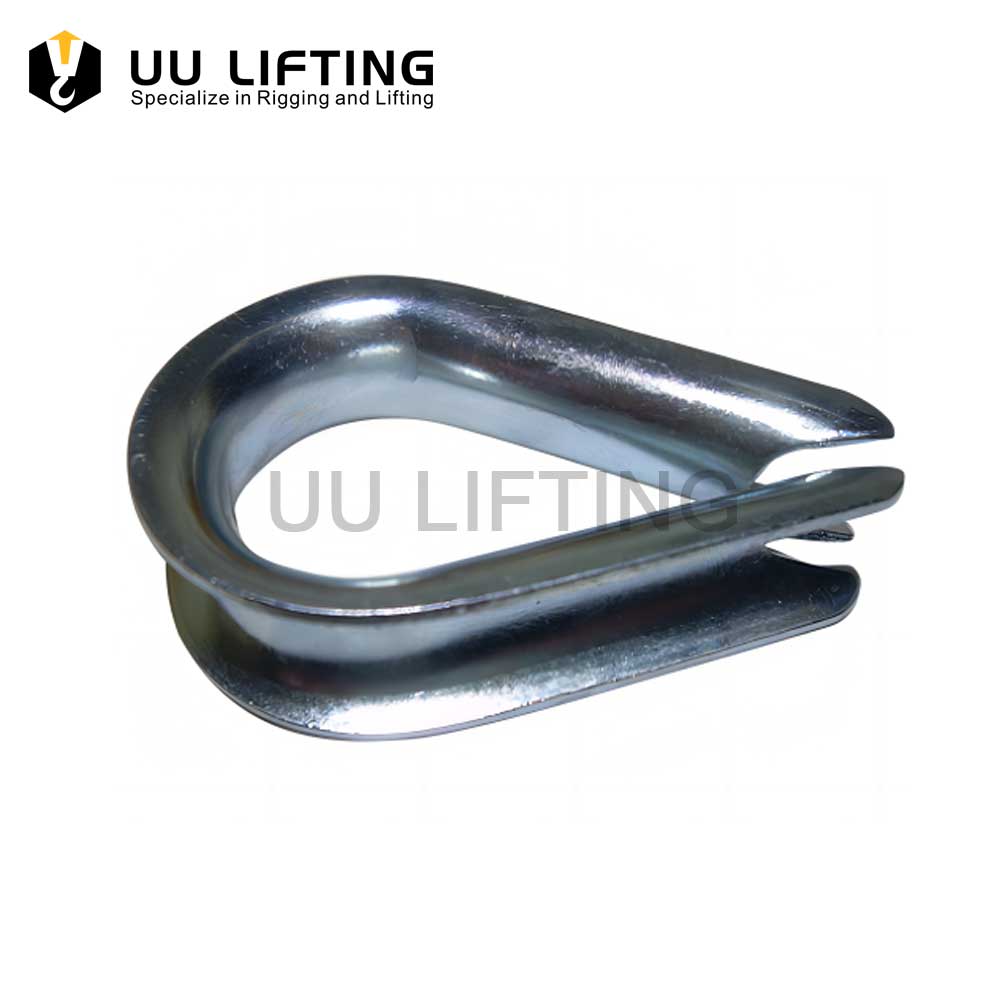

US Type G-411 Wire Rope Thimbles

Categories Rigging Hardware, Wire Rope Thimbles

US type G411 wire rope thimble is a lightweight thimble used to form the eyelets of a loop before attaching the rope while finishing with the eyelet or loop to create a natural curve to support the wire rope at the end. Use with other rigging accessories of solid wire rope thimbles to form wire rope slings.

Specification

Additional information

Sizes	From 1/8″ to 1-1/8″-1-1/4″
Surface	Electro-Galvanized (Zinc Plated)
Standard	US Type
Application	Overhead Lifting, Lashing, Towing

Description

US Type G-411 Wire Rope Thimbles Specifications:

Material	High Tensile Carbon Steel
Surface finish	Electro-Galvanized (Zinc Plated)
Sizes	From 1/4″ to 2-1/4″
Processing	Machining
Standard	Federal Specification FF-T-276b Type II and EN13411-1:2002.
HS code	732690

US Type G-411 Wire Rope Thimbles Sizes：

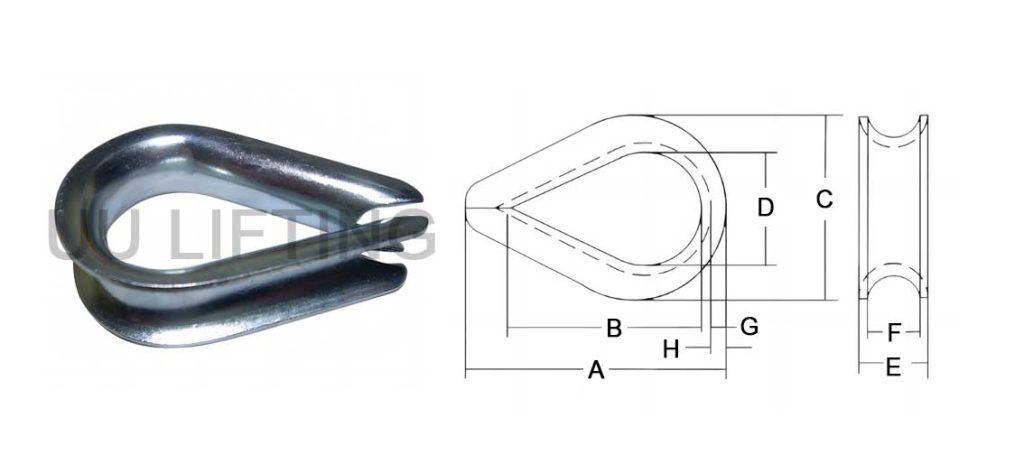

US Type Wire Rope Thimbles G-411 Sizes
Rope DIA	Dimension (in)								Weight
(in）	A	B	C	D	E	F	G	H	/100 (lbs)
1/8″	1.94	1.31	1.06	0.69	0.25	0.16	0.05	0.13	2.5
3/16″	1.94	1.31	1.06	0.69	0.31	0.22	0.05	0.13	2.5
1/4″	1.94	1.31	1.06	0.69	0.38	0.28	0.05	0.13	3.75
5/16″	2.13	1.5	1.25	0.81	0.44	0.34	0.05	0.13	3.75
3/8″	2.38	1.63	1.47	0.94	0.53	0.41	0.06	0.16	6.25
1/2″	2.75	1.88	1.75	1.13	0.69	0.53	0.08	0.19	12.5
5/8″	3.5	2.25	2.38	1.38	0.91	0.66	0.13	0.34	25
3/4″	3.75	2.5	2.69	1.63	1.08	0.78	0.14	0.34	50
7/8″	5	3.5	3.19	1.88	1.27	0.94	0.16	0.44	85
1″	6.69	4.25	3.75	2.5	1.39	1.06	0.16	0.41	100
1-1/8″-1-1/4″	6.25	4.5	4.31	2.75	1.75	1.31	0.22	0.5	175

OUR FACTORY

Raw materials of our products are made of high-quality steel that meets the standards, and the raw materials are traceable. And multiple production lines and machines minimize lead times for rigging and lifting equipment.

MANUFACTURING PROCESSES

With eight automatic forging and semi-automatic forging line of up to 1600ton press machines and specialized drillng, tapping, heat treatment and inspection equipment. Strict and standardized production process ensures you receive perfect products.

QUALITY CONTROL

All rigging and lifting products are subjected to strict working tension and breaking the tension test. Complied with ISO9001 and CE certification. Our promise to you: Guaranteed safety at work for people and materials.
