US Type Wire Rope Thimbles G-414

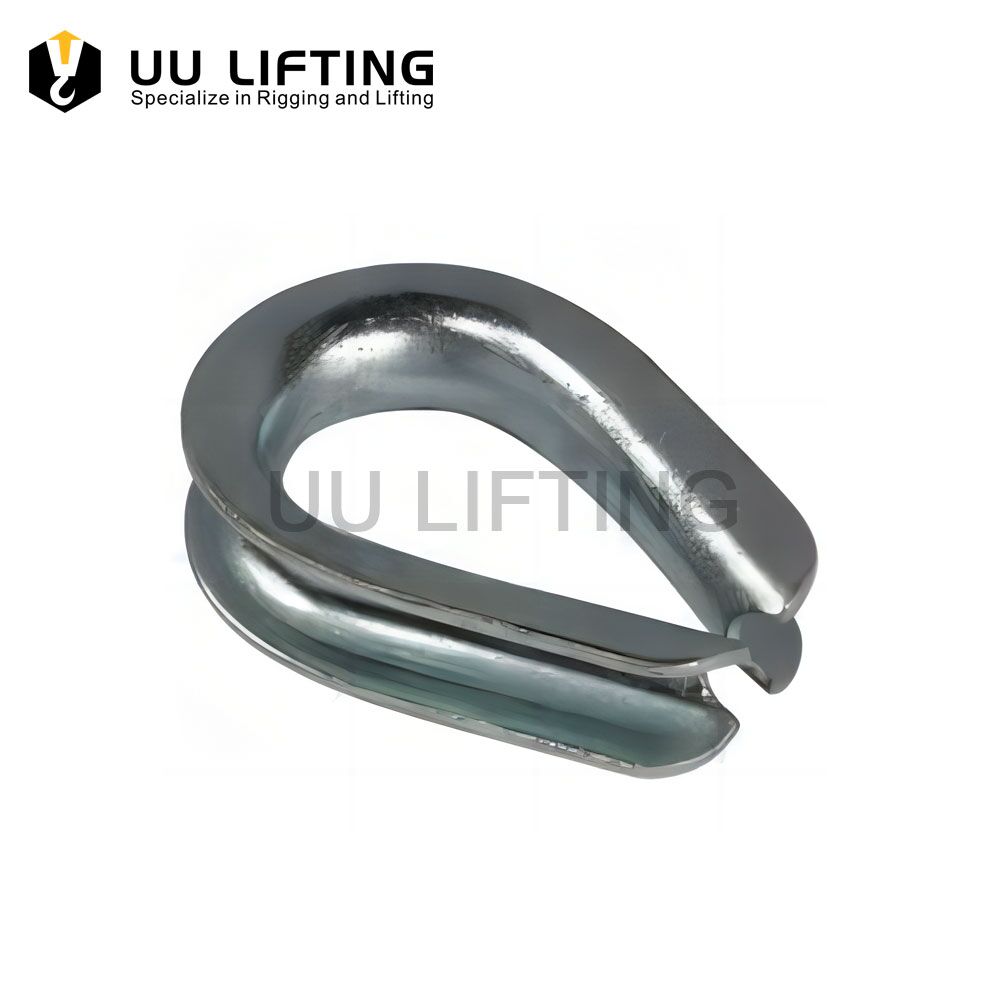

US Type G-414 Wire Rope Thimbles

Categories ,

G-414 heavy-duty wire rope thimbles are made of high-strength carbon steel, which is galvanized after stamping. The stamped steel is dipped in zinc, which provides a better coating than the lightweight type and has excellent anti-corrosion properties.

Specification

Additional information

Sizes

From 1/4″ to 2-1/4″
Surface

Hot Dipped Galvanized or Electro-galvanized
Standard

US Type
Application

Overhead Lifting, Lashing, Towing
HS Code

732690
ASK FOR A QUOTE

Description

US Type G-414 Wire Rope Thimbles Specifications:

MaterialHigh Tensile Carbon Steel
Surface finishHot Dipped Galvanized or Electro-galvanized
SizesFrom 1/4″ to 2-1/4″
ProcessingMachining
StandardFederal Specification FF-T-276b Type III and EN13411-1:2002

US Type G-414 Wire Rope Thimbles Sizes：

US Type Wire Rope Thimbles G-414 Sizes

US Type Wire Rope Thimbles G-414 Sizes
Rope DIADimension (in)Weight
(in）ABCDEFGH/100 (lbs)
1/4″2.191.631.50.880.440.280.060.236.5
5/16″2.51.881.811.060.550.340.080.2811.8
3/8″2.882.132.131.130.660.410.110.3421.6
7/16″3.252.382.381.250.740.470.130.3834.7
1/2″-9/16″3.632.752.751.50.920.530.140.4151
5/8″4.253.253.131.751.030.660.160.575.7
3/4″53.753.8121.30.780.220.66158.1
7/8″5.54.254.252.251.470.940.220.75177.8
1″6.134.54.942.51.751.060.250.88313.9
1-1/8″-1-1/4″75.135.882.881.941.310.251.13400
1-1/4″-1-3/8″9.066.56.813.52.351.440.381.13811
1-3/8″-1-1/2″96.257.133.52.781.560.51.131294.8
1-5/8″11.2588.1343.021.720.51.381700
1-3/4″12.1998.54.53.061.840.51.311775
1-7/8″-2″15.131210.3863.382.090.51.52775
2-1/4″17.131411.8873.872.380.631.633950
