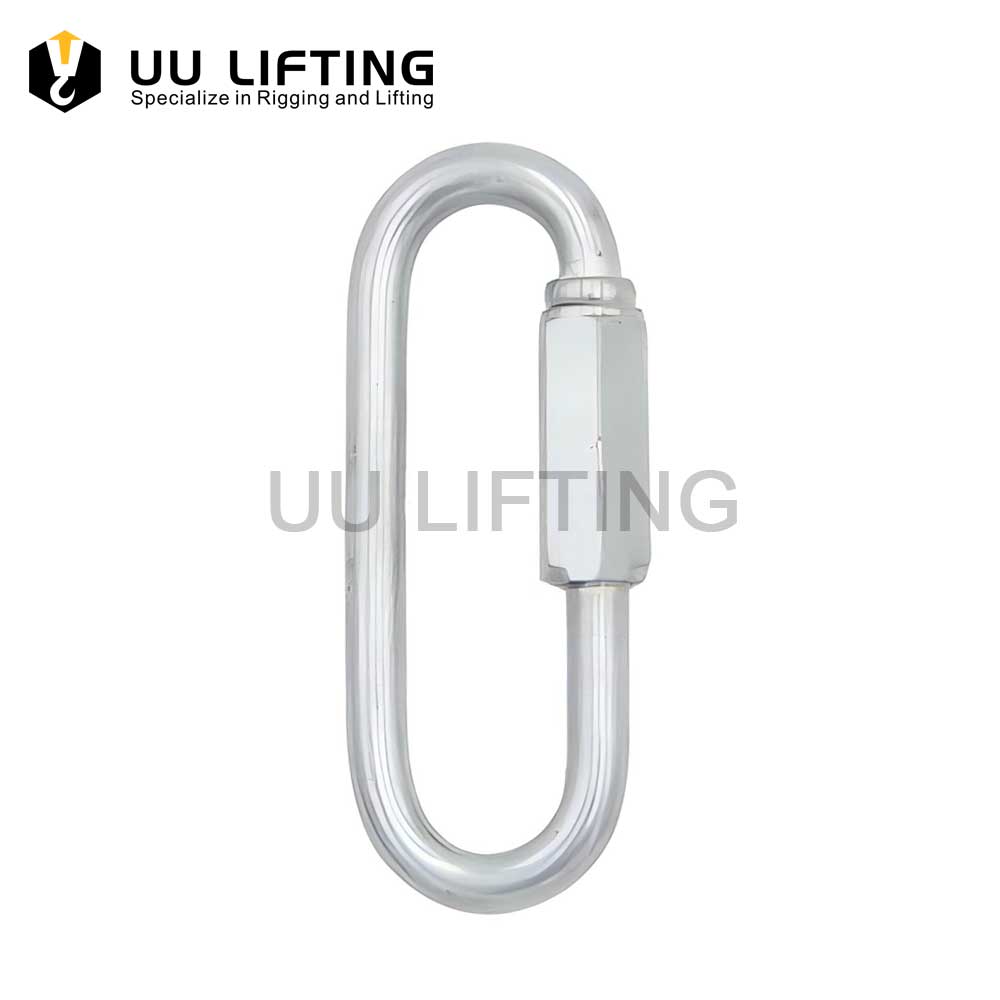

Wide Jaw Quick Link

Categories Carabiner Snap Hooks and Quick Links, Rigging Hardware

A wide jaw quick link is a handy fastener often used for securing ropes, chains, and other items. It has a wide opening, making it easy to attach and detach things. The wide jaw design provides stability and reduces the risk of slippage. These quick links are usually made of strong materials like stainless steel or galvanized steel, and they’re commonly used in industrial, marine, and outdoor settings for various rigging and fastening needs.

Specification

Additional information

Sizes	From 3.5mm to 12mm
Application	Marine, Sports, Climbing, Architectural, Industrial, Security

Description

Wide Jaw Quick Link Specifications:

MOQ	1 Pallet, 1 Ton or 3000USD
Size	From 3.5mm to 12mm

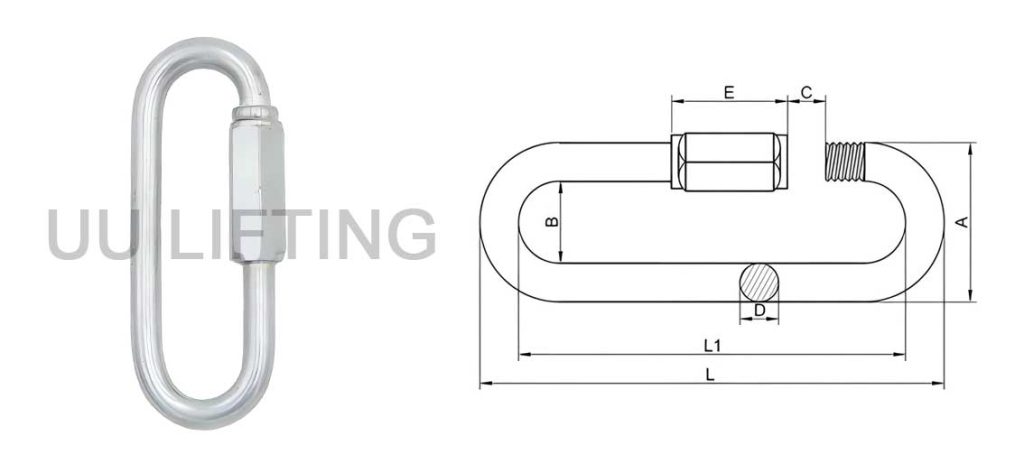

Wide Jaw Quick Link Sizes：

Simplex Hook Sizes
Size (mm)	SWL (lbs)	A (mm)	B (mm)	C (mm)	D (mm)	L (mm)	L1 (mm)	E (mm)	Weight (kg/100pcs)
Size (mm)	SWL (lbs)	A (mm)	B (mm)	C (mm)	D (mm)	L (mm)	L1 (mm)	E (mm)	Weight (kg/100pcs)
3.5	180.00	17.00	10.00	5.00	3.50	46.00	39.50	16.00	0.70
4.00	350.00	19.50	11.50	5.50	4.00	53.00	45.00	19.00	1.50
5.00	550.00	23.00	13.00	6.50	5.00	62.00	52.00	22.00	2.00
6.00	770.00	26.50	14.50	7.50	6.00	70.50	58.50	25.00	3.75
7.00	880.00	30.00	16.00	8.50	7.00	79.00	65.00	28.00	6.00
8.00	1430.00	33.50	17.50	10.50	8.00	88.00	72.00	31.50	9.00
10.00	1760.00	40.50	20.50	12.00	10.00	105.50	85.50	36.00	13.55
12.00	2755.00	47.50	23.50	15.00	12.00	124.00	100.00	43.00	25.00

OUR FACTORY

Raw materials of our products are made of high-quality steel that meets the standards, and the raw materials are traceable. And multiple production lines and machines minimize lead times for rigging and lifting equipment.

MANUFACTURING PROCESSES

With eight automatic forging and semi-automatic forging line of up to 1600ton press machines and specialized drillng, tapping, heat treatment and inspection equipment. Strict and standardized production process ensures you receive perfect products.

QUALITY CONTROL

All rigging and lifting products are subjected to strict working tension and breaking the tension test. Complied with ISO9001 and CE certification. Our promise to you: Guaranteed safety at work for people and materials.
