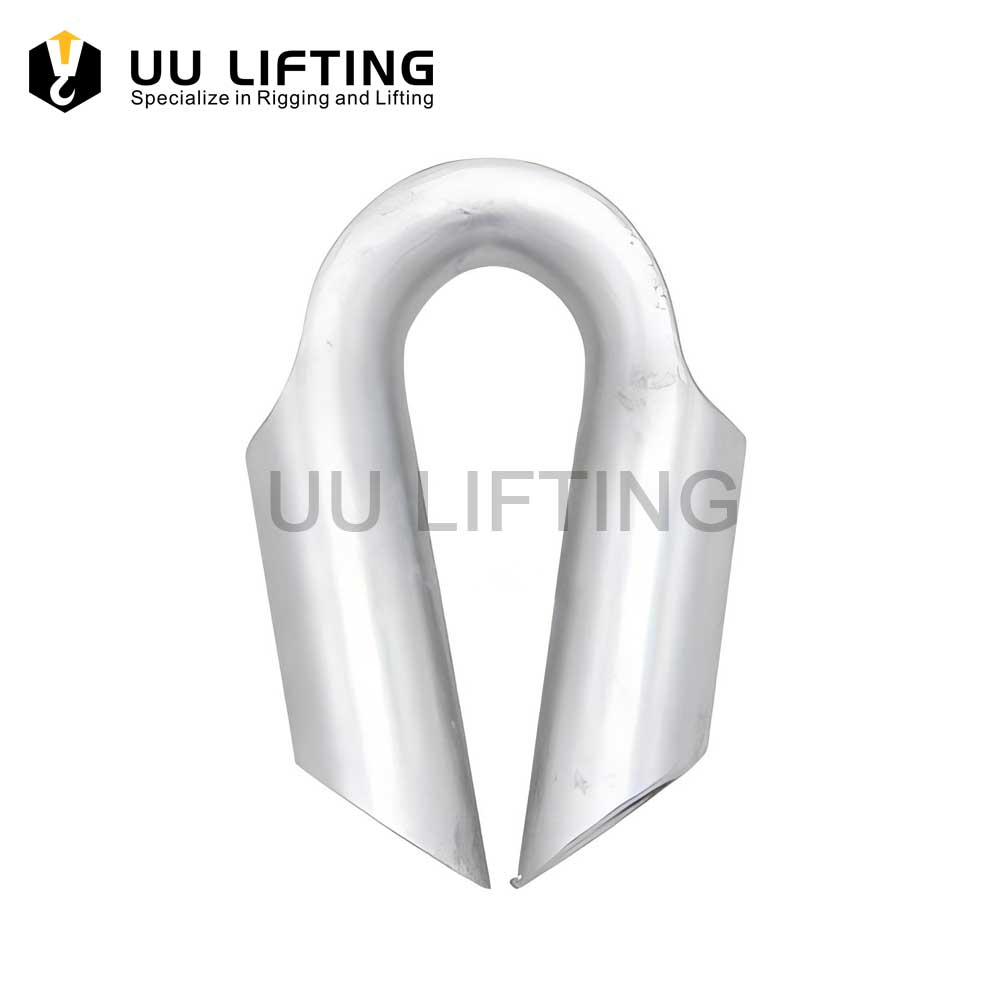

Wire Rope Tube Thimble

Categories Rigging Hardware, Wire Rope Thimbles

A tube thimble is an essential tool for safeguarding wire or synthetic rope, shielding it from damage and wear. By maintaining the shape of the rope’s eye, it ensures longevity and durability.

Specification

Additional information

Sizes	From 10mm to 51mm
Surface	Hot Dipped Galvanized or Electro-galvanized
Application	Overhead Lifting, Lashing, Towing

Description

Wire Rope Tube Thimble Specifications:

MOQ	1 Pallet, 1 Ton or 3000USD
Size	From 10mm to 51mm

Wire Rope Tube Thimble Sizes：

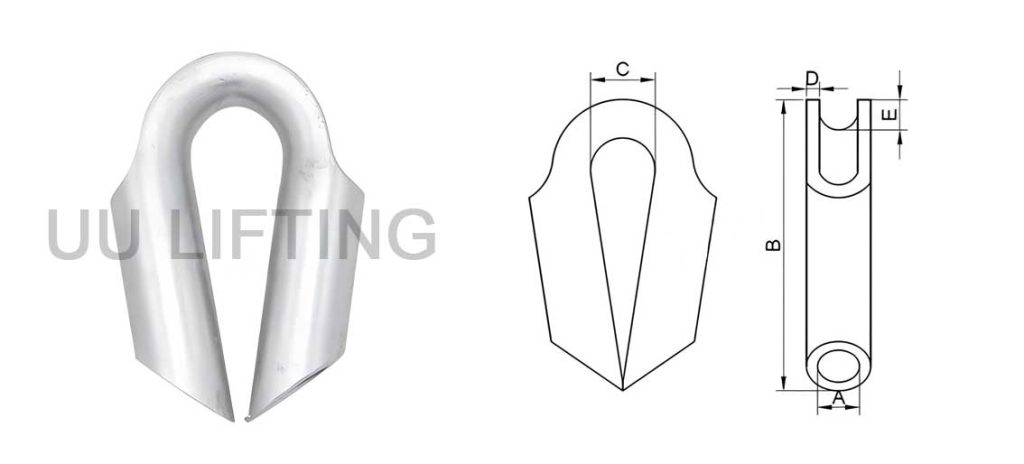

Wire Rope Tube Thimble Sizes
Max Wire Dia (mm)	Dimensions (mm)					Weight
Max Wire Dia (mm)	A	B	C	D	E	kg/pc
10.00	12.00	90.00	23.00	4.00	8.00	0.25
12.00	15.00	105.00	27.00	5.00	10.00	0.42
14.00	17.00	115.00	27.00	4.00	10.00	0.50
16.00	19.00	120.00	32.00	6.00	12.00	0.60
18.00	22.00	140.00	35.00	6.00	15.00	0.75
22.00	25.00	180.00	45.00	6.30	16.00	1.40
24.00	28.00	180.00	45.00	7.00	16.00	1.75
26.00	30.00	195.00	47.00	7.00	18.00	2.00
32.00	35.00	215.00	60.00	7.00	22.00	2.40
38.00	45.00	260.00	70.00	7.00	27.00	3.30
51.00	55.00	298.00	85.00	7.00	32.00	5.50

OUR FACTORY

Raw materials of our products are made of high-quality steel that meets the standards, and the raw materials are traceable. And multiple production lines and machines minimize lead times for rigging and lifting equipment.

MANUFACTURING PROCESSES

With eight automatic forging and semi-automatic forging line of up to 1600ton press machines and specialized drillng, tapping, heat treatment and inspection equipment. Strict and standardized production process ensures you receive perfect products.

QUALITY CONTROL

All rigging and lifting products are subjected to strict working tension and breaking the tension test. Complied with ISO9001 and CE certification. Our promise to you: Guaranteed safety at work for people and materials.
