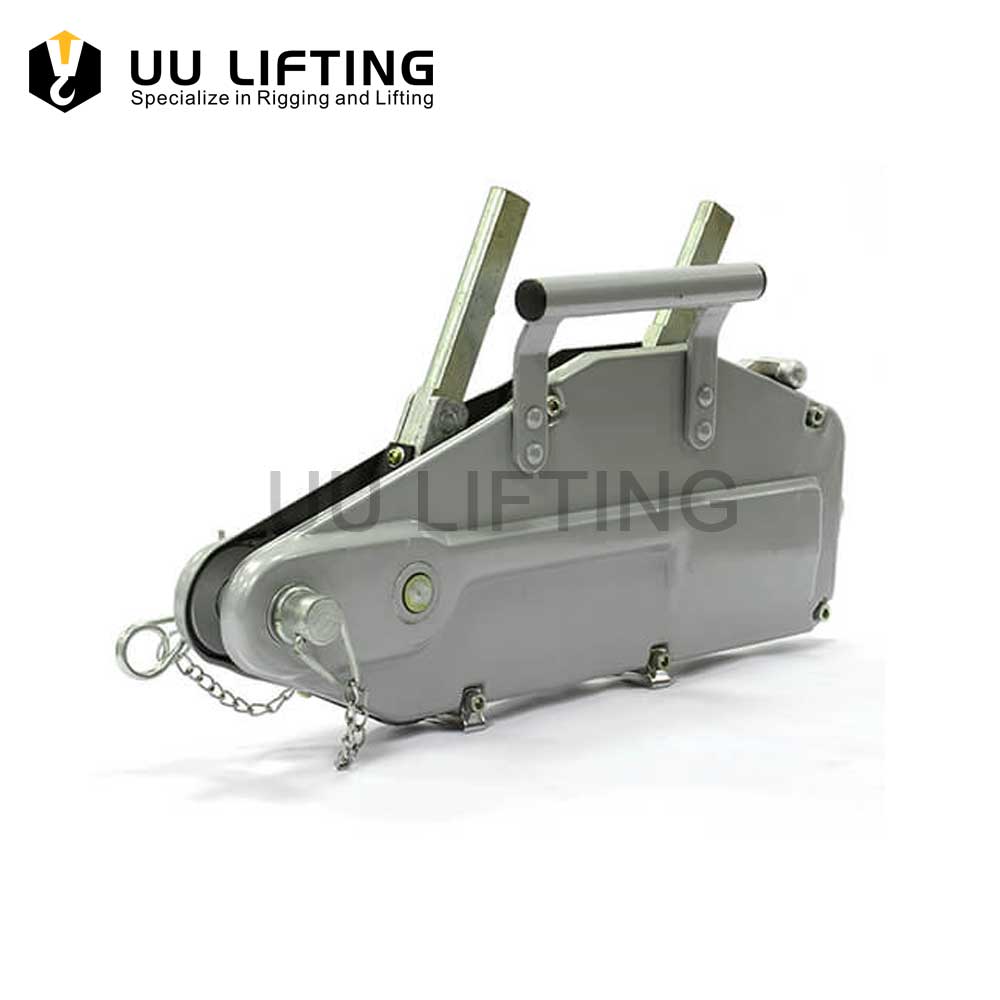

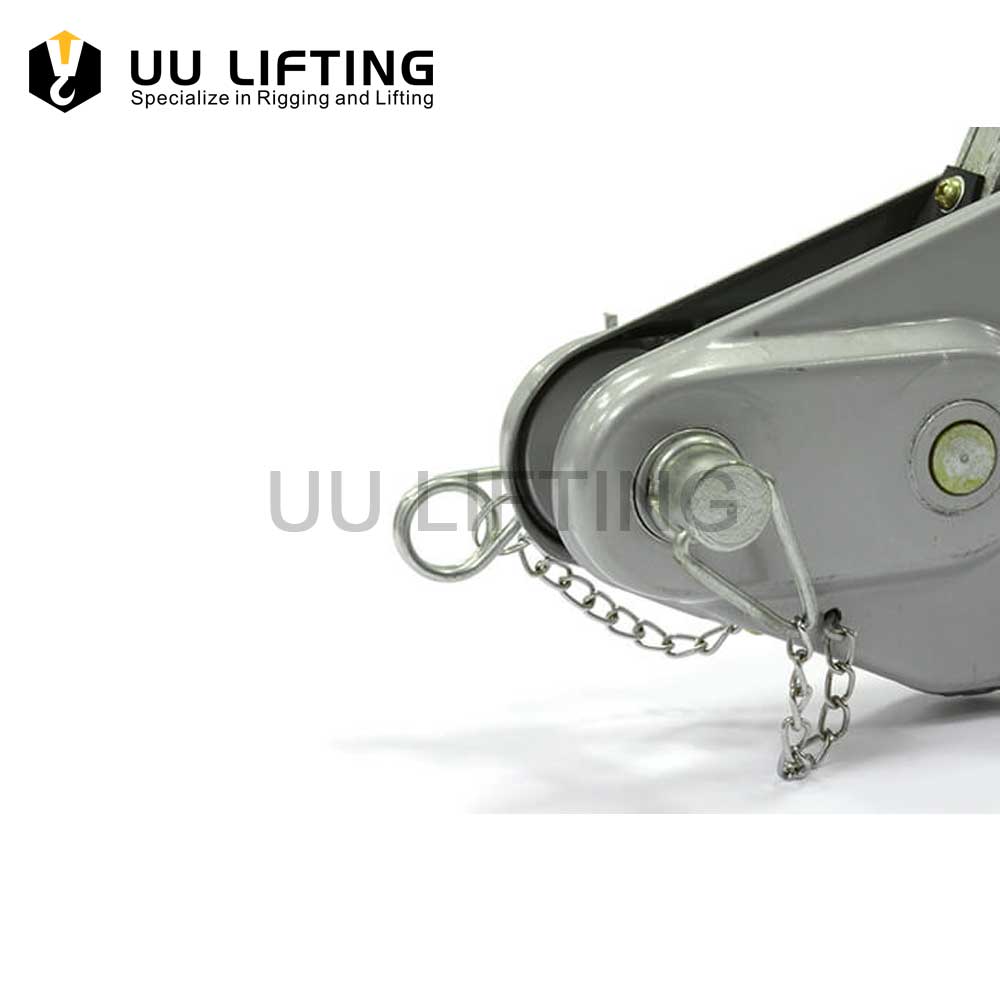

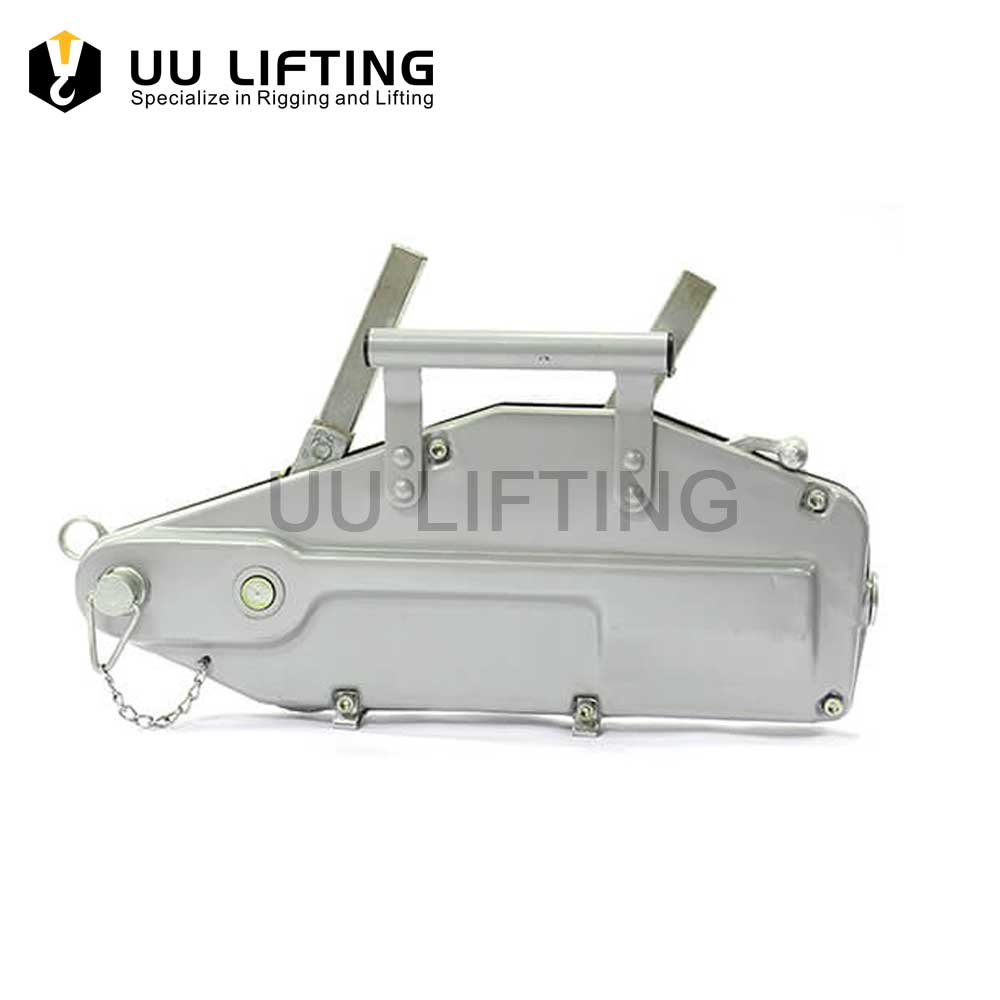

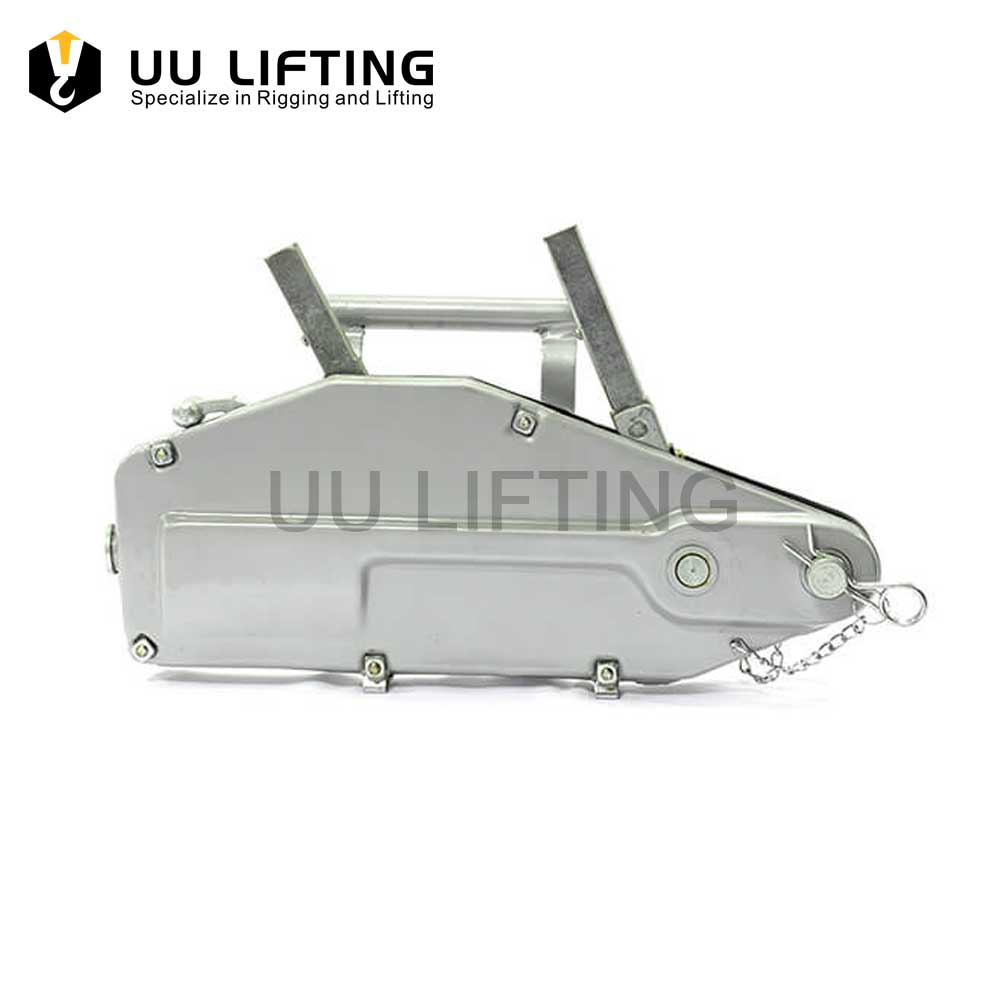

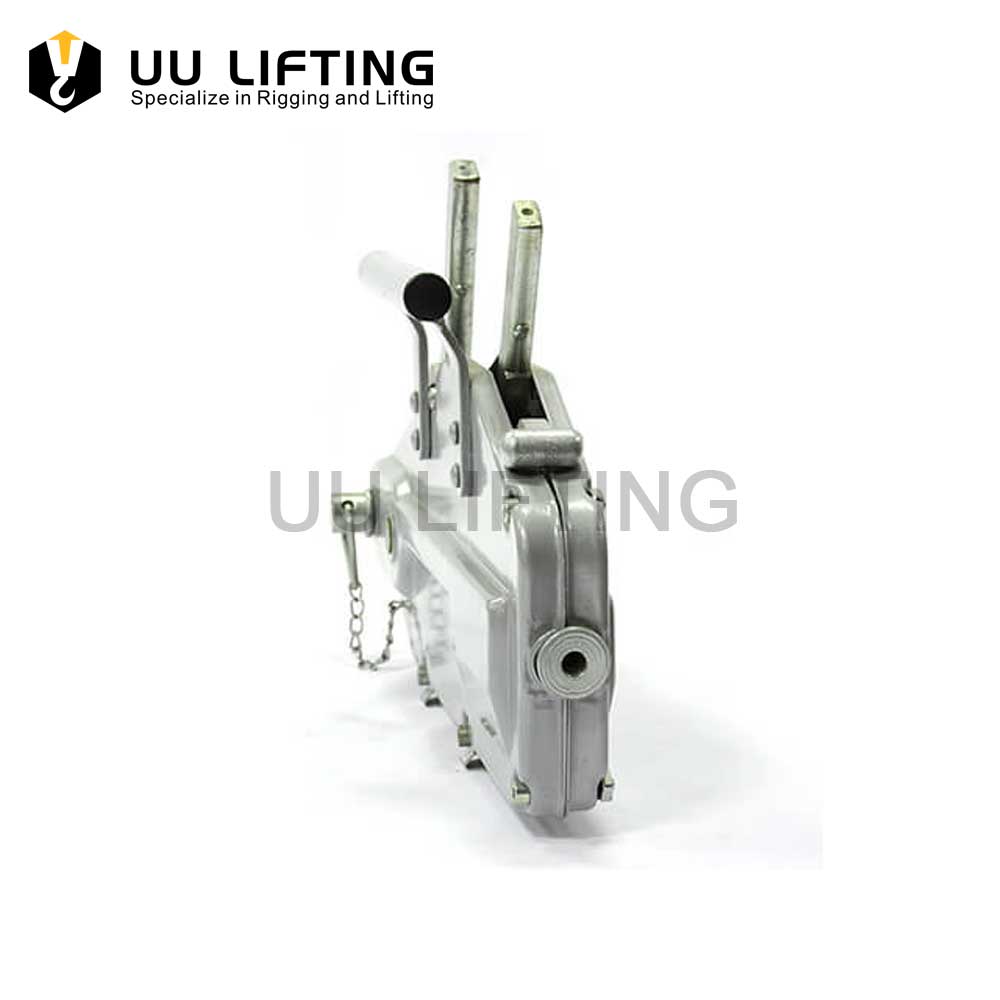

Wire Rope Winch(Aluminum Housing)

A manual wire rope winch, or hand-operated winch, is a portable tool that can pull or lift light loads over short distances in environments without power. It consists of a crank, a transmission, a drum, a cable, a brake, and a housing.

Specification

Additional information

Rated Capacity

From 0.8 Ton to 3.2 Ton

Pulling Capacity

From 1.2t to 4.3t

Application

Construction Area

Description

Wire Rope Winch(Aluminum Housing) Specifications:

MOQ1 Pallet, 1 Ton or 3000USD
Rated CapacityFrom 0.8Ton to 3.2Ton
N.W (Kg)From 16kg to 48kg

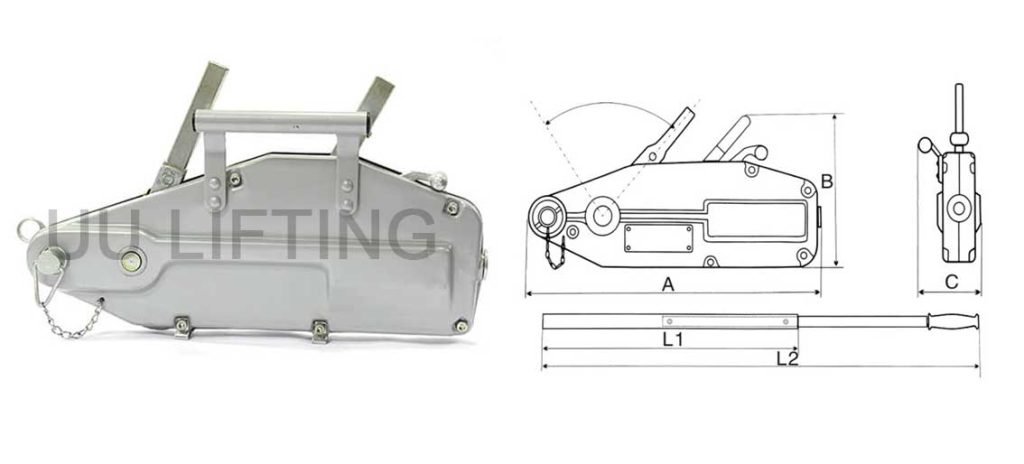

Wire Rope Winch(Aluminum Housing) Sizes:

Wire Rope Winch(Aluminum Housing) Sizes

Manual Wire Rope Winch Sizes
Rated CapacityPulling CapacityRated Forward TravelEffcient Length of Forward HandleDrive StepRope DiameterStandard Length of RopeNet weightRated Forward Hand PowerMax.Overall Size
(T)(T)(mm)(mm)(mm)(m)(kg)(N)(mm)
0.81.2≥52825182016≤284428×64×235
1.01.5≥52825182016≤353428×64×235
1.62.4≥5512001112024≤412545×97×286
3.24.8≥2812002162048≤441660×116×350



OUR FACTORY
Raw materials of our products are made of high-quality steel that meets the standards, and the raw materials are traceable. And multiple production lines and machines minimize lead times for rigging and lifting equipment.
RAW-MATERIAL
Raw Material
Forged-Plant
Forged
Cast Process
Cast
Chain Process
Chain Machine
Heat Treatment Plant
Heat Treatment
Powder Plastified Plant
Powder Plastified
Package Plant
Package
Warehouse Plant
Warehouse
MANUFACTURING PROCESSES
With eight automatic forging and semi-automatic forging line of up to 1600ton press machines and specialized drillng, tapping, heat treatment and inspection equipment. Strict and standardized production process ensures you receive perfect products.
MANUFACTURING-PROCESSES-shackle
QUALITY CONTROL
All rigging and lifting products are subjected to strict working tension and breaking the tension test. Complied with ISO9001 and CE certification. Our promise to you: Guaranteed safety at work for people and materials.
G70 Chain Test
Chain Test
Clamp Test
Clamp Test
Hook Test
Hook Test
Link Test
Link Test
Shackle Tension Test
Shackle Tension Test
Snap Hook Test
Snap Hook Test
