Description

Clevis Grab Hook.self colored or zinc plated(G70,G43 Available) Sizes:

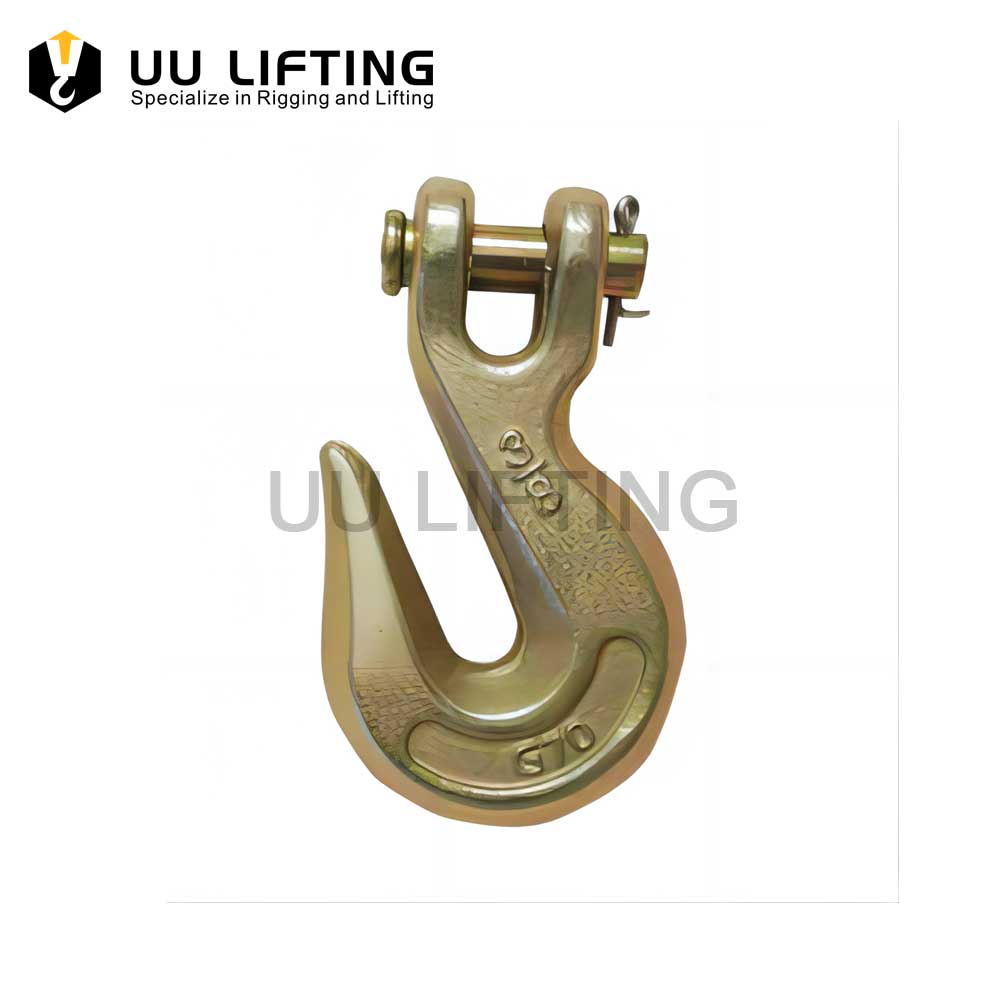

Clevis Grab Hook (G70,G43 Available) Sizes
Size (in)G43 WLL (lbs)G70 WLL (lbs)N.W (lbs)
Carbon SteelAlloy Steel
1/4260036000.40
5/16390054000.7
3/8540075001.00
7/167200100001.5
1/29200127502.10
5/812750190004.2
3/418500270006.50

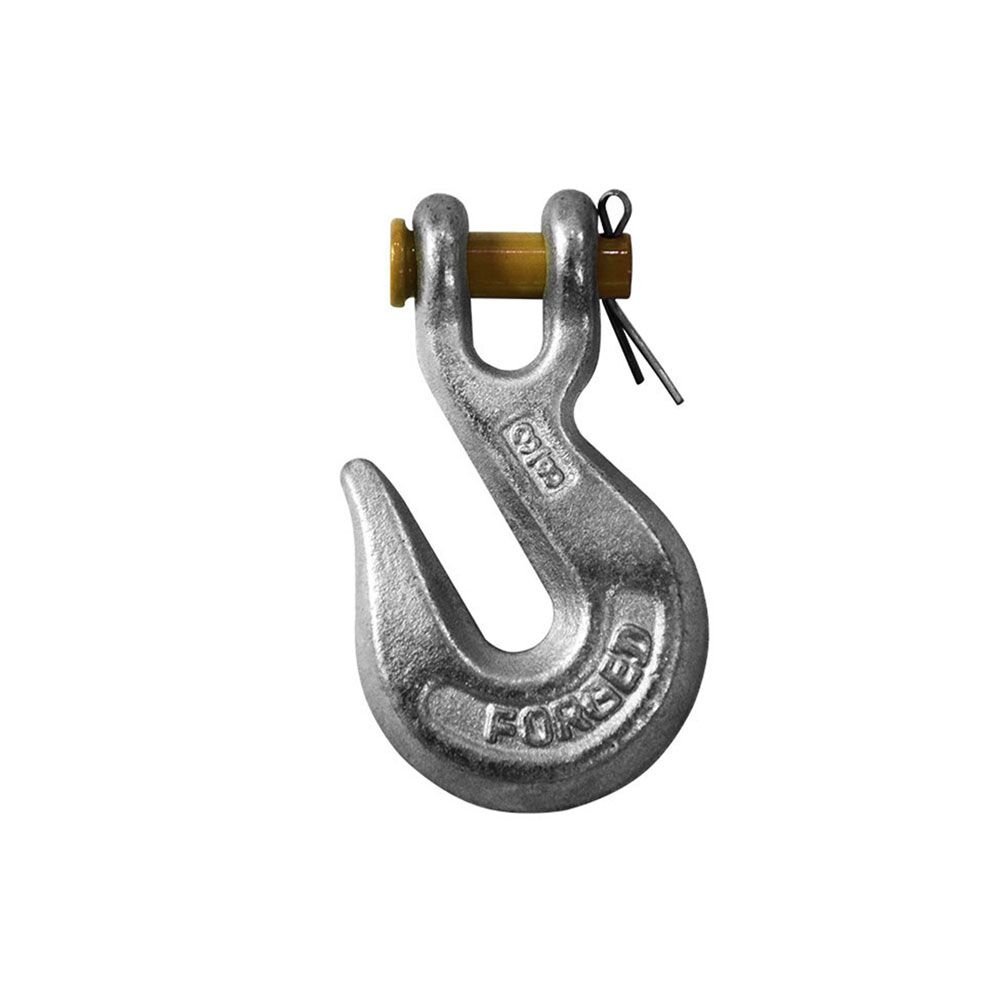

Zinc Plating US Type G70 Clevis Grab Hooks

G70 Clevis Grab Hooks

G70 clevis grab hooks are designed for coupling with Grade 70 alloy chains and load binders. They are used to shorten the chain and maintain the required chain length. This multifunctional assembly is suitable for use in Agricultural and industrial applications, logging, vehicle towing, and flatbed securement. A special yellow zinc surface treatment prevents rust and is durable.

Grade 70 chain hooks and fittings are manufactured with a gold or yellow chromate coating for quick identification, with a G70 grade indication embossed on the surface and convenient, shallow throat opening for easy and secure 3/8″ Grade 70 chain attachment. Cotter pins can be easily removed when needed. They are ideal for Grade 70 transport chains, utility trailers, flatbed trailers, and sand trucks. It’s reliable for surviving the most challenging situations. Clevis Grab Hooks are very common at the end of the transport chain and feature shallow throat openings for easy and secure attachment. It is important to note that G70 hooks or accessories should never be used for overhead lifting applications.

G70 Clevis Grab Hooks combined with Grade 70 chain is an effective way to restrain heavy loads for transport operations with the benefit of a cradle built into the hook to achieve total lashing capacity.

• Manufactured from forged steel, quenched, tempered, and gold zinc plated.
• Marked with chain size, lashing capacity, and grade.
• Batch test certificate available upon request.

If you have any dissatisfaction with our tow chain trailer, please feel free to contact us. We’ll try our best to help you with all your questions or concerns.

OUR FACTORY
Raw materials of our products are made of high-quality steel that meets the standards, and the raw materials are traceable. And multiple production lines and machines minimize lead times for rigging and lifting equipment.
RAW-MATERIAL
Raw Material
Forged-Plant
Forged
Cast Process
Cast
Chain Process
Chain Machine
Heat Treatment Plant
Heat Treatment
Powder Plastified Plant
Powder Plastified
Package Plant
Package
Warehouse Plant
Warehouse
MANUFACTURING PROCESSES
With eight automatic forging and semi-automatic forging line of up to 1600ton press machines and specialized drillng, tapping, heat treatment and inspection equipment. Strict and standardized production process ensures you receive perfect products.
MANUFACTURING-PROCESSES-shackle
QUALITY CONTROL
All rigging and lifting products are subjected to strict working tension and breaking the tension test. Complied with ISO9001 and CE certification. Our promise to you: Guaranteed safety at work for people and materials.
G70 Chain Test
Chain Test
Clamp Test
Clamp Test
Hook Test
Hook Test
Link Test
Link Test
Shackle Tension Test
Shackle Tension Test
Snap Hook Test
Snap Hook Test
