Bow Shackle VS D Shackle: Which One Do You Really Need?

Struggling to choose the right shackle for your lift? Using the wrong one can lead to unsafe conditions and costly damage. Let’s make sure you select the perfect tool.

The main difference is the shape and how it handles loads. Bow shackles have a rounded "O" shape for multi-directional loads. D shackles have a narrow "D" shape and are best for straight, in-line loads. Your specific lifting application determines the correct choice.

I remember talking with a client, Mark, who runs a distribution company in America. He called me once, very concerned because a shackle had failed during a lift. He sent me a picture, and I saw the problem right away. He was using a D shackle for a multi-leg sling, which put a dangerous side load on it. It’s a common mistake, but one that can have serious consequences. This experience showed me again how important it is to understand the basic differences. It’s not just about buying a piece of hardware; it’s about ensuring safety and efficiency on the job. Let’s break it down so you always make the right call.

What Are D Shackles Best For?

Are you lifting something in a straight line? Using the wrong shackle for this simple task can cause it to bend and fail. You need a strong, reliable connection.

D shackles, also known as chain shackles, are perfect for single-leg slings and in-line lifting. Their narrow "D" shape is designed to handle high loads in a straight line without twisting or bending. They are ideal for connecting chains and wire ropes.

When I talk to procurement officers, I always stress the importance of using equipment as it was designed. D shackles are a perfect example. Their entire design is focused on one thing: in-line strength.

The In-Line Strength Advantage

The "D" shape channels the load directly along the shackle’s centerline, from the pin to the top of the bow. This is the most efficient way for it to handle tension. If you introduce a load from the side, you put stress on the "ears" where the pin goes through. This is called side loading, and D shackles are not built for it. The shackle can twist, bend, or even break under a significant side load. That’s why we always tell our customers that for any lift that isn’t a straight pull, a D shackle is the wrong choice.

Common Industries and Uses

You will see D shackles used everywhere, in many industries. They are very common in construction, shipping, and manufacturing. They are great for connecting a chain to a lifting hook or for joining two pieces of chain together.

When Should You Choose a Bow Shackle?

Do your lifts involve multiple slings or angles? A D shackle would be a dangerous choice in this situation. You need a shackle that can handle complex loads safely.

Bow shackles, also called anchor shackles, are your go-to for multi-leg sling assemblies. Their rounded "O" shape allows them to safely handle loads from multiple directions. This design also accommodates wider straps without pinching or damage.

A bow shackle offers much more versatility, which is why it’s a favorite in general rigging. When a customer like Mark asks for a "general purpose" shackle, I often point them toward a bow shackle because of its wider range of safe applications.

The Power of the "O" Shape

The large, rounded shape of a bow shackle is its biggest advantage. This shape allows it to handle loads from various angles without putting dangerous stress on the body. Unlike a D shackle, the load doesn’t have to be perfectly in-line. The bow is designed to distribute forces more evenly, which is critical when you have two, three, or even four sling legs pulling in different directions. The wider opening also provides more room, making it perfect for connecting to synthetic slings or multiple wire rope eyes.

Handling Multiple Slings

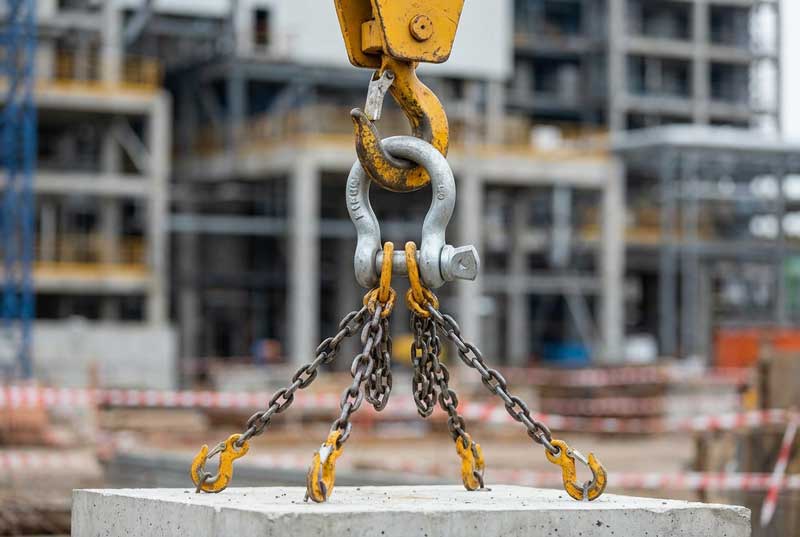

This is where bow shackles really shine. When you use a bridle sling (a sling with multiple legs), all legs must connect to the crane hook. A bow shackle is the perfect connector for this. It provides a single, secure attachment point that can accommodate all the sling eyes and handle the angular forces they create.

Does the Pin Type Make a Difference?

You’ve chosen the shackle body, but what about the pin? The wrong pin can loosen during a lift or be difficult to use. A secure connection is everything in lifting.

Yes, the pin type is critical for safety. Screw pins are for temporary lifts where quick connection is needed. Bolt-type pins offer more security for long-term installations or where the load might rotate, as the cotter pin prevents the nut from backing out.

The shackle body gets all the attention, but the pin is just as important. It’s the part that closes the loop and secures the connection. I always ask my clients about the application so we can choose the right pin type. It’s a small detail that makes a big difference in safety.

Screw Pin Shackles

These are very common because they are so easy to use. You just screw the pin in until it’s tight. They are perfect for temporary jobs or applications where you need to attach and detach the shackle often. However, if the load can shift or rotate, there’s a small chance the pin could unscrew over time. That’s why they are not recommended for permanent or long-term installations. For every lift, you should always check that the pin is tight.

Bolt Type Shackles

For more security, you need a bolt-type shackle. This design uses a bolt, a nut, and a cotter pin. Once you tighten the nut, you insert the cotter pin through the hole in the bolt. This combination mechanically locks the nut in place. It cannot unscrew, even with vibration or load rotation. This makes it the best choice for semi-permanent connections or critical lifts where you can’t afford any risk of the pin loosening.

Conclusion

In short, choose D shackles for straight-line lifts. Use bow shackles for multi-directional loads or multi-leg slings. Always match the shackle and its pin to your specific job.
