What Are Lever Load Binders?

Transporting heavy cargo presents risks if not secured properly. Loads can shift, leading to damage or accidents. We use lever load binders to tighten chains, ensuring your cargo stays firmly in place during transit.

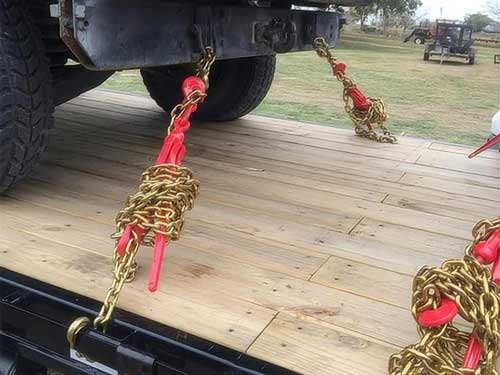

Lever load binders, also known as snap binders, are tools designed to tighten chains and secure heavy loads. They use a lever mechanism for quick operation, applying tension to chains to prevent cargo movement during transport, enhancing safety and stability.

Understanding these tools is key for anyone in the transport or rigging industry. I’ve spent years working with rigging hardware, and lever binders are a common sight. You need to know how they work, their pros and cons, and how to use them safely. Let’s dive deeper into what makes lever load binders a go-to for many professionals.

How Do You Use a Lever Action Load Binder?

Using a lever binder seems simple, but incorrect use can be dangerous. You might be wondering about the right steps. Following a proper procedure ensures both safety and effectiveness when securing your load.

To use a lever action load binder, inspect the equipment, position the chain over the cargo, attach the binder to the chain ends, and then use the lever to apply tension. Ensure the load is within the binder’s working load limit.

Using a lever load binder correctly is very important for safety. I always tell my team to follow these steps carefully. It’s not just about getting the job done; it’s about protecting the cargo, the vehicle, and people.

Step-by-Step Guide to Using Lever Binders

1. Inspect Your Equipment: Before you even think about securing a load, check your lever binder and chains. Look for any signs of wear, damage, or corrosion on all components. I’ve seen accidents happen because someone used a damaged binder. A quick check can save a lot of trouble later. Make sure the hooks are not bent and the lever moves smoothly.
2. Choose the Right Binder: Not all binders are the same. You need to select a binder that is compatible with your chain size and the weight of the load you are securing. Always check the manufacturer’s specifications for the working load limit (WLL). The total WLL of your binders and chains must be more than the weight of the cargo. Using an undersized binder is asking for trouble.
3. Position the Chain: Place the transport chain over the cargo. Make sure the chain is distributed evenly and is free of any twists or knots. Attach the chain ends to secure anchor points on your trailer or truck bed. A well-positioned chain makes the binder’s job easier and more effective.
4. Attach the Binder: Connect the hooks of the lever binder to the chain. One hook connects to one end of the chain or a section of the chain, and the other hook connects to another point on the chain, effectively creating a loop that will be tightened. Ensure the hooks are securely seated.
5. Tighten the Binder: This is where the lever action comes in. Operate the lever to pull the chain ends closer, removing slack and applying tension. You will need to apply significant force to the handle to tighten it fully. The handle stores energy when tensioned.
6. Secure the Handle: Once the chain is tight, ensure the lever handle is properly secured in its locked position. Some lever binders have a mechanism or design that helps keep the handle from accidentally releasing.

Safety Precautions

• Never Use a "Cheater Bar": It’s very tempting to use a pipe or bar to extend the handle for extra leverage. Don’t do it. This is dangerous and can damage the binder or cause it to fail suddenly. Lever binders are designed to be tightened with a certain amount of force, and exceeding that can lead to catastrophic failure.
• Be Aware of Handle Recoil: Lever binders store a lot of energy in the handle when tensioned. When releasing the binder, be very careful as the handle can snap back with considerable force. This "snapback" can cause serious injuries if you’re not prepared. Always maintain a firm grip and stand clear of the handle’s path.
• Wear Protective Gear: I always recommend wearing gloves and safety glasses when operating load binders. It’s a simple precaution that can prevent injuries.

I remember a time when a new operator on our team tried to use a cheater bar. Luckily, a supervisor spotted him just in time. We use that incident in our training now to emphasize how critical it is to follow the correct procedures. Proper use is not just about efficiency; it’s fundamentally about safety.

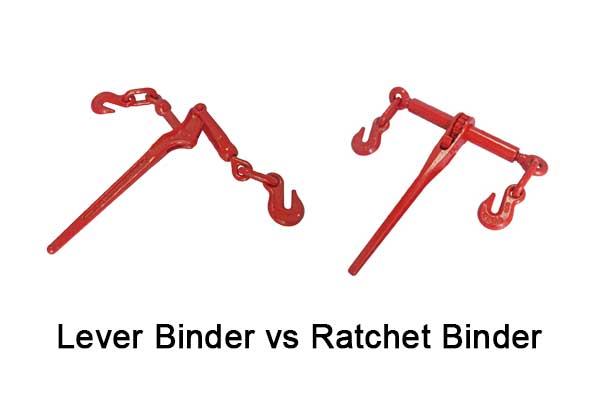

Are Ratchet Binders Better Than Lever Chain Binders?

Clients often ask me this question, expecting a simple "yes" or "no." The truth is, it depends on the situation. Both types have their place in securing cargo, and one isn’t always superior to the other.

Ratchet binders often provide more precise tension control and are generally considered safer due to no handle snapback, but lever binders are quicker to operate. The "better" choice depends on the specific application, load type, and user preference.

Choosing between ratchet and lever binders is a common point of discussion for procurement officers like Mark Shenng, who are looking for both quality and efficiency. As a supplier, we offer both types because we understand that different jobs have different needs. Let’s break down their differences to help you decide.

Lever Binders (Snap Binders)

As we’ve discussed, lever binders use a lever mechanism to tighten the chain.

• Pros:

  • Quick to Use: They are very fast to engage and disengage, which is great when you’re securing multiple loads or are short on time. I’ve seen experienced truckers secure a load with a lever binder in seconds.
  • Simple Design: They have fewer moving parts compared to ratchet binders. This can mean less maintenance and a generally lighter weight, making them easier to handle.
  • Lighter Weight: Often, lever binders are lighter than ratchet binders of similar capacity, which can be a small but noticeable difference if you’re handling many of them throughout the day.

• Cons:

  • Snapback Risk: This is the biggest safety concern. The handle stores energy and can snap back forcefully during release if not handled carefully. This requires operators to be well-trained and cautious.
  • Requires Strength: You need more physical force to operate a lever binder, especially to get that final bit of tension. This can be challenging for some users or when working in awkward positions.
  • Less Precise Tension: It’s harder to make small adjustments to the tension. It’s more of an "all or nothing" tensioning process.

Ratchet Binders

Ratchet binders use a ratcheting mechanism with a handle that you crank back and forth to gradually tighten or loosen the chain.

• Pros:

  • Enhanced Safety: The gradual ratcheting action eliminates the risk of snapback, making them generally safer to operate, especially when releasing tension. This is a big plus for companies focused on minimizing workplace injuries.
  • Precise Control: They allow for small, incremental adjustments to the chain tension. This is very useful for heavy, delicate, or unevenly shaped loads where precise tension is important.
  • Easier to Operate: Less physical strength is needed to achieve high tension compared to lever binders. The mechanical advantage of the ratchet does most of the work.

• Cons:

  • Takes More Time: Securing and releasing a load with a ratchet binder takes longer because of the gradual ratcheting process. If speed is your top priority, this can be a drawback.
  • Slightly Heavier/Bulkier: They often have more components and can be a bit heavier or bulkier than lever binders.
  • More Moving Parts: The ratchet mechanism has more moving parts, which might require more maintenance over time, though good quality ones are very durable.

Which One Should You Choose?

Here’s a simple table to help summarize:

For someone like Mark, who is quality-sensitive but also seeks competitive pricing, the decision might come down to the specific application within his distribution model. If his rebranded products are high-value and require careful handling, the extra safety and precision of ratchet binders might be worth the slightly higher operational time. If he’s dealing with robust goods where speed is key to turnover, lever binders might be preferred, assuming his staff is well-trained. We often advise customers to have a mix if their operations are diverse.

What Is the Mechanical Advantage of a Lever Binder?

People often wonder how a relatively simple tool can exert so much force. The answer lies in basic physics. The lever binder is a classic example of a simple machine at work, making it easier to secure heavy loads.

The mechanical advantage of a lever binder comes from its handle, which acts as a lever. This allows the user to multiply their applied force, creating the high tension needed to secure cargo chains effectively.

Understanding the mechanical advantage helps appreciate why these tools are so effective. It’s not magic; it’s leverage. When I explain this to customers, especially those new to rigging, they often have an "aha!" moment. It highlights the smart design behind this essential tool.

How Leverage Works in a Lever Binder

A lever binder primarily consists of a handle and two hooks or connection points. Here’s a breakdown of how it achieves mechanical advantage:

1. The Handle as a Lever: The handle of the binder is the lever itself. When you attach the binder’s hooks to the chain and pull or push the handle, you are applying force to one end of this lever.
2. Fulcrum Point: The binder is designed so that there’s a pivot point (fulcrum) around which the lever rotates. This pivot point is typically located where the handle connects to the binder body or one of the hook assemblies.
3. Force Multiplication: The principle of a lever states that a smaller force applied over a longer distance (your effort on the handle) can overcome a larger resistive force over a shorter distance (the tension in the chain). The length of the handle relative to the distance from the fulcrum to the point where force is applied to the chain mechanism determines the mechanical advantage. The longer the handle (within practical limits), the greater the force multiplication. This allows an operator to generate thousands of pounds of tension in the chain with a manageable amount of manual effort.
4. Storing Energy: As the lever is moved to its final, over-center locking position, it tightens the chain and stores energy within the handle and the tensioned system. This stored energy is what keeps the chain tight, but it’s also what creates the potential for snapback if released improperly.
5. Key Components:
   • Handle: Provides the leverage for tightening. Its length is crucial for the amount of force that can be applied.
   • Hooks: Connect the binder to the chain, transferring the force from the binder to the chain.
   • Swivel Joints: Many lever binders, like our standard ones, feature ball and socket swivel joints at the hook assemblies. These permit a straight-line pull and allow the hooks to swivel 360 degrees for easier handling and alignment, which ensures the force is applied efficiently.

The design is engineered to maximize the tension applied to the chain with the least amount of operator effort. For instance, our Standard Lever Type Load Binders are made from quenched and tempered alloyed steel with extra heavy construction at the leverage point to prevent spreading and ensure easy release. This robust construction is vital to handle the forces involved.

When you use a lever binder, you’re essentially using your strength, amplified by the lever, to pull the chain segments together. This is why even though the task is demanding, it’s physically possible to secure very heavy loads. It’s a testament to how simple machines can make demanding jobs much more manageable.

Conclusion

Lever load binders are essential tools for securing cargo, using a simple lever for quick tensioning. Understanding their use, safety, and alternatives helps ensure secure transport.
