What Do You Need to Know About Heavy Duty Turnbuckles?

leading paragraph:
Struggling with loose cables or rods? Worried about connections failing under heavy loads? Heavy duty turnbuckles offer the strong, adjustable tension you need for security.

snippet paragraph:
Heavy duty turnbuckles are essential for adjusting tension and securing loads in rigging, construction, and marine applications. They provide strong, reliable connections when you need to pull objects together or create precise tension in wire ropes, rods, or cables.

Transition Paragraph:
You see these devices everywhere, from ship riggings to bridge supports. But what makes them "heavy duty," and how do you choose the right one? Let’s explore more. This information will help you make better choices for your projects.

How Much Weight Can a Turnbuckle Hold?

leading paragraph:
Unsure if a turnbuckle can handle your load? Overloading can lead to disaster. Knowing its capacity is crucial for safety and success in any project.

snippet paragraph:
A turnbuckle’s capacity is defined by its Working Load Limit (WLL). This is the maximum force it can safely handle. Always check the WLL, never exceed it, to ensure safe operation. Heavy duty turnbuckles have higher WLLs.

Dive deeper Paragraph:
The Working Load Limit¹, or WLL, is the most important number here. It’s not just a suggestion. It’s a safety standard. For our heavy duty turnbuckles at UU LIFTING, we take WLL very seriously. Several things affect how much weight a turnbuckle can hold.
The material is key. Forged steel is common for heavy duty types because it’s strong.
The size also matters. Bigger turnbuckles generally hold more weight.
The design of the end fittings (like eyes, jaws, or hooks) plays a part too.
Manufacturers determine the WLL through testing. They often apply a safety factor. This means the turnbuckle can actually hold more than its WLL before breaking, but you must never go beyond the WLL in real use. I always tell my customers, like Mark, to check the manufacturer’s specifications. If it’s not clearly marked, ask for documentation. This avoids problems later.

How Strong Is a Turnbuckle?

leading paragraph:
Wondering about the actual strength of a turnbuckle? It’s more than just its size. The material and how it’s made determine its ultimate breaking point.

snippet paragraph:
A turnbuckle’s strength comes from its material, usually forged steel for heavy-duty versions, and its design. Its ultimate strength (breaking strength) is much higher than its Working Load Limit, ensuring a safety margin.

Dive deeper Paragraph:
When we talk about strength, we mean a few things. There’s the tensile strength of the material itself. This is how much force it can take before it starts to permanently deform or break. For heavy duty turnbuckles, we often use high-tensile, forged carbon steel or alloy steel. Forging aligns the grain structure of the metal, making it tougher and more resistant to fatigue.
Then there’s the breaking strength of the turnbuckle as a whole unit. This is typically several times higher than the WLL. For example, a common safety factor for rigging gear is 5:1. This means a turnbuckle with a WLL of 2 tons has a minimum breaking strength of 10 tons. This safety margin is vital. It accounts for unexpected shock loads or slight variations.
At UU LIFTING, our manufacturing process includes careful heat treatment. This further enhances the strength and durability of our turnbuckles. We provide material certifications. This gives customers like Mark peace of mind. They know they are getting a product that meets strength specifications. The threads are also critical. Well-formed, strong threads ensure the turnbuckle can hold tension without stripping.

Can Turnbuckles Be Used for Lifting?

leading paragraph:
Can you use any turnbuckle for lifting? This is a common question. Using the wrong one for lifting can be extremely dangerous and lead to serious accidents.

snippet paragraph:
Generally, standard turnbuckles are designed for tensioning or lashing, not for lifting. Only turnbuckles specifically designed, rated, and certified for lifting should ever be used for such applications. Always check.

Dive deeper Paragraph:
This is a very important point. Most turnbuckles you see are for adjusting tension in stationary applications. Think guy wires, fences, or securing cargo. They are not designed for dynamic lifting.
Why not? Standard turnbuckles might not have the necessary safety features or the same rigorous testing for overhead lifting. The threads might not be designed for the stresses of a dynamic lift. If a turnbuckle fails during a lift, the consequences can be catastrophic.

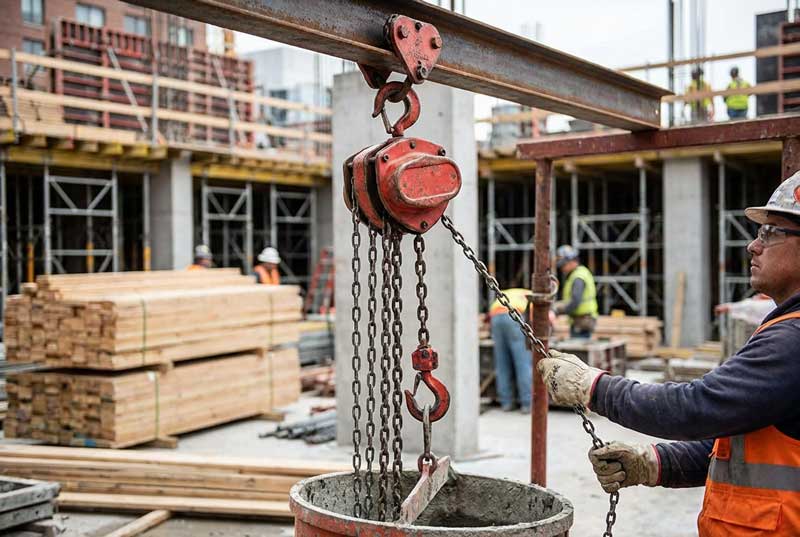

However, there are special "lifting turnbuckles" or "rigging screws" that are designed for lifting. These are usually more robust. They have specific markings indicating they are suitable for lifting and will have a WLL clearly stated for lifting purposes. At UU LIFTING, we are very clear about this. If a customer asks about using our standard turnbuckles for lifting, we advise against it unless it’s a model specifically made and certified for that. I always tell Mark, if you need to lift, use dedicated lifting equipment like chain blocks or lever hoists, or ensure the turnbuckle is explicitly rated for lifting. It’s just not worth the risk otherwise. Always prioritize safety and consult standards.

What Is Another Name for a Turnbuckle?

leading paragraph:
Heard different terms for turnbuckles? This can be confusing when sourcing parts. Knowing alternative names helps you find exactly what you need for your project.

snippet paragraph:
Turnbuckles are also known as stretching screws, bottlescrews, or barrel strainers. The name can vary by region or specific industry. Knowing these terms helps in communication and sourcing products.

Dive deeper Paragraph:
Yes, turnbuckles go by several names. This can sometimes make searching online or talking to suppliers a bit tricky if you’re not aware of them. "Stretching screw" is quite descriptive, as that’s exactly what they do – stretch or pull things together to create tension. "Bottlescrew" is another common one, especially in the UK and marine industries. This name comes from the shape of the body, which can resemble a bottle. "Barrel strainer" is also used sometimes.
In my experience dealing with international clients, like Mark who sources from different countries, it’s helpful to be familiar with these variations. When he’s looking for suppliers on Google or at trade shows, using different keywords can yield more results. For us at UU LIFTING, we try to use the most common terms in our product descriptions. We want to make it easy for buyers to find our heavy duty turnbuckles. So, whether you call it a turnbuckle, stretching screw, or bottlescrew, we likely have what you need. Clarity in communication is key to avoid misunderstandings, especially when discussing technical specifications and quality.

How Many Types of Turnbuckle Are There?

leading paragraph:
So many turnbuckle ends! Confused by hooks, eyes, and jaws? Choosing the right end fittings is vital for a secure and effective connection in your application.

snippet paragraph:
Turnbuckles come with various end fitting combinations: Eye & Eye, Hook & Hook, Jaw & Jaw, Jaw & Eye, and Hook & Eye. Each type suits different connection needs and applications.

Dive deeper Paragraph:

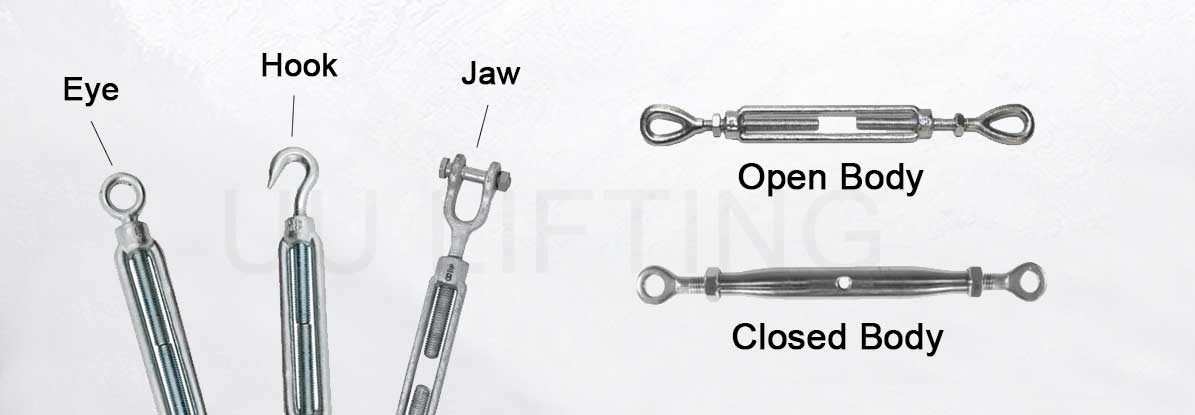

The main differences between turnbuckle types come down to their end fittings. These determine how the turnbuckle connects to other rigging components. Here are the common ones:

• Eye and Eye (EE): Both ends have a closed loop (eye). These are used for permanent or semi-permanent connections, often with shackles or wire rope thimbles.
• Hook and Hook (HH): Both ends have open hooks. These allow for quicker connection and disconnection but are generally not for applications where there’s a risk of unhooking. They are good for temporary tensioning.

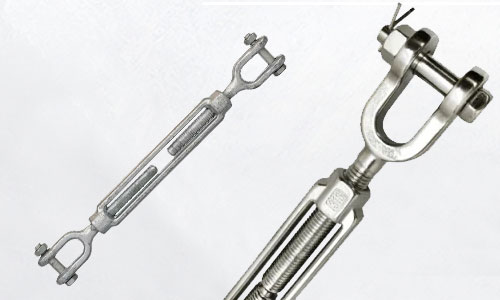

• Jaw and Jaw (JJ): Both ends have a U-shaped jaw with a pin and cotter pin. These provide a very secure connection, often to flat plates or other fittings with holes. This is a popular choice for heavy duty applications.
• Jaw and Eye (JE): One end is a jaw, the other is an eye. This offers versatility for connecting different types of fittings.
• Hook and Eye (HE): One end is a hook, the other is an eye. This combines the quick connection of a hook with the more secure connection of an eye.

At UU LIFTING, we offer all these types in various sizes and materials, including galvanized steel and stainless steel for corrosion resistance. Mark, for example, often orders Jaw & Jaw and Eye & Eye heavy duty turnbuckles for his distribution business because his customers need strong, reliable connections. We can also customize end fittings based on specific requirements. The choice depends entirely on what you are connecting and the forces involved.

Conclusion

Heavy duty turnbuckles are vital for safe tensioning. Understanding WLL, types, and proper use ensures your project’s success. We at UU LIFTING provide quality, customizable options.
