What Is a Rigging Shackle?

Problem: Need to connect lifting gear safely and securely? Agitation: Using the wrong component can lead to costly failures. Solution: Rigging shackles provide a reliable connection for lifting.

A rigging shackle is a U-shaped metal connector with a pin or bolt. It’s used to link lifting equipment like slings, ropes, and chains to loads or to each other. This ensures a strong and dependable connection for various lifting jobs.

Understanding shackles is key to safe and efficient lifting. As someone in the lifting business for years, I’ve seen how crucial the right shackle is. Let me share more about these vital tools. We want you to choose wisely for your projects.

What’s the Difference Between a Shackle and a Clevis?

Problem: Confused by terms like shackle and clevis? Agitation: This confusion can lead to incorrect part selection. Solution: Knowing the difference helps you pick the right tool.

A shackle is mainly a removable connector for lifting and rigging. A clevis is often a U-shaped bracket for pivoting, typically with a clevis pin. It’s more for mechanical linkage than direct heavy lifting connections.

Let’s look closer at shackles and clevises. As a manufacturer, we deal with specific connection needs all the time.
A shackle, as we make them at UU LIFTING, is designed for connecting and disconnecting rigging components like wire ropes, chains, and slings. Think of it as a key link in a lifting setup. They come in various forms, like D-shackles or bow shackles, and use pins (screw pins, bolt-type pins) to close the "U" shape. Their primary job is to handle loads, often in multiple directions if it’s a bow shackle.
A clevis, on the other hand, is also U-shaped. However, it typically serves as a mounting point or a part of a joint that allows pivoting or articulation. You might find a clevis at the end of a rod, a lever, or a hook. It usually uses a clevis pin, which might have a cotter pin or a simple head. While some clevises can bear loads, their design is more about creating a secure pivot point rather than being a primary lifting connector like a shackle.

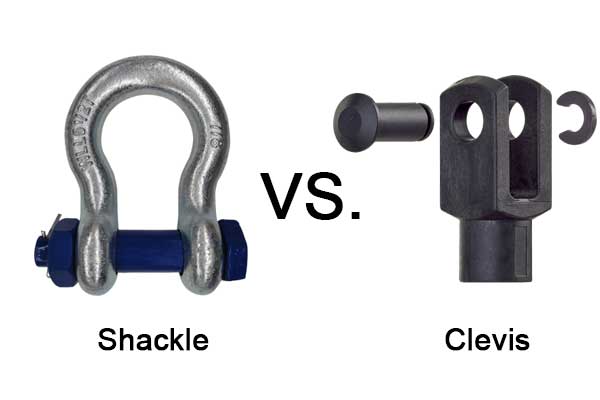

Here’s a simple table to show the differences:

So, when you need a strong, reliable, and often temporary connection for lifting, you choose a shackle. If you need a point for something to pivot or connect in a mechanical assembly, a clevis is more likely what you’re looking at.

What Are the Three Main Types of Shackles?

Problem: So many shackle types out there. Agitation: Choosing incorrectly can compromise your lift’s safety. Solution: Understand the main types to match your specific application.

The three main types are D-shackles (chain shackles) for straight-line pulls, Bow shackles (anchor shackles) for multi-directional loads, and those differentiated by pin type like Screw Pin or Bolt-Type shackles for different connection needs.

Let me break down these main shackle types. We manufacture a variety, and I know how important it is to pick the right one for the job.

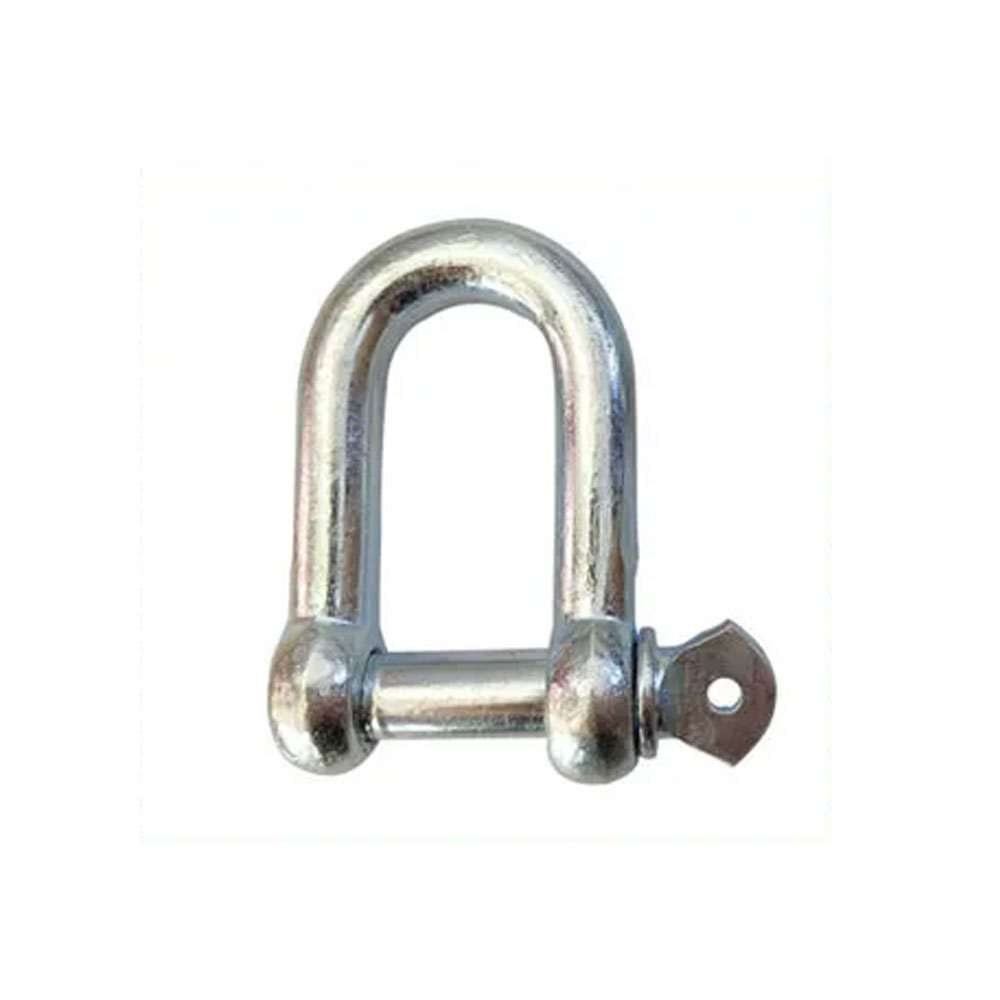

First, we have D-Shackles, also known as chain shackles. These have a narrower "D" shape. They are excellent for in-line lifts or pulls where the load is applied in a straight line. Their design is compact, and they are very strong for their size. We often see these used with chain slings.

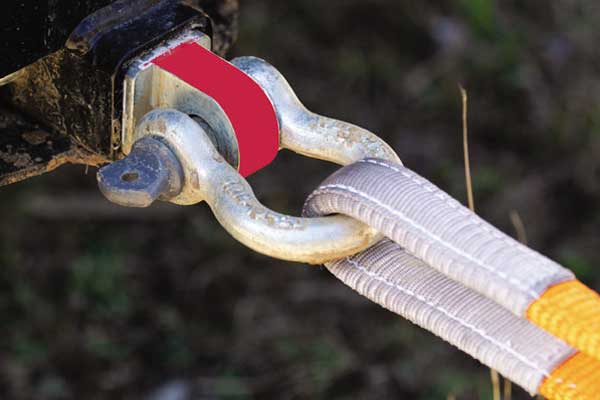

Second are Bow Shackles, sometimes called anchor shackles. These have a larger, more rounded "O" or bow shape. This wider bow allows them to handle loads from multiple angles, not just straight-line pulls. This makes them very versatile, especially if you have a multi-leg sling or if the load might shift slightly. They can also accommodate wider straps or connections better than a D-shackle.
Third, we can categorize shackles by their Pin Type. This is a crucial distinction.

• Screw Pin Shackles: These have a threaded pin that screws directly into the shackle body. They are very easy and quick to connect and disconnect. This makes them ideal for temporary lifts or applications where you need to assemble and disassemble your rigging frequently. However, you must ensure the pin is tightened properly before each lift.
• Bolt-Type Shackles: These use a bolt, a nut, and usually a cotter pin to secure the connection. This setup is more secure and less likely to come undone due to vibration or rotation. We recommend these for more permanent or long-term installations, or in situations where the pin might rotate under load, which could unscrew a screw pin.
  Here’s a quick comparison:

At UU LIFTING, we provide all these types because we know different jobs have different needs.

What Is a Shacklebolt?

Problem: Heard the term "shacklebolt" and not sure what it means? Agitation: Technical jargon can be confusing when you need clarity. Solution: It simply refers to a specific part of a shackle.

A "shacklebolt" isn’t a separate type of shackle. It usually refers to the pin assembly in a bolt-type shackle. This assembly includes a bolt, a nut, and a cotter pin for secure fastening.

Let’s clear up any confusion about the term "shacklebolt." In my experience, this term usually points to the securing mechanism of a specific shackle type.

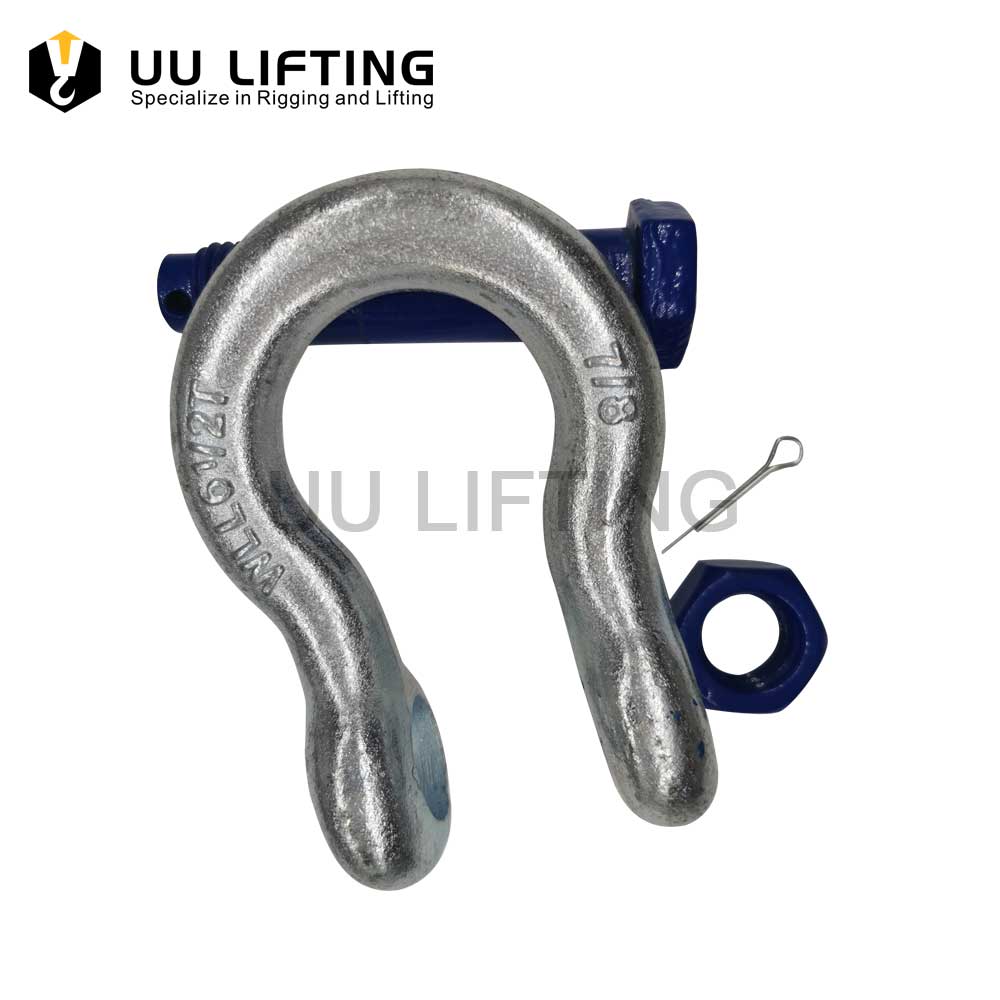

When we talk about a bolt-type shackle, the "shacklebolt" is essentially the pin that closes the shackle. Unlike a screw pin that threads directly into the shackle body, a bolt-type pin consists of three parts:

1. The Bolt: This is the smooth or shouldered pin that passes through the eyes of the shackle.
2. The Nut: This threads onto the end of the bolt to secure it.
3. The Cotter Pin (or Split Pin): This small pin passes through a hole in the threaded end of the bolt (beyond the nut) and is then spread. This prevents the nut from accidentally loosening or backing off, especially under vibration or dynamic loads.
   This design provides a very secure connection. That’s why we recommend bolt-type shackles for applications that are more permanent or where the shackle might experience movement or rotation that could potentially unscrew a screw pin.
   Think of situations like semi-permanent mooring, or critical lifts where there’s absolutely no room for the pin to work loose. The shacklebolt assembly ensures the connection stays intact. While a screw pin is great for quick jobs, the shacklebolt offers that extra layer of security for long-term or high-risk applications. At UU LIFTING, safety and reliability are paramount, so we ensure our bolt-type shackles have robust pin assemblies.

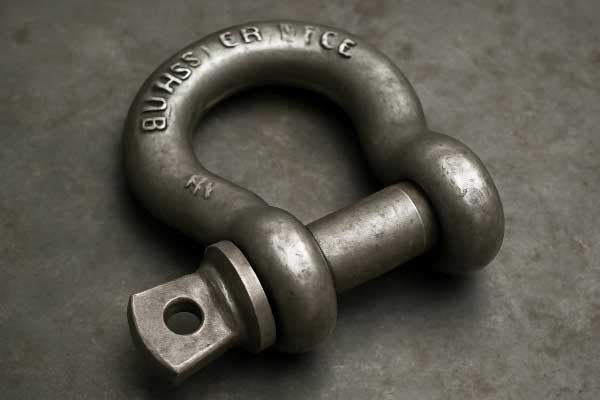

What Is a Super Shackle?

Problem: You hear "Super Shackle" and wonder if it’s just marketing. Agitation: Could you be missing out on superior performance for heavy lifts? Solution: Understand what makes these shackles "super."

A "Super Shackle" generally refers to a high-capacity shackle, often made from quenched and tempered alloy steel. These shackles offer a higher working load limit (WLL) and better strength-to-weight ratio than standard carbon steel shackles.

The term "Super Shackle" often comes up, especially when discussing heavy-duty lifting. While it can sometimes be a brand name, it generally describes a shackle with enhanced capabilities. As a manufacturer, when I think "super," I think about superior materials and performance.
What makes a shackle "super" usually comes down to a few key things:

1. Material: These are typically made from alloy steel that has been quenched and tempered. This heat treatment process significantly increases the steel’s strength, toughness, and resistance to fatigue. Standard shackles are often made from carbon steel, which is strong, but alloy steel takes it to another level.
2. Working Load Limit (WLL): Super shackles will have a considerably higher WLL for the same physical size compared to a standard carbon steel shackle. This means you can lift heavier loads with a comparatively lighter shackle, which can be a big advantage in many rigging scenarios.
3. Design Factor: They often boast a high design factor (sometimes called safety factor), meaning their breaking strength is many times higher than their WLL. For example, some might have a 5:1 or 6:1 design factor.
4. Durability: The alloy materials and manufacturing processes give them excellent durability and resistance to wear and deformation under extreme loads.
   At UU LIFTING, we produce shackles from various materials, including alloy steel. These are designed for demanding jobs where you need maximum strength and reliability. So, if your project involves very heavy lifts or requires a higher performance standard, asking for an alloy steel shackle, or what some might call a "super shackle," is the way to go. They are built for the toughest tasks in construction, offshore, and heavy industry.

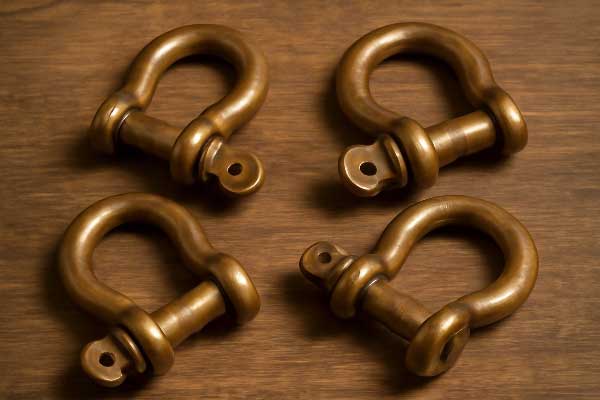

What Is Bronze Shackles?

Problem: Encountered bronze shackles and curious about their specific use? Agitation: Unsure if they fit your needs compared to steel? Solution: Learn about bronze’s unique, niche advantages.

Bronze shackles are specialized connectors used for their non-sparking and corrosion-resistant properties. They are ideal for marine environments or areas with explosive atmospheres, though generally not as strong as steel shackles of the same size.

While most of our shackles at UU LIFTING are made from carbon steel, alloy steel, or stainless steel, it’s worth knowing about bronze shackles as they serve important niche applications. I’ve seen customers inquire about them for very specific reasons.
The main advantages of bronze shackles come from the properties of bronze itself:

1. Non-Sparking: This is a critical feature. In environments where flammable gases, vapors, or dust are present (like in the oil and gas industry, chemical plants, or some mining operations), a spark from steel hitting steel could be catastrophic. Bronze alloys are non-sparking, making them much safer in these hazardous locations.
2. Corrosion Resistance: Bronze, particularly aluminum bronze or silicon bronze, offers good resistance to corrosion, especially from saltwater. This makes bronze shackles a choice for some marine applications, although stainless steel is also very common here.
3. Non-Magnetic (in some alloys): Some bronze alloys are non-magnetic, which can be important for applications around sensitive electronic equipment or in minesweeping, for instance.
   However, it’s important to note that bronze shackles generally have a lower tensile strength and working load limit compared to steel shackles of the same size. They are more expensive too. So, their use is typically reserved for situations where their specific non-sparking or corrosion-resistant properties are absolutely necessary and outweigh the need for the higher strength of steel. If you’re working in potentially explosive atmospheres or have unique corrosion challenges, a bronze shackle might be the specialized solution you need. While it’s not a standard part of our main product line, understanding these special cases is part of being a comprehensive lifting solutions provider.

Conclusion

Choosing the right rigging shackle is vital for safety and efficiency. Understand types, materials, and load limits to ensure secure lifting operations for every job.
