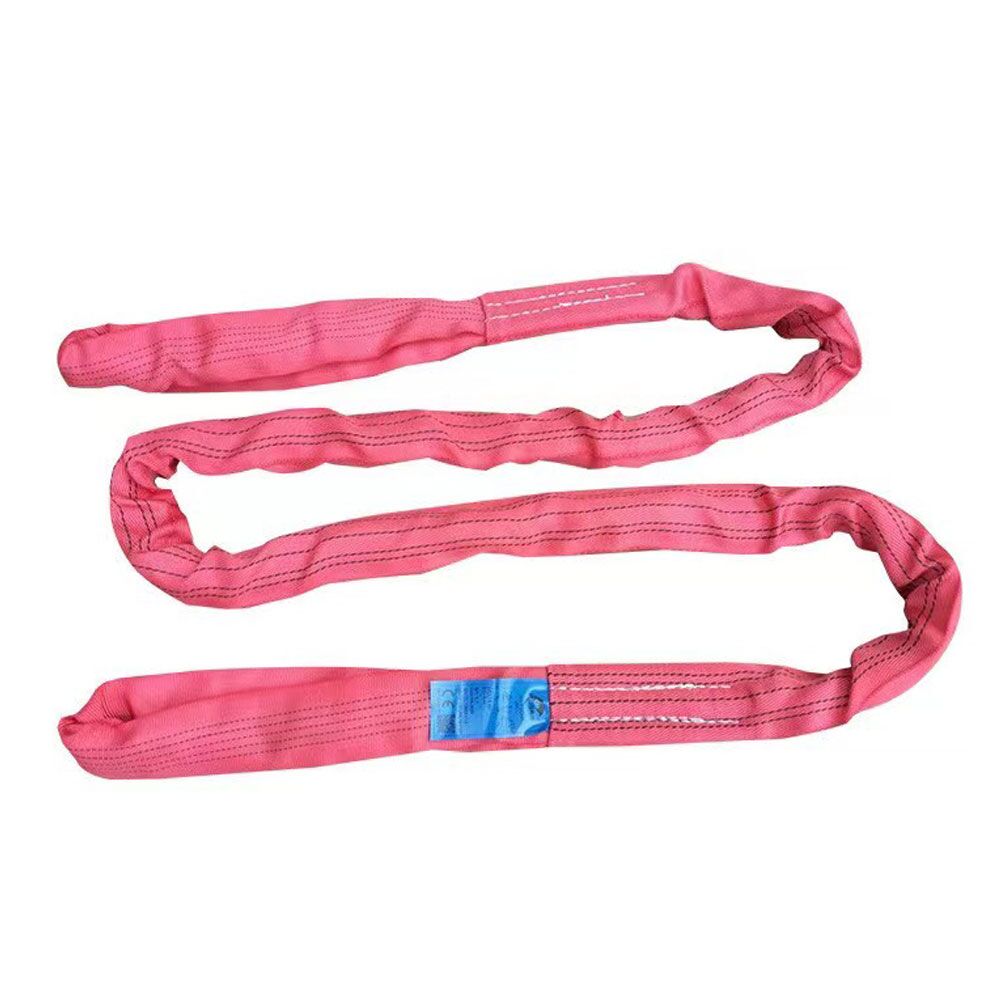

Eye-eye Round Slings

Specification

Additional information

Safety factor

5:1,6:1,7:1,8:1 all available

Length

Color

Color code

Certificate

CE/GS

Standard

ISO4878, EN1492-2, ASME B30.9, AS 4497

Characteristic

PU impregnated ,WLL & Length printed,Low elongation

Package

Single packed in shrinking foil or plastic with Certificate of Conformity

Customized

Logo Print on the webbing is available

Description

Model Color WLL Approx Approx Width Length(m) Weight(kg)    (6:1)
Thickness (mm) Minimum Maximum
(mm)
UL10-01 Violet 1T 15 50 1.5 80 0.33
UL20-02 Green 2T 16 60 1.5 80 0.47
UL30-03 Yellow 3T 18 70 1.5 80 0.68
UL40-04 Grey 4T 20 80 1.5 80 0.85
UL50-05 Red 5T 25 90 1.5 80 1.06
UL60-06 Brown 6T 27 90 2 80 1.28
UL80-08 Blue 8T 28 100 2 80 1.59
UL100-10 Orange 10T 29 110 2 80 2.1
UL120-12 Orange 12T 30 125 2 80 2.6

Our eye-eye polyester round slings have a load-bearing core inside an outer cover and an eye at each end. Choose the rated load, length, and safety factor for the planned lifting method and working environment. We manufacture these slings in our own factory for wholesale orders from one pallet. Factory test reports, custom brand labels, and packaging are available on request. Send us the required specifications, quantity, and destination for a quote.

Eye-eye Round Slings
Eye-eye Round Slings

Features:

Eye-eye round slings have a load-bearing polyester core inside a cover and a lifting eye at each end. Rated loads and lengths vary by model. Check the exact product’s label and specifications, and inspect the cover and eyes before use.

Benefits:

The two eyes provide connection points for compatible lifting equipment. This product is available in different rated loads and lengths; confirm the exact model’s marked capacity for your planned lift. For wholesale orders, we can provide factory test reports, custom brand labels, and packaging on request.



Testing
Testing



Don’t exceed the weight limit.

Check the rated capacity on the label of the exact sling before use. The permitted load depends on the lifting method and sling angle. Do not assume that adding more slings automatically makes a lift safe; the load may not be shared equally. If the load or lifting arrangement is uncertain, ask a qualified lifting specialist to select the equipment.

Don’t twist or knot the sling.

Do not knot, twist, or kink a round sling to shorten or adjust it. Check that the sling is correctly positioned before lifting. If you notice a problem during a lift, stop the operation and follow your site’s lifting procedure; do not adjust a sling while it is carrying a load.

Don’t use a damaged or worn sling.

Inspect the sling and its label before use. Remove it from service if the cover is cut or worn enough to expose the load-bearing yarn, if the yarn is damaged, or if you see heat or chemical damage. Do not use a sling with a missing or unreadable capacity label. Have a qualified person assess any sling removed from service before it is used again.



Dyeing
Dyeing



Don’t use the sling in extreme temperatures.

Eye-eye round slings should not be used in extreme hot or cold temperatures. High temperatures can cause the sling to weaken and lose its load-bearing capacity, while cold temperatures can make the sling brittle and prone to cracking or breaking. Always check the manufacturer’s guidelines for the recommended temperature range for your specific sling. If you need to use a sling in extreme temperatures, consider using a different type of sling that is designed for those conditions.

Don’t use the sling for lifting people or animals.

These slings are designed for lifting materials, not people or animals. Never allow anyone to ride the sling or a suspended load. Any task involving the lifting of people requires equipment specifically designed for that purpose.

POLYESTER SLINGS PROCESS
The polyester slings process is roughly divided into: 1. Purchasing raw materials 2. Warping 3. Ribbon 4. Testing 5. Dyeing 6. Cutting 7. Sewing 8. Testing 9. Packing 10. Loading
Raw Material
1. Raw Material
Warping
2. Warping
Webbing
3. Webbing
Testing
4. Testing
Dyeing
5. Dyeing
Cutting
6. Cutting
Sewing
7. Sewing
Examination
8. Examination
Packing
9. Packing
Loading
10. Loading
