What Are Shackles Used For?

Are you confused about using shackles correctly for heavy lifting? A small mistake can lead to big problems. Understanding their purpose is key to keeping your operations safe and efficient.

Shackles are strong, U-shaped metal connectors used to create a secure link in rigging and lifting systems. They connect lifting equipment, like hoists or cranes, to slings or directly to a load, ensuring heavy items can be moved safely and effectively in many industries.

Now you know the main job of a shackle. But safe rigging involves more than just the basics. As a manufacturer, I get many specific questions from buyers about how to use them in real-world situations. One of the most common questions I hear from procurement officers, like my American client Mark, is about connecting multiple shackles. It’s a great question, because doing it wrong is a serious safety risk. Let’s explore some of these important safety rules.

Can 2 Shackles Be Used Together?

You need to connect two slings, but your setup is just a little too short. Joining two shackles seems like an easy fix, but if you do it wrong, the connection could fail.

Yes, you can connect two shackles together, but you must do it correctly. The safest method is bow-to-bow. This creates a stable connection that won’t move unexpectedly under load. Never connect two shackles pin-to-pin, as this is an unstable and dangerous configuration.

When you connect two shackles, the goal is to create a connection that is as strong and stable as a single rigging component. The way the parts fit together matters a lot. I always tell my clients that the forces on rigging equipment are huge, so there is no room for "good enough." You have to follow the rules. The main reason for connecting shackles a certain way is to prevent any movement or rotation that could weaken the connection or cause the pin to loosen. A stable connection ensures the load is distributed exactly as the shackle was designed to handle it.

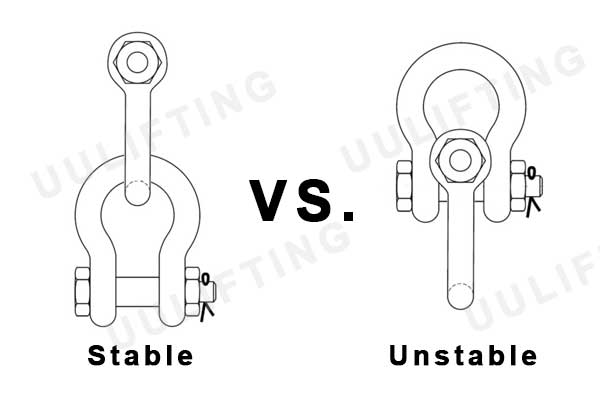

Safe and Unsafe Connection Methods

Why’s Connecting Shackles Pin to Pin Unsafe?

It might look like the pins fit together perfectly. But this creates a hidden danger that can cause the entire lift to fail in a second. Understanding why is critical for safety.

Connecting shackles pin-to-pin is unsafe because the two pins can roll or rotate against each other when the load shifts. This movement can cause a screw pin to loosen and back out. This creates an unstable point that can suddenly break or come apart under load.

The problem with a pin-to-pin connection comes down to physics. Shackles are designed for the load to be centered in the bow (the "U" part). The pin is only there to close the loop and transfer that force across the gap. When you connect two pins, you create a very small contact point. All the force of the lift is focused on that tiny spot. Any small shift in the load can cause the pins to roll against each other. For a screw pin shackle, this rolling action is exactly like unscrewing the pin by hand. It can happen fast and without warning. Even with a more secure bolt-type shackle, the connection is still not stable and creates forces the shackle was not designed to handle. It’s a risk I tell every single one of my clients never to take.

What Are the Consequences of Exceeding a Shackle’s Working Load Limit?

You’re in a hurry and grab the nearest shackle. It looks strong enough, but ignoring its rating is a huge gamble. The consequences of overload are severe and not worth the risk.

Never exceed the Working Load Limit (WLL) marked on a shackle. Doing so can cause the metal to stretch, deform, or break completely, leading to catastrophic failure. This can result in dropped loads, damaged equipment, serious injuries, or even death on the job site.

I once had a potential customer who thought the WLL was just a suggestion. He was looking at the "ultimate breaking strength" and thought he could load the shackle up to that point. I had to explain that the WLL is the only number that matters for safe lifting. The WLL has a built-in safety factor. For example, a quality shackle might have a safety factor of 6:1. This means a shackle with a 1-ton WLL will not break until it has at least 6 tons of force on it. This safety factor accounts for unexpected stress, but it is not extra capacity you can use. Pushing past the WLL enters a danger zone where the metal can be permanently damaged, even if it doesn’t break right away.

Shackle Load Stages

How Does Side Loading Affect a Shackle’s Working Load Limit?

Lifts are not always perfectly straight up and down. When you pull on a shackle from an angle, you create a side load. This can dangerously reduce its strength if you don’t account for it.

Side loading greatly reduces a shackle’s capacity. The WLL rating only applies to in-line pulls. As the angle of the pull increases to the side, the shackle’s true capacity drops fast. Always apply the load in the bow of a shackle, never on the pin.

This is a critical point of training. Only bow-type shackles are designed to handle any side loading at all. Their "O" shape gives them strength against these forces. D-type shackles, with their straight sides, are for in-line pulls only; you should never side-load them. When you do apply a side load to a bow shackle, you must reduce its WLL according to the angle of the pull. Forgetting to do this is the same as overloading the shackle. It’s a common mistake that can lead to failure. That’s why we always provide clear capacity charts to our buyers to help them train their teams correctly.

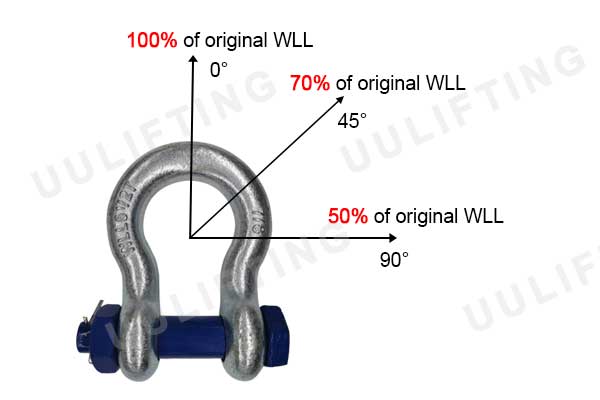

Bow Shackle WLL Reduction for Side Loads

Conclusion

Using shackles is simple when you follow the rules. Always respect the WLL, connect them bow-to-bow, and reduce capacity for side loads to ensure a safe, successful lift.
