Electric Galvanized Din1480 Turnbuckle

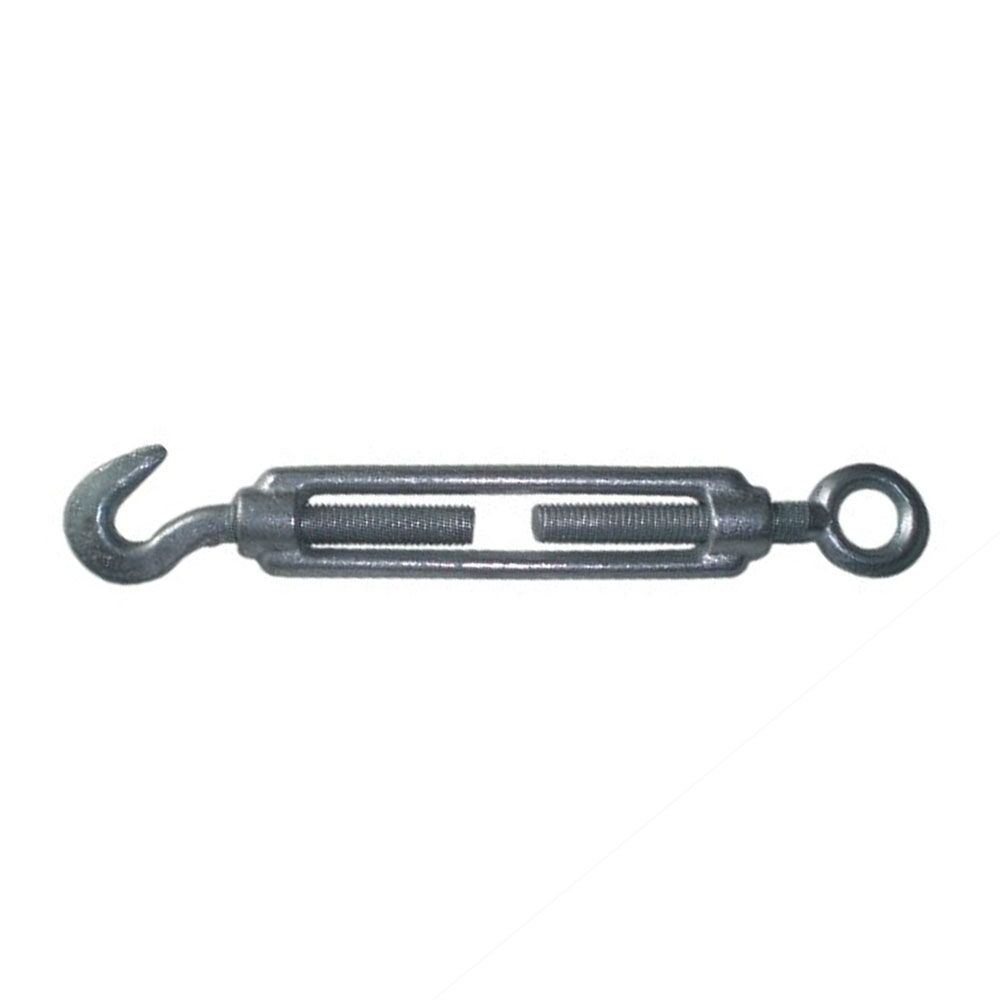

Din1480 Turnbuckle

The Din1480 Turnbuckle is used to tighten the wire rope and adjust the tightness. The OO type is used for occasions where it is not frequently disassembled, the CC type is used for occasions where it is frequently disassembled, and the CO type is used for occasions where one end is frequently disassembled. The other end is not frequently disassembled.
The Turnbuckle is divided into three types: cast malleable steel, ordinary carbon steel, and forging according to different forming methods. There are mainly two kinds of ordinary carbon steel and forging in the market. The ordinary carbon steel turnbuckle screws are mainly used for static binding and stability on unimportant occasions. Scenes, such as garden windbreaks, agricultural greenhouses, etc. Forged turnbuckle screws for lifting, cargo strapping reinforcement. Such as cargo bundling, sling connection, steel structure cable-rod connection, etc., in logistics.
Din1480 turnbuckles are made of high-quality carbon steel, Surface treatment: generally, there are two kinds of electroplating and hot-dip plating, which mainly play a role in preventing rust. Is flawless.It includes eye-eye type,eye-jaw type, and jaw to jaw type. If you need to learn more information, contact us now.

DIN1480-Turnbuckle
DIN1480-Turnbuckle



Thread Body Length L2 L3 b1 L4 d1 L5 Weight
(mm) L1(mm) (mm) (mm) (mm) (mm) (mm) (mm) (kg/pc)
M6 110 80 85 8.5 80 9 172 0.095
M8 110 75 85 11 84 10 182 0.165
M10 125 85 112 13.5 105 14 213 0.029
M12 125 80 117 15.5 115 16 238 0.043
M14 140 90 122 18.5 122 18 263 0.062
M16 170 110 138 19 165 22 320 0.092
M20 200 130 170 20.5 167 24 367 1.63
M22 220 145 185 26 167 27 398 2.20
M24 255 170 205 26 205 27 447 3.00
M30 255 160 225 33 255 31 512 4.60
M36 295 180 255 44 276 43 568 7.68
M42 330 200 340 48 260 49 683 12.9
M48 355 195 360 58 300 58 755 21.0

The flower basket bolt is extended and retracted by the lead screw, which can adjust the tightness of the wire rope. The components can be bundled during component transportation and loose during installation and alignment.
It comprises an adjusting rod with left and right-handed threads, a nut, and a pull rod. The adjusting rod is also fixed with an anti-theft and anti-loosening device connected by a cover plate, a fixing plate, and a guide plate with anti-theft and anti-loosening bolts. The anti-theft and anti-loosening bolts must be unscrewed using a special matching sleeve, which has a good anti-theft effect and is safe and reliable. After the anti-theft and anti-loosening device is disassembled, it is not necessary to take it down. The ring guide plate on it is used to slide along the pull rod, and it can be adjusted and operated by moving a distance, so it is convenient to use. The utility model has the advantages of simple structure, easy processing, low cost, and strong practicability. It is especially suitable for power lines, especially as a high-voltage tower tie rod positioning device.
