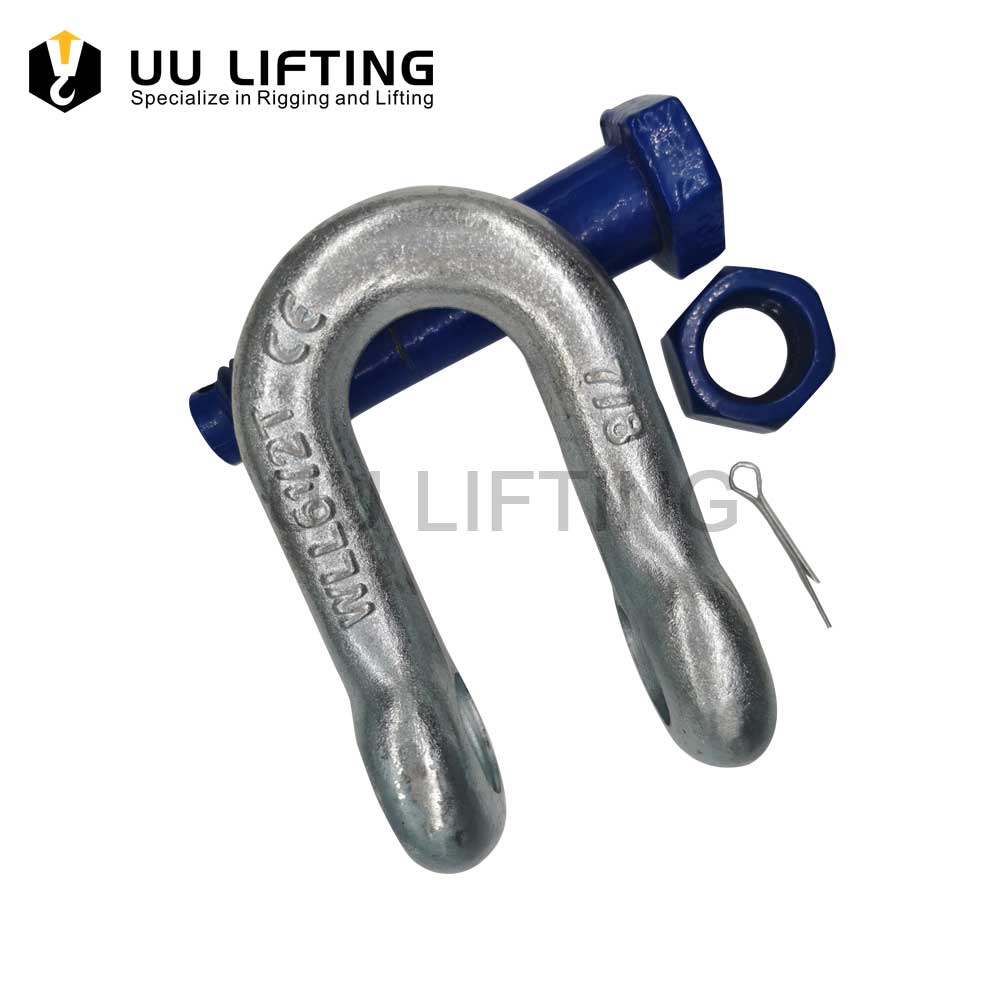

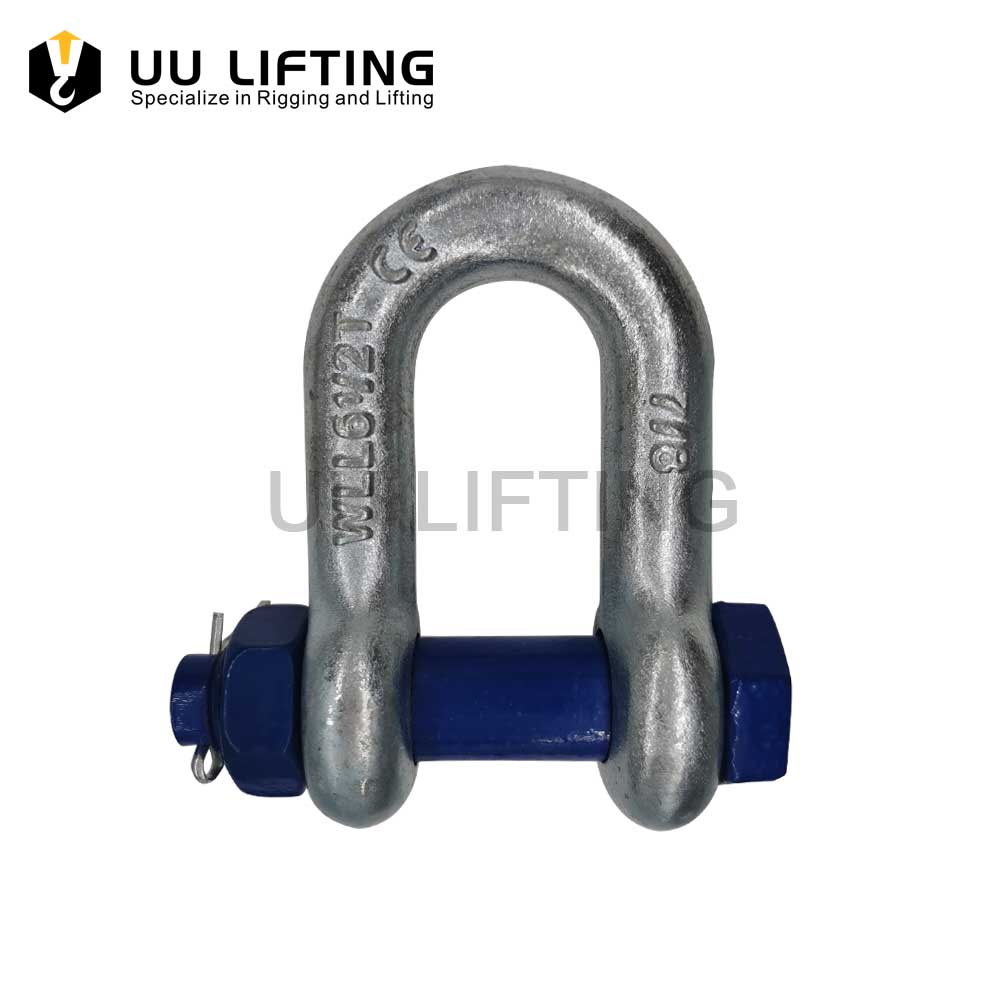

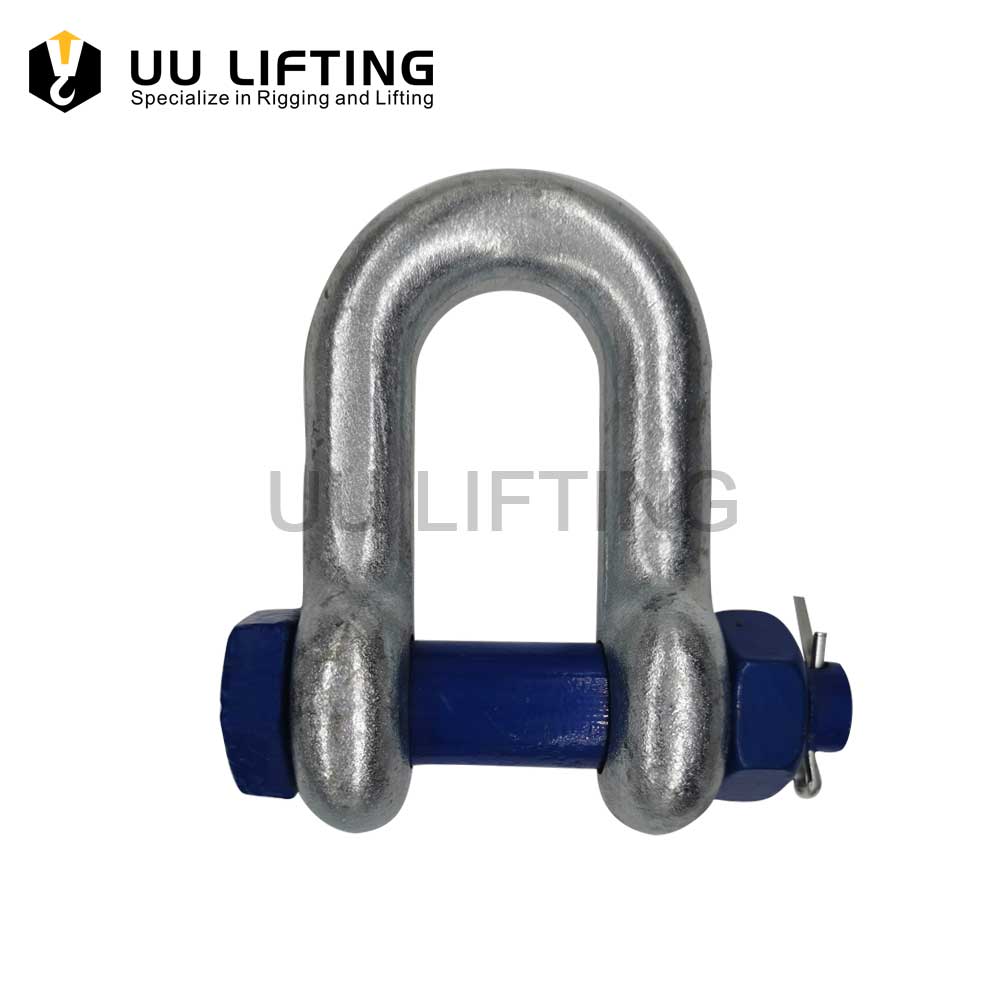

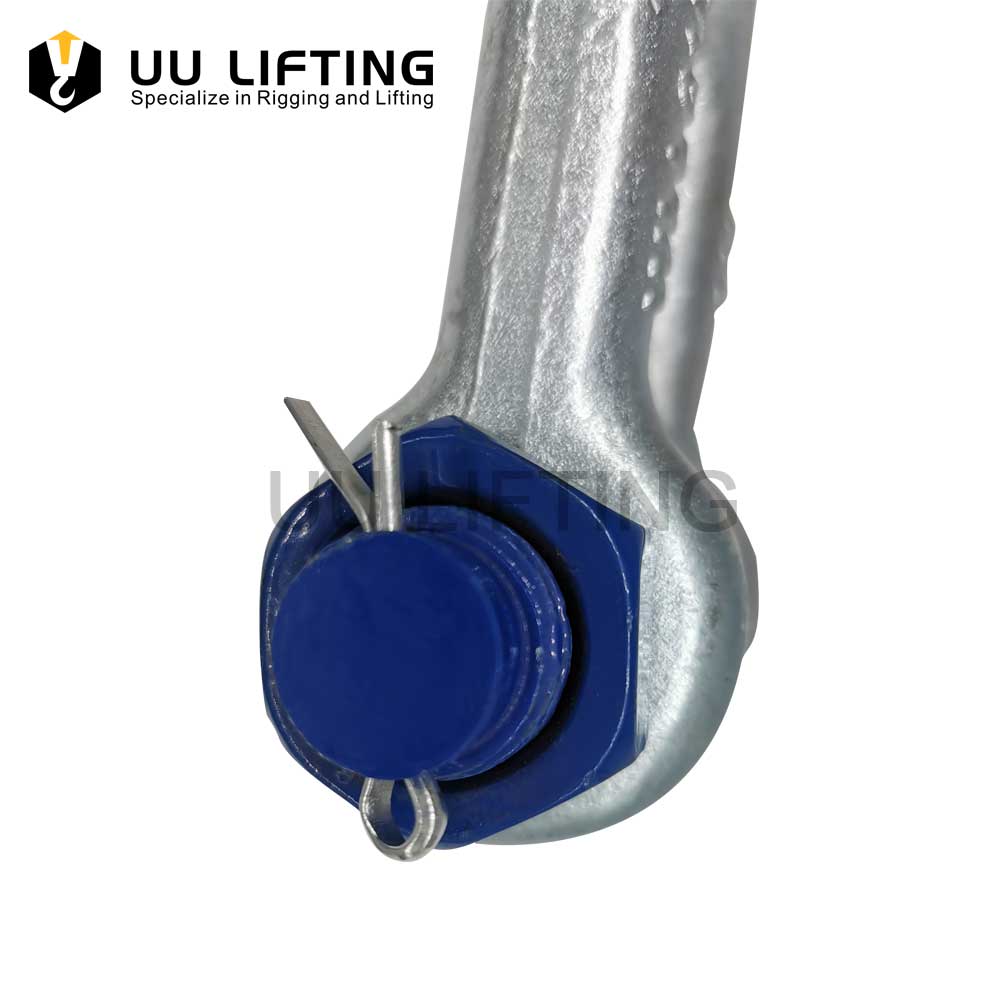

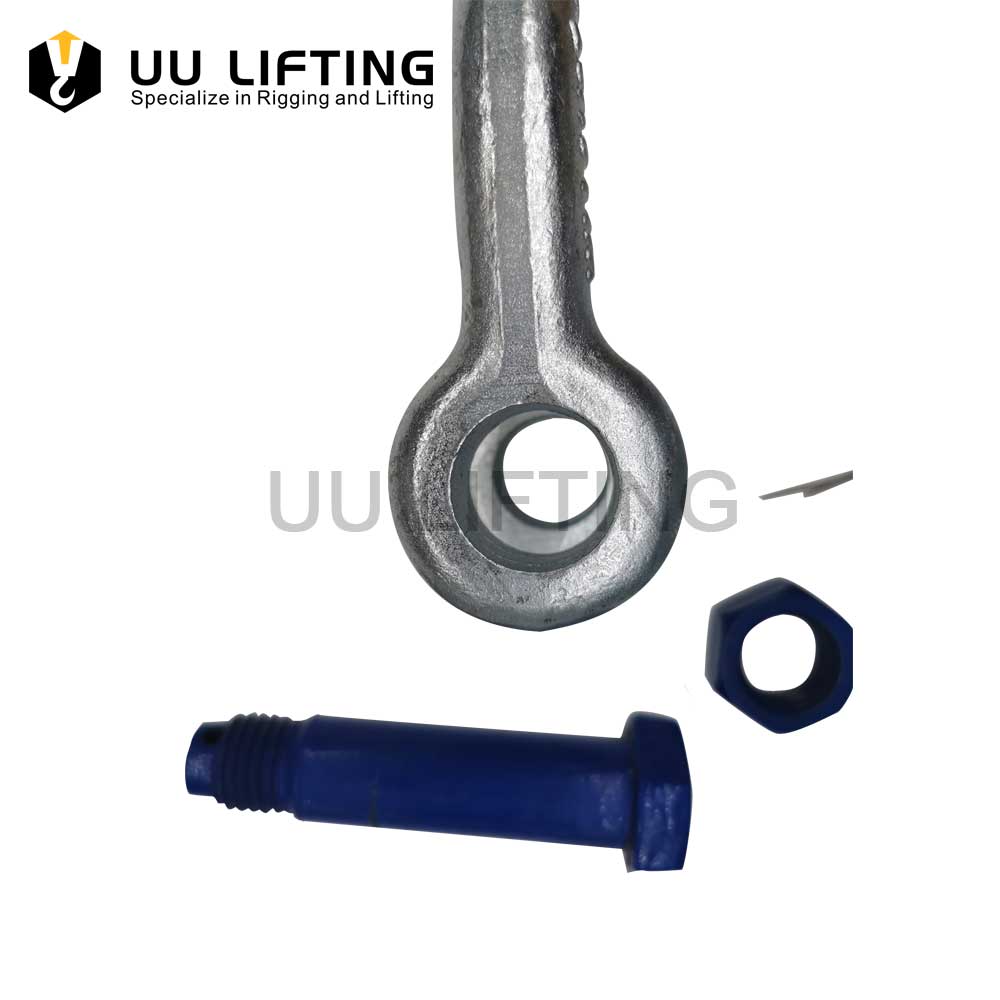

US Type Bolt Chain Dee G2150 Shackle

The G2150 shackle should be smooth and flat, and no defects such as cracks, sharp edges, and overheating are allowed.

Specification

Additional information

Material

Alloy Steel

Surface Treatment

Body: Hot Dipped Galvanized / Powder Coated / Zinc Plated(Galvanized), Safety Pin: Powder Coated / Zinc Plated

W.L.L

From 1/2 Tons to 55 Tons

Size

From 1/4" 1/2-ton shackle to 2-1/2" 55-ton shackle

Safety factor

6:1 or 4:1

Production Process

Body: Drop Forged / Quenched and Tempered, Safety Pin: Hot/Cold forging / Drop Forged / Quenched and Tempered

Application

Lashing, Overhead Lifting, Towing

DOWNLOAD

Description

US Type Bolt Chain Dee G2150 Shackle

Are you looking for the perfect shackle to meet your needs? The G2150 Shackle is a high-quality, versatile product used in various applications. This guide will explain its unique advantages and tips for getting the best deal.

US Type Bolt Chain Dee G2150 Shackle Specifications:

MOQ1 Pallet, 1 Ton or 3000USD
ComponentAlloy Steel
Surface finishBody: Hot Dipped Galvanized / Powder Coated / Zinc Plated(Galvanized)
Safety Pin: Powder Coated / Zinc Plated
SizesFrom 1/4" 1/2-ton shackle to 2-1/2" 55-ton shackle
Technique ProcedureBody: Drop Forged / Quenched, and Tempered
Safety Pin: Hot/Cold forging / Drop Forged / Quenched and Tempered
Safety Factor6: 1 / 4: 1
HS code732690

US Type Bolt Chain Dee G2150 Shackle Sizes:

US Type Bolt Chain Dee G2150 Shackle Sizes

US Type Bolt Chain Dee G2150 Shackle Sizes
Nominal Size (Inches)Unit Weight (Lbs.)Work Load Limit (Tons)Dimensions (Inches)
ABDFGKMPR
1/40.131/20.470.310.250.620.911.590.971.560.25
5/160.233/40.530.380.310.751.071.911.151.820.31
3/80.3310.660.440.380.921.282.311.422.170.38
7/160.491-1/20.750.500.441.061.482.671.632.510.44
1/20.7520.810.640.501.181.663.031.812.800.50
5/81.473-1/41.060.770.631.502.043.762.323.560.63
3/42.524-3/41.250.890.751.812.404.532.754.150.81
7/83.856-1/21.441.020.882.102.865.333.204.820.97
15.558-1/21.691.151.002.383.245.943.695.391.00
1-1/87.609-1/21.811.251.132.683.616.784.075.901.25
1-1/410.81122.031.401.253.003.977.504.536.691.38
1-3/813.7513-1/22.251.531.383.314.438.285.017.211.50
1-1/218.50172.381.661.503.624.879.055.387.731.62
1-3/431.40252.882.041.754.195.8210.976.389.332.12
246.75353.252.302.105.006.8212.747.2510.412.36
2-1/285.00554.122.802.635.688.0714.859.3813.582.63



G2150 SHACKLE

G2150 Shackle

Product Details:

  • Also known as bolt-type chain shackle (G2150 Type)
  • Size & Working Load Limit are permanently shown on every shackle.
  • Breakage test and fatigue test.
  • Individually proof test at 2.5 times the working load limit.
  • Min. Breaking load is 6 times or 4 times the working load limit.

G2150 SHACKLE

The different types of safety pin chain shackles we can make:

  • Hot-dipped galvanized shackles
  • Galvanized shackles
  • Powder coated shackles
  • Forged chain shackles
  • Alloy steel shackles
  • Stainless steel shackles
  • Read this article for details: The 3 Different Types of Surface Treatments.



Shipping and Payment Terms:

  • When shipping your product internationally, we use ocean cargo, and the goods will arrive in a shipping container at the port. You must collect your shipment and complete any necessary customs clearance to complete the delivery process.
  • If you need your order in a hurry, we can accommodate you! We offer express shipping to those who require small, urgent orders to be shipped by air.
  • We accept both Telegraphic Transfer (T/T) and Letter of Credit (L/C) as payment methods.
  • If you have any questions regarding shipping or payment, please contact us! We will be glad to provide assistance and ensure that your inquiries are answered.

G2150 SHACKLE



Shackle use and precautions:

  1. 1. The G2150 shackle must be without any flaws; the surface should be even, with no cracks, sharp corners, or signs of burning.
  2. Shackles should never be constructed from cast iron or steel, as these are no longer suitable. Instead, the shackle body should be forged using killed steel, and the pin machined afterward using bar forging techniques.
  3. Drilling holes and welding repairs are prohibited on shackles. If the shackle’s body or the shaft’s pin is bent, do not attempt to fix it, as it cannot be repaired once permanently altered.
  4. Inspecting the buckle body and the latch before use is important, ensuring no obvious damage or signs of extreme wear, deformation, or fatigue cracks.
  5. When utilizing the shackle, it is essential to ensure that the horizontal spacing has no tension, and a safety pin should be used to secure the shaft pin.
  6. Upon properly assembling the shaft pin, it is important to ensure that the buckle body’s width remains unchanged and there is a secure threading connection.
  7. Ensure the shackle is not used beyond its safe load capacity per the specifications.

The primary purpose and scope of application of shackle

  1. The shackle is an essential rigging component and is key during lifting operations. It is used to attach the end fittings of the rigging and has to be directly linked to the item being lifted up.
  2. Shackles can be used solely for connecting rigging and end fittings.
  3. The shackle is an ideal component when rigging in combination with the beam, as it provides a connection for the rigging advanced rather than the lifting ring and lug plate. This makes the installation and disassembly process much easier.
FORGING PROCESS
With eight automatic forging and semi-automatic forging line of up to 1600ton press machines and specialized drillng, tapping, heat treatment and inspection equipment. Strict and standardized production process ensures you receive perfect products.
Moulds
Moulds
Forging
Forging
Clearance Procssing
Clearance Procssing
Half Finished
Half Finished
Machining Workshop
Machining Workshop
Drill Hole
Drill Hole
Heat Treatment
Heat Treatment
Painting
Painting
Salt Spray Test
Salt Spray Test
Tension Test
Tension Test
Packing
Packing
Shipping
Shipping
QUALITY CONTROL
All rigging and lifting products are subjected to strict working tension and breaking the tension test. Complied with ISO9001 and CE certification. Our promise to you: Guaranteed safety at work for people and materials.
