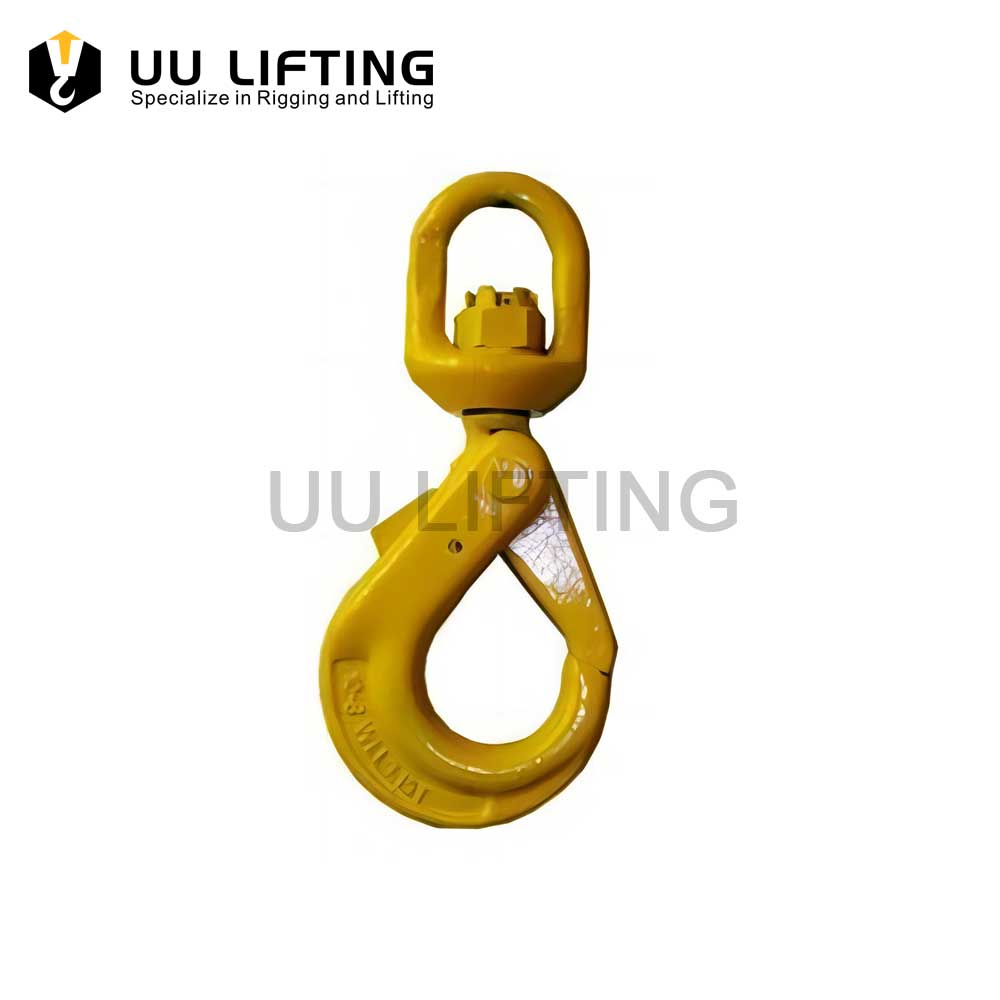

| Type | Swivel self locking hook with bearing |
|---|---|
| Standard | European Type |
| Material | High strength super alloy steel |
| Grade | Grade 80 |
| Surface Treatment | Color-painted; self-colored; Galvanized |
| MOQ | 1 Pallet, 1 Ton or 3000USD |
| Material | Alloy Steel |
| Surface Finish | Powder plasticized |
| Sizes | From 6mm to 32mm |
| Technique Procedure | Drop forged |
| Safety Factor | 4:1 |
| HS code | 732690 |
| G80 Swivel Self-locking Hook Sizes | |||||||||
| Size | Weight (kg) | W.L.L (t) | Dimension (mm) | ||||||
| K | B | D | C | R | H | E | |||
| 6-8 | 0.7 | 1.2 | 170 | 32 | 12 | 23 | 34 | 20.5 | 29 |
| 7/8-8 | 1.21 | 2 | 210 | 34.5 | 12.5 | 29 | 46 | 25 | 34 |
| 10-8 | 2 | 3.2 | 247 | 42 | 15.5 | 37 | 56 | 31 | 44 |
| 13-8 | 3.5 | 5.3 | 302 | 49 | 17 | 41 | 69 | 42 | 52 |
| 16-8 | 7.1 | 8 | 383 | 61 | 22 | 54 | 86 | 53 | 60 |
| 20-8 | 12 | 12.5 | 418 | 72 | 24 | 61 | 88 | 58 | 83 |
| 22-8 | 16 | 15 | 527 | 95 | 33 | 95 | 98 | 64 | 88 |
| 26-8 | 21.5 | 21.2 | 610 | 122 | 42 | 115 | 110 | 75 | 95.5 |
| 32-8 | 79 | 31.5 | 777 | 140 | 52 | 126 | 166 | 97 | 150 |
All Grade 8 lifting components sold by UU LIFTING comply fully with the relevant section of EN1677, they are forged from alloy steel, they are crack detected following heat treatment and finally proof tested to 2.5 times working load. The full compliance of these components means that they can be used in chain slings certified to EN 818-4, for use in a temperature range of -40°C up to 200°C without reduction in working load limit.
Swivel self locking eye hooks are an important inclusion in our chain components range. This type of lifting equipment is ideal for use in the oil and gas industry, as well as other industries where heavy lifting is required and safety is paramount. The eye self locking swivel hooks are extremely safe because of the self closing latch and the way the hook is constructed prevents the hook from opening when under load. The swivel allows the hook to be positioned before loading for ease of use. These chain components are designed with tough environments and working conditions in mind and reduce the risk of injury or worse.
The G80 Swivel self locking hook is made of high-quality alloy steel. Designed for lifting equipment operation and use with G80 alloy chain or other g80 chain connector.Specially manufactured by forging and other techniques and surface treatment, the hook has the characteristics of high strength, exquisite appearance, easy to use but durable. It can be used as an accessory for lifting or as a trailer accessory.It can used on Heavy Industry, Mining, Water Treatment, Healthcare, Retail Industry, Food & Beverage, General Industry, Oil & Gas, Automotive Industry.
