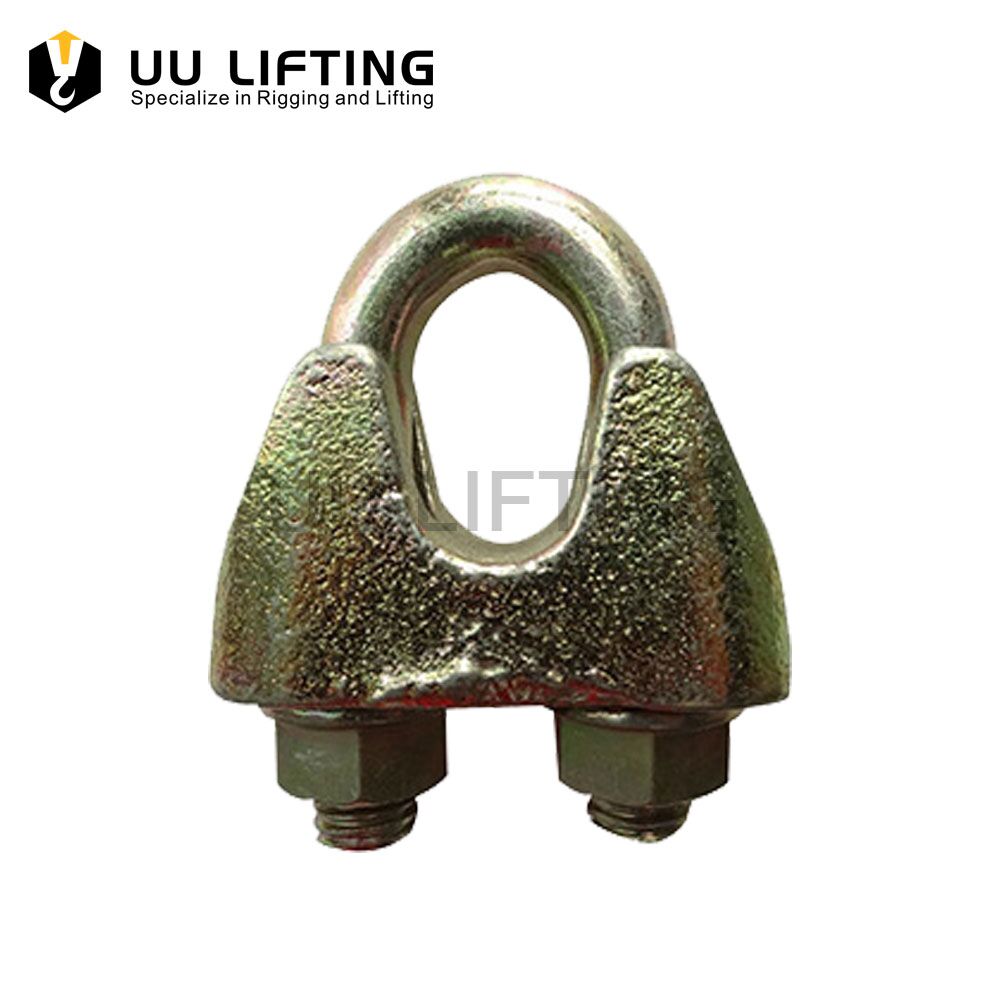

Din1142 Galv Malleable Wire Rope Clips

The DIN wire rope clips have a malleable base, without grooves.The wire rope clip should be checked carefully before use to ensure that the used size is correct, the mark is clear, and there is no strong wire rope clamp. Use wire rope correctly to ensure good performance.

Specification

Additional information

Size

From 5mm to 40mm

Material

Malleable Iron Body / Steel U Bolt

Surface Treatment

Wire rope clip saddle, U-bolt and nuts, Yellow galvanized(Zinc Plated)

Marking

Size or as per customers' request

Package

Gunny bag or carton and pallet

Standard

EN 13411-5:2003

Description

Galv Malleable Din1142 Wire Rope Clips Specifications:

MOQ1 Pallet, 1 Ton or 3000USD
MaterialMalleable Iron
Surface finishWire rope clip saddle, U-bolt and nuts, Yellow galvanized(Zinc Plated)
SizesFrom 3mm to 40mm
Technique ProcedureCast
StandardEN BS 13411-5
HS code732690

Galv Malleable Din1142 Wire Rope Clips Sizes:

DIN1142 CLIP Sizes

Galv Malleable Din1142 Wire Rope Clips Sizes
Diameter Rope(mm.)Weight 100PCS (kgs.)Dimensions(mm.)
ABCDEFG
52.081213135132520
6.541416176143026
88.21820208183933
109.22020248214038
1327.527283012295552
164332323514356464
194936323614406869
226840344016447480
2611746385020518491
30140544155205995107
342136045602267105119
402686849652477117135



Galv Malleable Din1142 Wire Rope Clips

Din1142 Wire Rope Clips

Electro galvanized DIN1142 wire rope clips meet the performance requirements of  EN BS 13411-5.

The steel wire/cable clamp is made of galvanized steel. The U-bolt is soft steel, and the bridge is forged from steel. Removing two cables or wires with a steel wire/cable clamp of 8mm is easy. Also, to make a string, it is easier to mount the string on a concrete or wooden post with a cable clamp.

EN13411-5 Wire Rope Grip for use with 8mm cable diameters
Galvanized for extra corrosion resistance
Provides robust, reliable eye termination
8mm galvanized EN13411-5 (DIN 1142) wire rope grips are a simple way to create eyes in 8mm cable diameters.

The DIN wire rope clips have a malleable base without grooves. The wire rope clip should be checked carefully before use to ensure that the used size is correct, the mark is clear, and there is no strong wire rope clamp. Use wire rope correctly to ensure good performance. Wire rope clip, also called”u-bolt,” bulldog clip,” or” wire clamp,” is used to clamp the looped back wire rope to form an eye. It consists of a U-bolt and has a saddle secured by two nuts. Design and production standards conform to BS EN13411-5. The wire rope clip is compatible with the wire rope diameter; inappropriate selection of wire rope clip size will cause damage to the wire rope or insufficient clamping force.

Incorrect installation of wire rope clips will result in a 40% reduction in working efficiency. Furthermore, a rope with a bigger diameter shall apply more wire rope clips with appropriate tail lengths to ensure a consistent working load limit. Below are some essential guidelines for reference.
The terminal efficiency for wire rope size from 3mm to 22mm is 80%, and size from 25mm to 89mm is 90% with appropriate torque applied on the nut.
A sling made using wire rope clips is unsuitable for lifting; it is only used for static load securing.
