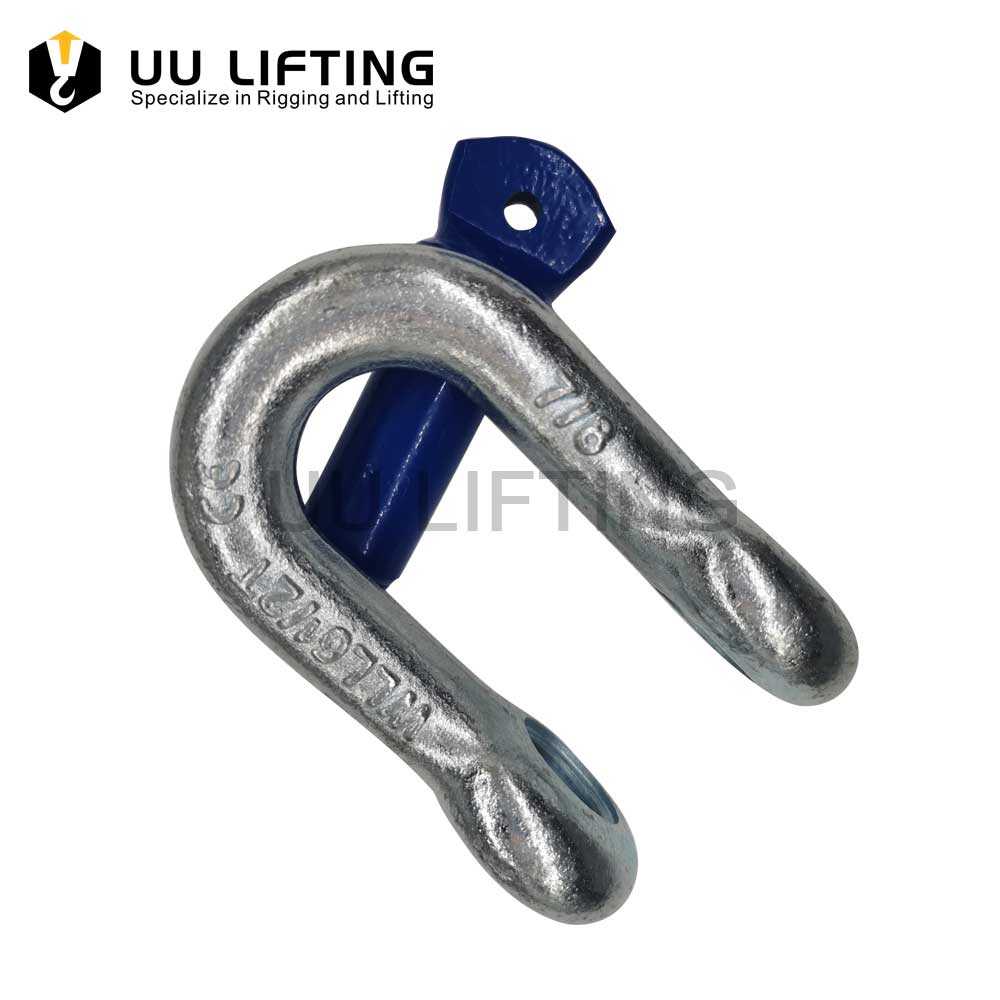

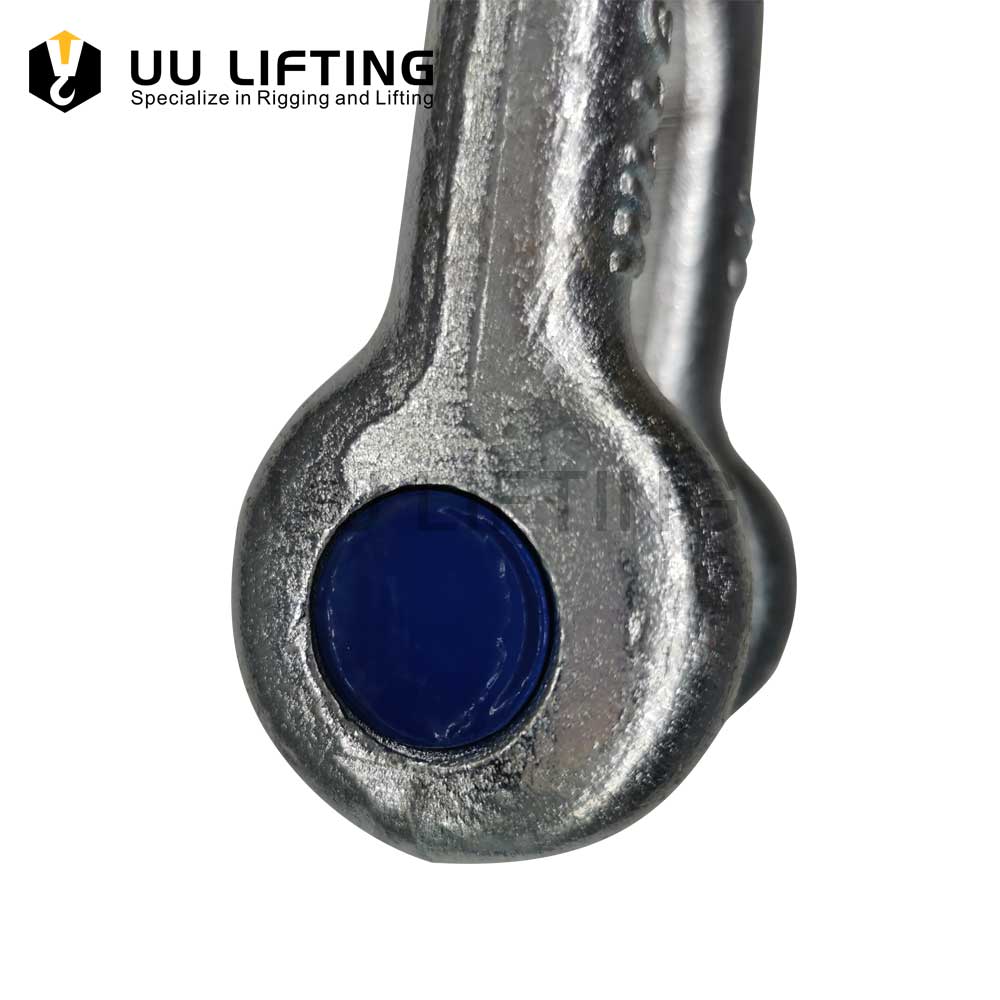

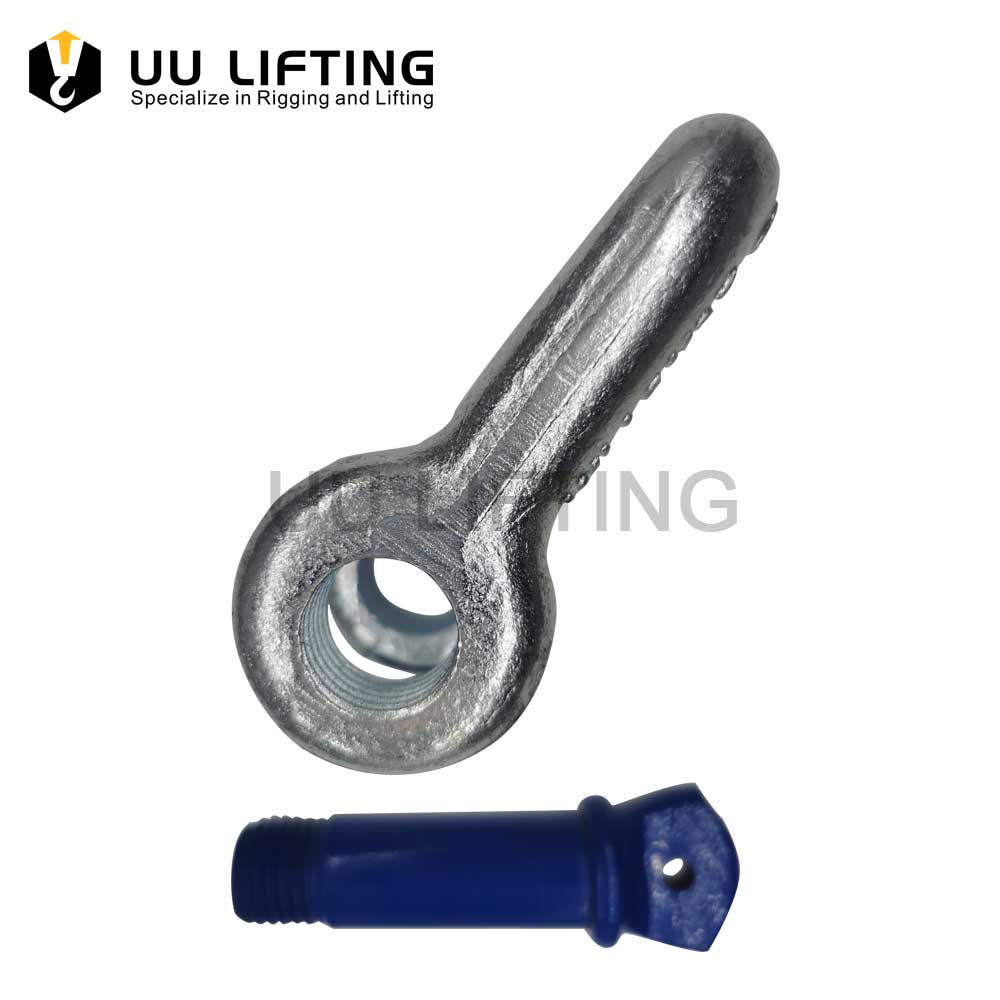

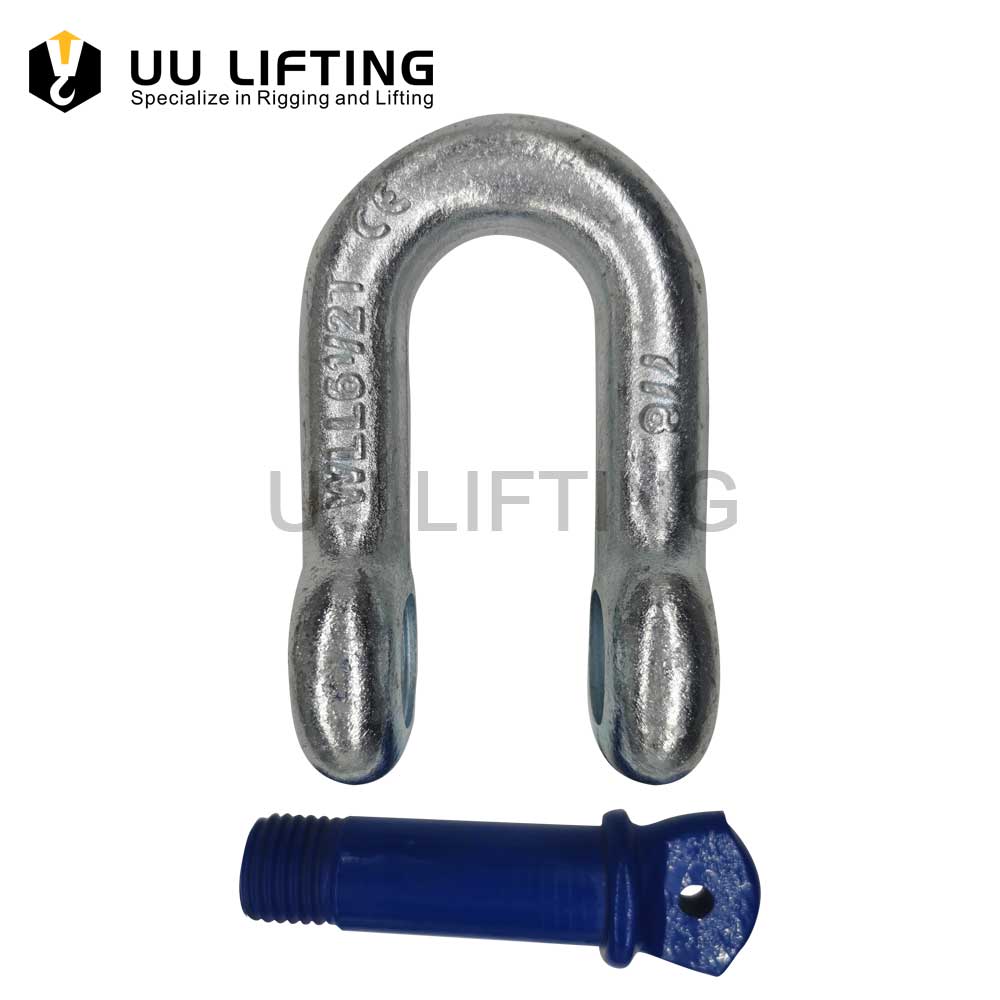

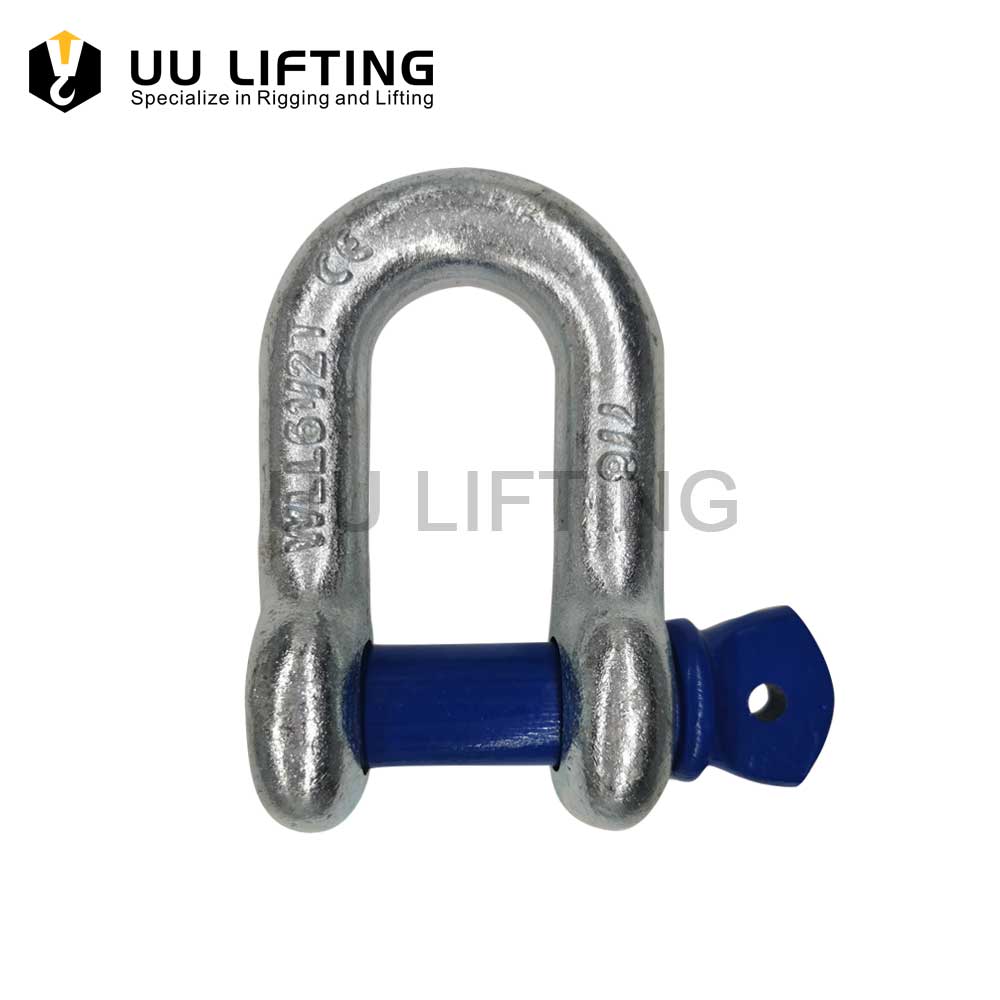

US type forged chain G210 shackle(dee shackle)

We provide G210 shackle(dee shackle) with sizes from 1/4 to2 1/4,surface treatment can be  hot dipped galvanized, electro-galvanized, painted or self coloured.

Specification

Additional information

Size

From 1/4" 1/2-ton shackle to 2-1/2" 55-ton shackle

Surface Treatment

Hot dip galvanzied, Electric galvanzied and Powder Coating

Application

For lifting

Production Process

Drop forged – Quenched and Tempered, with alloy pins

DOWNLOAD

Description

US type forged chain G210 shackle(dee shackle) Specifications:

MOQ1 Pallet, 1 Ton or 3000USD
ComponentAlloy Steel
Surface finishBody: Hot Dipped Galvanized / Powder Coated / Zinc Plated(Galvanized)
Safety Pin: Powder Coated / Zinc Plated
SizesFrom 1/4" 1/2-ton shackle to 2-1/2" 55-ton shackle
Technique ProcedureBody: Drop Forged / Quenched, and Tempered
Safety Pin: Hot/Cold forging / Drop Forged / Quenched and Tempered
Safety Factor6: 1 / 4: 1
HS code732690

US type forged chain G210 shackle(dee shackle) Sizes:

US type forged chain G210 shackle(dee shackle) Sizes

US type forged chain G210 shackle(dee shackle) Sizes
Nominal Size (Inches)Unit Weight (Lbs.)Work Load Limit (Tons)Dimensions (Inches)
ABCDEFGKLM
1/40.111/20.470.310.250.250.970.620.971.590.191.43
5/160.173/40.530.380.310.311.150.751.071.910.221.71
3/80.2810.660.440.380.381.420.91.282.310.252.02
7/160.431-1/20.750.500.440.441.631.061.482.670.312.37
1/20.5920.810.630.500.501.811.181.663.030.382.69
5/81.253-1/41.060.750.630.632.321.502.043.760.443.34
3/42.634-3/41.250.880.810.752.751.812.404.530.503.97
7/83.166-1/21.4410.970.883.202.102.865.330.504.50
14.758-1/21.691.13113.692.383.245.940.565.13
1-1/86.759-1/21.811.251.251.134.072.693.616.780.635.71
1-1/49.06122.031.381.381.254.533.003.977.500.696.25
1-3/811.6313-1/22.251.51.51.385.013.314.438.280..756.83
1-1/215.95172.381.631.621.505.383.624.849.050..817.33
1-3/426.75252.8822.121.756.384.195.7810.9719.06
242.31353.252.252.362.107.254.816.7712.741.2210.35
2-1/271.75554.122.752.632.639.385.688.0714.851.3813



Key features:

  • When used with single-leg web lifting slings or polyester slings, this anchor point can only be used in straight-line pulls or lifts, not for applications involving multiple-legged loading.
  • Those who are looking for shackle pins have the option to choose from two models – the G209 and the G210. These models come in various colors, including Red, Yellow, Black, Green, and Blue, as well as custom paint jobs. With this wide array of colors available, finding a shackle pin that will suit your needs is easy!
  • These materials possess high strength, good toughness, compact size, lightweight, aesthetically pleasing look, and reliable durability.

G210 shackle

The 6 Maintenance Rules Everyone Should Know About Shackle Use

  1. Ensure Correct Sizing & Angle
  2. Securely Attach Shackles To Loads & Lifting Points
  3. Utilize Safety Clips & Other Retention Devices
  4. Read Manuals Carefully and follow Manufacturer Instructions When Operating A Shackle
  5. Train Employees & Have A System Of Records In Place
  6. Store Shackles Appropriately After Use

G210 shackle

How to measure chain shackle sizes?

It is important to remember that the body of a D shackle is generally bigger in diameter than the measurements of its pin, whether the shackle is big or small. Check out this article about Shackle Sizes & Materials: What You Need to Know.

How to measure & size shackles





G210 shackle



Shipping and Payment Terms:

  • Shipping cargo by sea is our usual way of sending goods globally. Upon reaching the port, it will be packed inside a shipping container.
  • Your responsibility is to collect your shipment and ensure all necessary customs are duly completed. Air freight might also be arranged at our convenience for orders with immediate requirements.
  • Payment by T/T & L/C is accepted here.
  • If you have queries regarding shipping or payment, please get in touch with us; we will gladly help.
FORGING PROCESS
With eight automatic forging and semi-automatic forging line of up to 1600ton press machines and specialized drillng, tapping, heat treatment and inspection equipment. Strict and standardized production process ensures you receive perfect products.
Moulds
Moulds
Forging
Forging
Clearance Procssing
Clearance Procssing
Half Finished
Half Finished
Machining Workshop
Machining Workshop
Drill Hole
Drill Hole
Heat Treatment
Heat Treatment
Painting
Painting
Salt Spray Test
Salt Spray Test
Tension Test
Tension Test
Packing
Packing
Shipping
Shipping
QUALITY CONTROL
All rigging and lifting products are subjected to strict working tension and breaking the tension test. Complied with ISO9001 and CE certification. Our promise to you: Guaranteed safety at work for people and materials.
