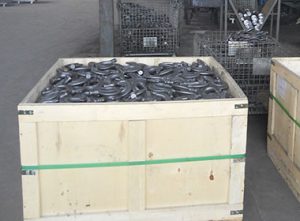

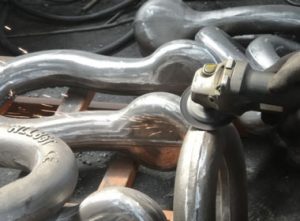

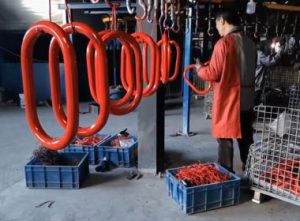

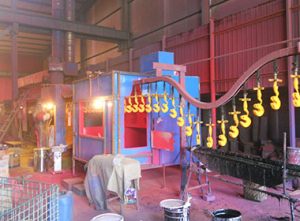

Production Process

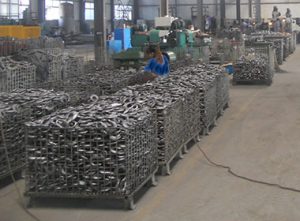

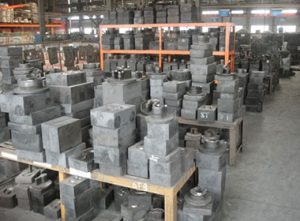

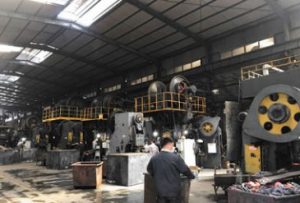

Workshop

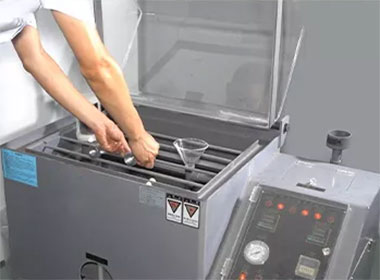

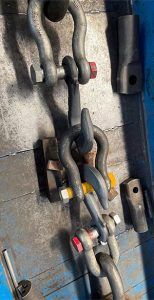

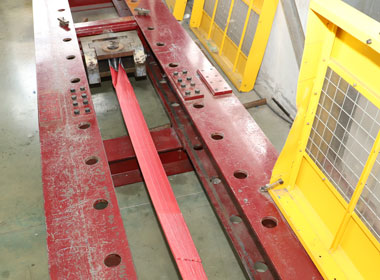

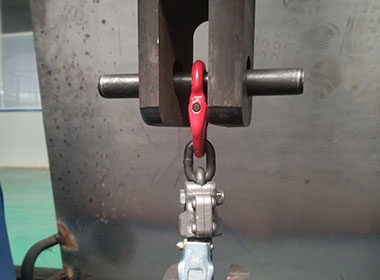

Quality Check

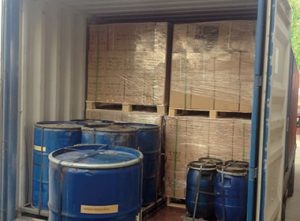

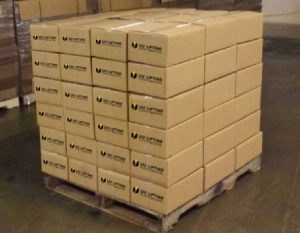

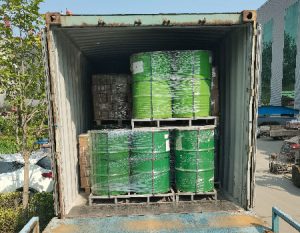

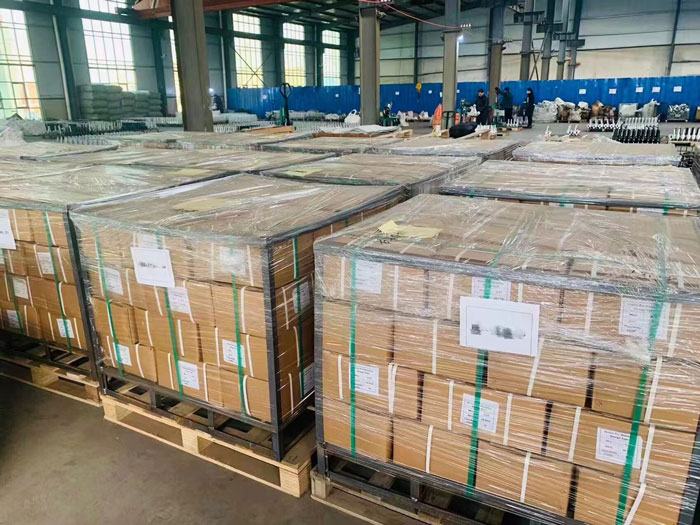

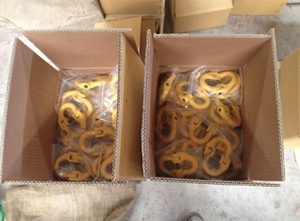

Packing Way

Production Process

Workshop

Quality Check

Packing Way

Your Comprehensive Guide to Screw Pin Shackle

Screw Pin Shackles are used to securely connect lifting equipment to loads in material handling and hoisting applications.

If you’re considering importing Screw Pin Shackles for your projects or seeking wholesale distribution in your area, contact us. We provide products that align perfectly with your specific operational requirements. Please contact us to find your ideal solution.

1. When should you use a screw pin shackle for your lift?
2. How do you correctly install a screw pin shackle?
3. The “Hand Tight” Rule
4. Specification of Shackles
5. Why You Should Not Overtighten
6. What are the biggest dangers of misusing screw pin shackles?
7. How do you inspect a screw pin shackle before every lift?
8. Your Pre-Lift Inspection Checklist
09. In Summary

Chapter 1

When should you use a screw pin shackle for your lift?

Using the wrong rigging hardware is a fast way to delay a project. The wrong shackle can lead to unsafe lifts and costly mistakes. We can explain the right choice.

Use a screw pin shackle for temporary lifting, pick-and-place operations, or when you need to frequently assemble and disassemble your rigging. They are not for permanent installations, high-vibration environments, or situations where the load may rotate, as the pin can unscrew.

I talk to buyers like Mark all the time. He once told me about a near-miss on one of his job sites. His crew used a screw pin shackle to secure a piece of equipment that was subject to constant vibration. Luckily, a supervisor caught it during an inspection. The pin had already started to back out. This is a common mistake for people who are not rigging experts. It’s also highly dangerous. That is why I want to explain the specific uses for this common tool. Let’s make sure your team uses them safely.

Chapter 2

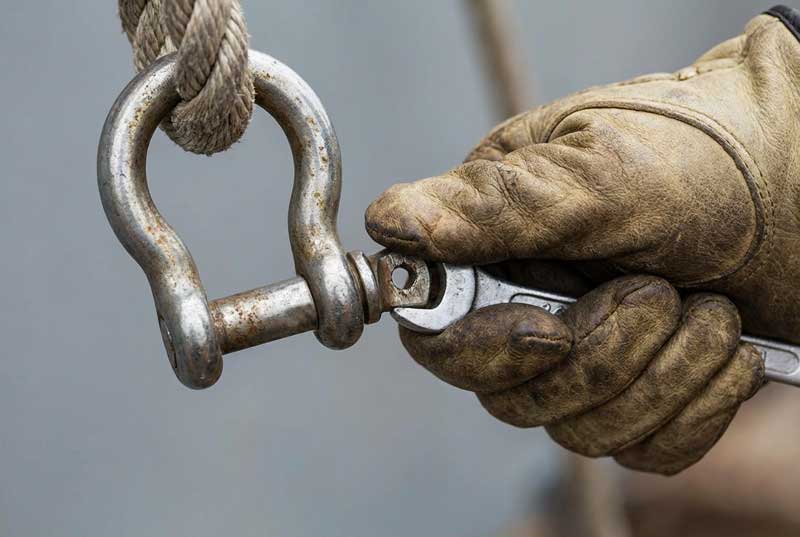

How do you correctly install a screw pin shackle?

An improperly installed shackle is a serious safety hazard. A loose pin can work its way out under load. Following a simple procedure ensures a secure connection every time.

To install a screw pin shackle correctly, thread the pin until it is hand-tight. The pin’s shoulder should make complete contact with the shackle body. Do not use a tool to tighten it further. This ensures the shackle is secure while allowing it to be removed after the lift.

The security of the connection depends entirely on the PIN. Many people think “tighter is better,” but that is not the case here. My client Mark learned this when his crew over-tightened a pin with a wrench. They damaged the threads and had to cut the shackle off, wasting time and money. Correct installation is about being secure, not using excessive force.

Chapter 3

The "Hand Tight" Rule

The most important rule is to only tighten the pin by hand. This provides enough force to secure the pin against the shackle body. The shoulder of the pin—the flat part just below the head—should sit flush and tight against the surface of the shackle eye. This contact is what keeps the pin from turning. Using a wrench or bar to tighten it further can damage the threads or even stretch the shackle body, which reduces its capacity.

Chapter 4

Specification of Shackles

File Name

Shackles Sizes – UU LIFTING

How to Check Shackle and Scrap Standards and How to Use Them – UU LIFTING

Chapter 5

Why You Should Not Overtighten

When a shackle is under load, its body can stretch slightly. If the pin is overtightened, this stretching can cause it to jam in the threads. This is called “pin jamming.” It makes the shackle extremely difficult to disassemble after the lift is complete. You might even have to destroy the shackle to get it apart. Hand-tightening prevents this problem. It allows the pin to be removed easily once the load is released.

Installation Step	Correct Method	Incorrect Method
Tightening	By hand only	Using a wrench, bar, or hammer
Pin Position	Shoulder is flush with shackle body	Pin is only partially threaded in
Force	Snug and tight	As tight as possible
Result	Secure for lift, easy to remove	Damaged threads, potential for pin jamming

Chapter 6

What are the biggest dangers of misusing screw pin shackles?

Thinking that a simple shackle is foolproof is a dangerous assumption. Misuse leads to accidents and equipment failure. Understanding the specific risks is the best way to prevent them.

The biggest dangers are pin back-out from vibration, use in long-term installations, and side loads. Any of these can lead to sudden load release, a catastrophic failure that can endanger personnel and damage property.

This is the conversation I have most often with procurement officers like Mark. He focuses on price and quality, but his on-the-ground teams need to know the practical safety rules. The real risk is not a faulty shackle. The real risk is using a perfectly good shackle in the wrong situation. These shackles are designed for a specific use. Using them outside of that design is asking for trouble.

Danger 1: Vibration and Pin Rotation

Screw pins are just that: screws. Think about any screw. If you subject it to constant movement or vibration, it can slowly loosen. The same thing happens with a screw pin shackle. In a dynamic lift, where the load might shake or vibrate, the pin can rotate and unscrew itself. This is why you must never use a screw pin shackle for any lift involving significant vibration. For those jobs, you must use a bolt-type shackle with a nut and cotter pin.

Danger 2: Permanent Installations

What is a “permanent” installation? If the shackle will be left in place for a long time, or if it will be unattended, that is a permanent or long-term job. Screw pin shackles are only for temporary connections. They are for “pick and place” work. You connect the load, lift it, move it, and then disconnect it. If you need to leave a shackle in your rigging assembly overnight or longer, you should use a bolt-type shackle. The risk of a screw pin loosening over time is just too high.

Danger 3: Side Loading

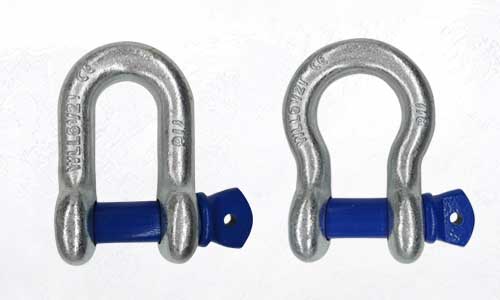

Shackles come in two main shapes: D-shackles and anchor (or bow) shackles. D-shackles are shaped for in-line pulling. If you pull on a D-shackle from the side, it puts stress on the shackle in a way it was not designed for. This can bend the shackle and pin, dramatically reducing its strength. Anchor shackles have a larger bow that allows for some side loading. But even then, you must follow the manufacturer’s load reduction guidelines. A screw pin does not provide any stability under side load.

Chapter 7

How do you inspect a screw pin shackle before every lift?

A damaged shackle is a hidden danger in your rigging. You cannot see metal fatigue, but you can spot other warning signs. A quick, regular inspection is critical for safety.

Before each use, visually inspect the shackle body and pin for bending, twisting, cracks, nicks, or excessive wear. Check that the threads are clean and undamaged. If you find any damage or the pin does not turn smoothly, remove the shackle from service immediately.

I make this a key point in my customer talks. A buyer like Mark is concerned about getting quality-certified products, and our testing protocols ensure that. But that quality guarantee only applies to an undamaged shackle. It is the user’s responsibility to inspect their equipment on the ground before every lift. A shackle can be damaged in many ways during normal use. A quick check takes less than a minute. That one minute can prevent a disaster.

Chapter 8

Your Pre-Lift Inspection Checklist

We tell our clients to train their teams to use a simple checklist. It helps build a strong safety habit. The user should hold the shackle body in one hand and the pin in the other.

Part	Check For	Action if Found
Body	Bending, twisting, cracks, or stretching.	Discard immediately.
Body	Nicks, gouges, or excessive wear, especially in the load-bearing area.	Discard immediately.
Pin	Bending or any signs of distortion.	Discard immediately.
Threads	Damaged threads, dirt, or rust.	Clean threads. If still not smooth or damaged, discard.
Fit	Pin should screw in smoothly by hand.	If it’s difficult to turn, threads may be damaged. Discard.
Markings	Manufacturer name and Working Load Limit (WLL) must be legible.	If unreadable, you cannot verify capacity. Discard.

This simple inspection process ensures that the rigging hardware you are using is safe for the task. Never take a chance with a damaged shackle. The cost of replacement is nothing compared to the cost of an accident.

Chapter 9

In Summary

Screw pin shackles are excellent for temporary lifts when used correctly. Always inspect them and choose a bolt-type for permanent or dynamic jobs. Contact us for your rigging hardware needs.
