What Is a Screw Pin Shackle?
Confused about screw pin shackles for your lifting jobs? Using the wrong gear can be risky. Understand these shackles for secure and fast rigging.
A screw pin shackle is a U-shaped metal connector used in rigging applications. It features a threaded pin that screws into the shackle body, allowing for quick connection and disconnection. This makes it ideal for temporary lifting tasks and situations requiring frequent assembly.
These shackles are workhorses in many industries. I’ve seen them used everywhere, from small workshops to large construction sites. But knowing what they are is just the first step. To use them safely and effectively, we need to understand their parts, how to secure them, and their limitations. Let’s explore more about screw pin shackles so you can use them with confidence in your projects.
What Are the Two Pieces in a Screw Pin Shackle?
Unsure about what makes up a screw pin shackle? Not knowing the parts can lead to mistakes. Learn the two main pieces for safe and correct shackle use.
A screw pin shackle primarily consists of two key pieces. The first is the shackle body, which is usually U-shaped or bow-shaped. The second is the threaded pin that screws into the shackle body to secure the load.
Let’s look at these two pieces more closely.
The shackle body is the main part that takes the load. It can be shaped like a "U" (often called a D-shackle or chain shackle) or have a more rounded, bow shape (called an anchor shackle or bow shackle). The shape influences how it can be loaded. For example, D-shackles are great for in-line pulls, while bow shackles can handle loads from multiple angles better. The body has two holes, often called "ears," where the pin goes through.
The second main piece is the pin. In a screw pin shackle, this pin is threaded. One end of the pin has these threads, and it screws into a matching threaded hole in one of the shackle’s ears. The other end of the pin usually has a shoulder that sits against the outside of the other ear when the pin is properly tightened. This design allows for quick and easy attachment and detachment without needing extra tools, though sometimes a small bar is used for a final tightening. Understanding these two simple parts is fundamental to using the shackle correctly.
What Should You Do When Securing a Screw Pin Shackle?
Worried if your shackle is truly secure? A loose pin is a big danger in any lift. Follow these simple steps to make sure your screw pin shackle is safe.
When securing a screw pin shackle, always ensure the pin is fully engaged and tightened. The pin should be threaded through one ear and screwed completely into the other, so the shoulder of the pin sits firmly against the shackle body.
Securing a screw pin shackle properly is critical for safety. It’s a straightforward process, but you must pay attention. First, insert the pin through the holes in the shackle ears. Then, turn the pin so it threads into the shackle body. You should continue to tighten the pin by hand until the shoulder of the pin makes firm contact with the surface of the shackle ear. It should be "hand tight." Some people might use a small bar or marlinspike to ensure it’s snug, but be careful not to overtighten and damage the threads or the shackle.
A crucial step is to always check the pin before each lift. I make it a habit because vibrations or movements can sometimes cause the pin to loosen slightly over time, especially if it’s used repeatedly. If the pin is not fully engaged and seated correctly, the shackle will not achieve its full Working Load Limit (WLL), and there’s a serious risk of the pin backing out under load. This could lead to a dropped load, which is something we all want to avoid. So, a quick check takes seconds but can prevent a major incident.
How Can You Prevent a Shackle Pin from Unscrewing?
Does the thought of a shackle pin unscrewing mid-lift make you nervous? A loose pin is a major safety hazard. Learn these simple ways to keep your screw pin secure.
To prevent a shackle pin from unscrewing, ensure it is fully tightened by hand before each use. For temporary setups where extra security is desired, some riggers might "mouse" the pin to the shackle body using wire.
The best way to prevent a screw pin from unscrewing is to make sure it’s properly tightened in the first place. As I mentioned, tighten it by hand until the shoulder of the pin is flush against the shackle ear. Before every single lift, give that pin a check. It’s a quick visual and manual check that can save a lot of trouble.
Screw pin shackles are designed for temporary connections and are great because they are quick to install and remove. However, they are not recommended for long-term or permanent installations, especially where there might be vibration or movement that could work the pin loose over time. If a load is going to be in place for a long time, or if it’s subject to a lot of movement or vibration, a bolt-type shackle with a nut and cotter pin is a much safer choice.
For screw pins in situations with some movement, or just for peace of mind in a temporary setup, some riggers use a technique called "mousing." This involves taking a piece of annealed iron wire and wrapping it around the pin’s eye or head and then around the shackle body, twisting the ends together. This helps prevent the pin from rotating and backing out. It’s an old sailor’s trick but can be effective. However, if you find yourself needing to mouse a screw pin often, you might be using the wrong type of shackle for the job.
Can You Side Load a Screw Pin Shackle?
Are you wondering if it’s okay to pull a shackle from the side? Incorrect loading can bend or even break shackles. Let’s clarify the rules for side loading.
Side loading screw pin shackles depends on their shape. D-shackles (chain shackles) are not designed for side loads. Bow shackles (anchor shackles) can handle some side loading, but their Working Load Limit (WLL) will be reduced.

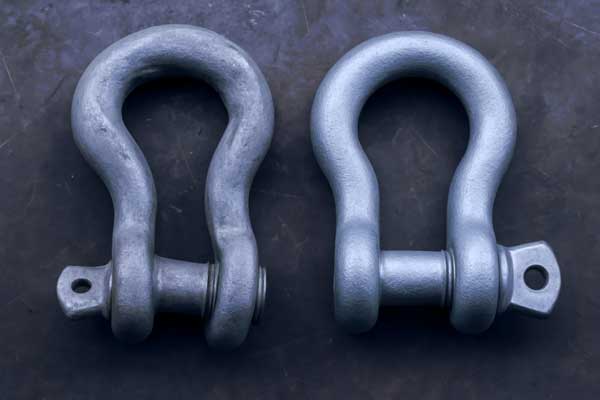

Side loading means applying the force at an angle to the shackle’s centerline. Whether you can do this safely depends a lot on the type of screw pin shackle you’re using.
There are two main shapes for shackles:
- D-Shackles (or Chain Shackles): These have a "D" shape. They are designed for in-line loads, meaning the force should be pulled straight through the shackle from one end to the other. If you try to side load a D-shackle, you can distort its shape, bend the pin, or greatly reduce its capacity. It’s just not what they are built for. I’ve seen D-shackles that were bent because someone tried to use them for an angled lift.
- Bow Shackles (or Anchor Shackles): These have a larger, more rounded "O" or bow shape. This design gives them more room and makes them better suited for handling loads from multiple directions, including some side loading. However, even with a bow shackle, side loading reduces its Working Load Limit (WLL). The greater the angle of the side load from the shackle’s centerline, the more the WLL is reduced. Always check the manufacturer’s specifications for WLL reduction factors when side loading.
Here’s a simple table to help:
| Shackle Type (Screw Pin) | Side Loading Suitability | Important Notes |
|---|---|---|
| D-Shackle | Not recommended | Designed for in-line loads only. Can bend or twist. |
| Bow Shackle | Can handle some side loads | WLL is reduced. Always consult manufacturer’s data. |
When in doubt, always aim for an in-line pull. If you must side load, use a bow shackle and be very sure you understand how it affects the shackle’s safe lifting capacity.
Should the Shackle Pin Be up or Down?
Ever wondered if it matters which way the shackle pin faces? It might seem small, but correct pin orientation can prevent problems. Let’s find out the best practice.
When a shackle connects to a lifting hook, the shackle pin should ideally be in the hook’s saddle if the shackle body doesn’t fit well. Generally, orient the pin to prevent snagging or accidental loosening due to rotation against other components.
The orientation of the shackle pin might seem like a minor detail, but it can be important for safety and proper function. There isn’t one strict rule for all situations, but there are good guidelines.
When connecting a shackle to a lifting hook, the common advice is to place the shackle body (the bow or U-part) onto the hook. The smooth, curved surface of the shackle body sits better in the hook’s saddle. However, sometimes the shackle body is too wide for the hook. In such cases, you might put the pin in the hook. If you do this, make sure the pin cannot rotate against the hook in a way that might cause it to unscrew.
For general connections, think about what could cause the pin to loosen. If the shackle is part of a moving system, or if there’s a chance the pin could rub against something, try to orient the pin so that any accidental rotation would tend to tighten it, or at least not loosen it. For example, if the shackle is on a line that might twist, consider how that twist could affect the pin.
In many overhead lifting scenarios with a sling, the shackle pin is often oriented so its head is up, and the threads are down, if possible. The idea is that gravity might offer a tiny bit of help in keeping a slightly loose pin from backing out completely, but this shouldn’t be relied upon. The main thing is that the pin must be tight.
I remember an instance early in my career where a pin on a frequently used assembly kept loosening. We realized it was because it was oriented in a way that it would rub against another part of the rigging every time a load was applied. We changed the orientation, and the problem stopped. It’s always best to consider the entire rigging setup and how the shackle interacts with other components.
What Is the D to d When Talking About Rigging?
Heard riggers talk about "D to d ratio" and felt a bit confused? This ratio is actually very important for safety. Let’s break down what it means.

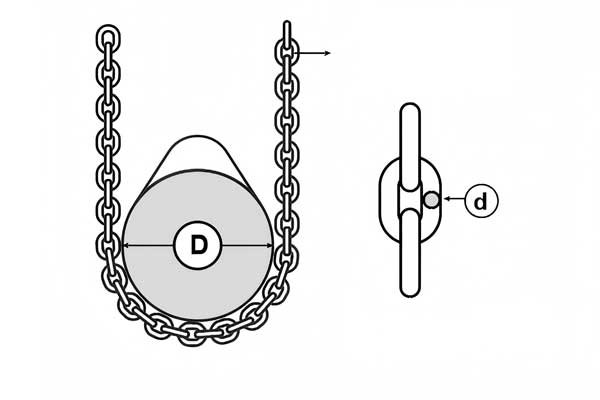

The D/d ratio in rigging refers to the diameter of the surface a sling is bent around (D) divided by the diameter of the sling itself (d). A larger D/d ratio is better because it reduces stress on the sling, maintaining more of its strength.
The D/d ratio is a really important concept in rigging for ensuring the longevity and strength of your slings, especially wire rope and synthetic slings. Let’s break it down:
- ‘D’ is the diameter of the object that the sling (like a wire rope or synthetic web sling) is bent around. This could be the curve of a shackle bow, the diameter of a hook, a pin, or the edge of the load itself.
- ‘d’ is the diameter of the sling material itself. For wire rope, it’s the rope diameter. For a synthetic sling, it might be the thickness of the webbing or the diameter of a round sling.
Why does this ratio matter so much? When you bend a sling around a sharp corner or a small diameter (meaning a small ‘D’ value), you create a lot of stress on the outer fibers of the sling material. This stress can significantly reduce the sling’s breaking strength. The sharper the bend (smaller D/d ratio), the greater the loss of strength. For example, a wire rope bent around an object that has the same diameter as the rope itself (D/d = 1) can lose up to 50% of its rated strength!
Shackles play a key role here. The bow of a shackle provides a curved surface for the sling. Using a shackle with a generously sized bow (a larger ‘D’) for your sling (with diameter ‘d’) helps maintain a good D/d ratio. This protects the sling from excessive bending stress.
Here’s a general idea of its impact:
| D/d Ratio | Effect on Sling Strength (General) | Recommendation |
|---|---|---|
| Low (e.g., 1:1) | Severe strength reduction | Avoid; use a larger diameter shackle, thimble, or padding |
| Moderate | Some strength reduction | Check industry standards and manufacturer data |
| High (e.g., 20:1) | Minimal or no strength reduction | Ideal for maximizing sling life and strength |
Always aim for the largest practical D/d ratio. Different standards and sling types have specific minimum D/d ratio recommendations. I always tell my team to check these to ensure we are not unknowingly weakening our lifting gear.
Conclusion
Screw pin shackles are very useful for quick rigging jobs. Always use them correctly. Make sure pins are tight and loads are right for safe lifting.
