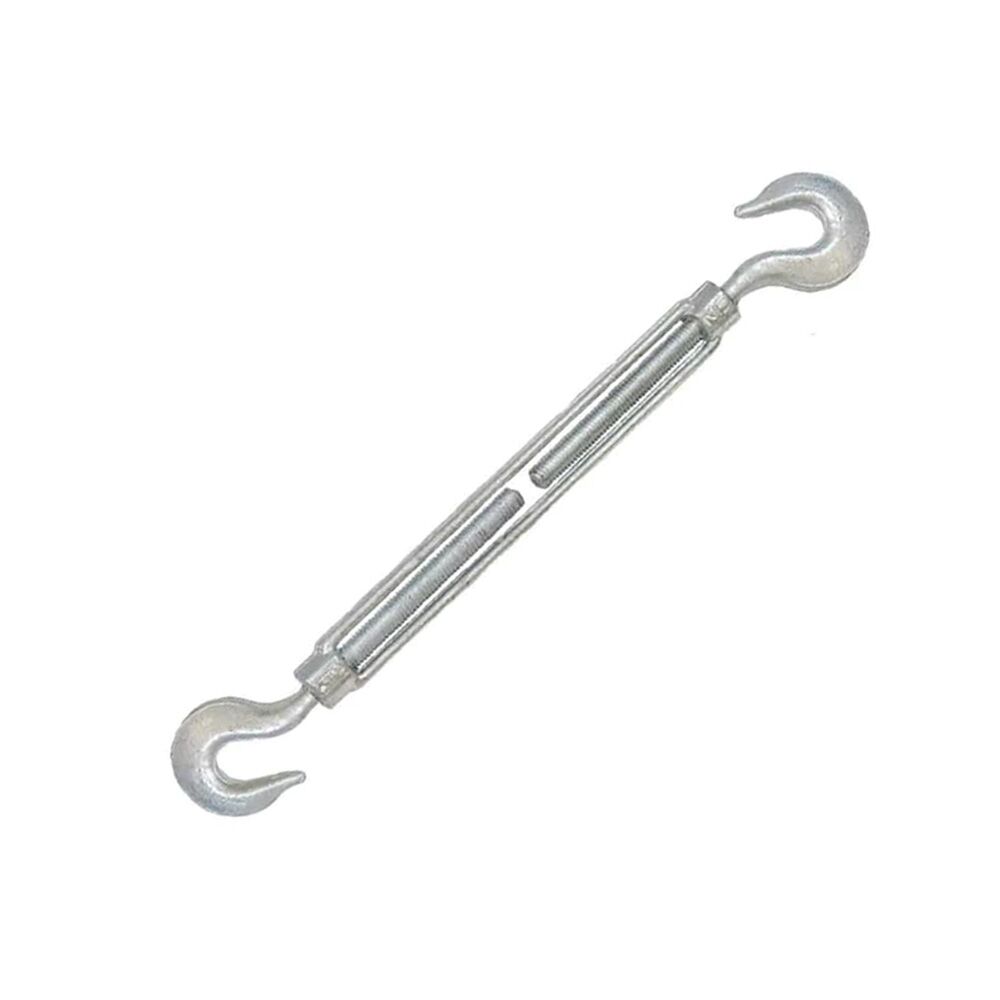

DIN 1480 Hook And Hook Turnbuckle

A DIN 1480 Hook And Hook Turnbuckle is a type of hardware used for tensioning and adjusting wire ropes. It consists of two hooks on either end, connected by a threaded body. The hooks are designed to securely attach to the wire rope, while the threaded body allows for easy tension adjustment.

Specification

Additional information

Standard

DIN 1480 Type

Material

Carbon Steel

Size

From 6mm to 36mm

Surface Treatment

Hot dip galvanized, Electro Galvanized

Production Process

Drop forged

Application

Overhead Lifting, Lashing, Towing

Description

DIN 1480 Hook And Hook Turnbuckle Specifications:

MOQ1 Pallet, 1 Ton or 3000USD
MaterialCarbon Steel
Surface FinishHot dip galvanized, Electro Galvanized
SizesFrom 6mm to 36mm
Technique ProcedureDrop forged
Safety Factor5 : 1 or N/A
HS code732690

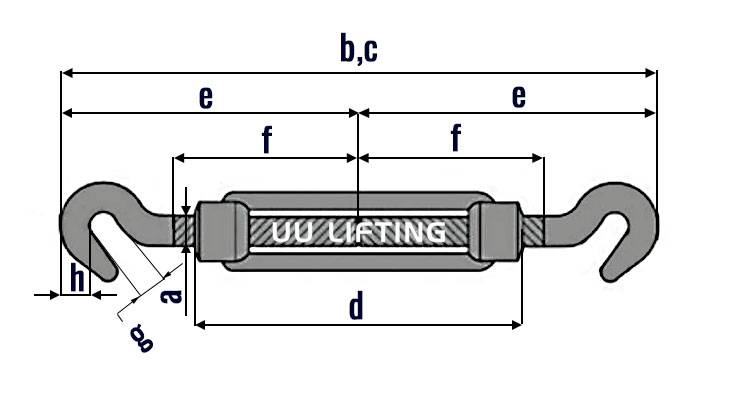

DIN 1480 Hook And Hook Turnbuckle Sizes:

DIN 1480 Hook And Hook Turnbuckle Sizes

DIN 1480 Hook And Hook Turnbuckle Sizes
Size (a) (mm)Dimensions (mm)Weight (kg)
bcdefgh
618427011092558.00150.11
82002801101005710.50150.20
103243231251176813.00110.28
122603431251307016.00120.43
142783681401397518.00150.61
163224381701618820.00171.00
2038251420019110521.00211.60
2245660122022811824.00282.20
2449667325524813526.00332.80
3055071525527513534.00354.10
3360079929530014838.00406.00
3664082529532015836.00458.40



Key features:

Step-by-step guide on how to install DIN 1480 Hook And Hook Turnbuckles.

Installing DIN 1480 Hook And Hook Turnbuckles is a straightforward process that follows a few simple steps. Here is a step-by-step guide to help you with the installation:

  1. Gather the necessary tools and materials: Before you begin, ensure you have all the tools and materials required for the installation. This may include a wrench, pliers, wire rope, and the turnbuckle.
  2. Determine the placement: Decide where you want to install the turnbuckle and mark the locations for the hooks. Ensure that the wire rope is aligned correctly and will be under tension when the turnbuckle is installed.
  3. Attach the hooks: Open them on the turnbuckle and securely attach them to the wire rope. Ensure they are correctly aligned and tightly closed to ensure a secure connection.
  4. Thread the body: Once the hooks are attached, thread the body of the turnbuckle onto the hooks. Use a wrench or pliers to tighten the body, ensuring it is securely fastened.
  5. Adjust the tension: With the turnbuckle installed, you can now adjust the tension of the wire rope. Use the threaded body to either tighten or loosen the pressure as needed. Ensure to achieve the desired level of stress without overstraining the wire rope.
  6. Secure the turnbuckle: Once you have adjusted the tension, secure the turnbuckle in place by tightening any locking mechanisms or nuts that may be present. This will prevent the turnbuckle from loosening over time.
  7. Test the installation: After the turnbuckle is securely installed, test the tension of the wire rope to ensure it meets your requirements. Make any necessary adjustments if needed.

Following these steps, you can successfully install DIN 1480 Hook And Hook Turnbuckles and ensure a secure and reliable connection for your wire rope applications.

OUR FACTORY
Raw materials of our products are made of high-quality steel that meets the standards, and the raw materials are traceable. And multiple production lines and machines minimize lead times for rigging and lifting equipment.
RAW-MATERIAL
Raw Material
Forged-Plant
Forged
Cast Process
Cast
Chain Process
Chain Machine
Heat Treatment Plant
Heat Treatment
Powder Plastified Plant
Powder Plastified
Package Plant
Package
Warehouse Plant
Warehouse
MANUFACTURING PROCESSES
With eight automatic forging and semi-automatic forging line of up to 1600ton press machines and specialized drillng, tapping, heat treatment and inspection equipment. Strict and standardized production process ensures you receive perfect products.
MANUFACTURING-PROCESSES-shackle
QUALITY CONTROL
All rigging and lifting products are subjected to strict working tension and breaking the tension test. Complied with ISO9001 and CE certification. Our promise to you: Guaranteed safety at work for people and materials.
G70 Chain Test
Chain Test
Clamp Test
Clamp Test
Hook Test
Hook Test
Link Test
Link Test
Shackle Tension Test
Shackle Tension Test
Snap Hook Test
Snap Hook Test
