G80 Forged Connecting Link/Chain Connector

The Connecting Link/Chain Connector is made of high-quality alloy steel. Designed for lifting equipment operation and use with G80 alloy chain.

Specification

Additional information

Material

Alloy Steel

Surface Treatment

Powder Painted

Safety factor

4:1

Application

Overhead Lifting, Lashing, Towing

Description

G80 Forged Connecting Link/Chain Connector Specifications:

MOQ1 Pallet, 1 Ton or 3000USD
MaterialAlloy Steel
Surface FinishPowder plasticized
SizesFrom 6mm to 32mm
Technique ProcedureDrop forged
Safety Factor4:1
HS code732690

G80 Forged Connecting Link/Chain Connector Sizes:

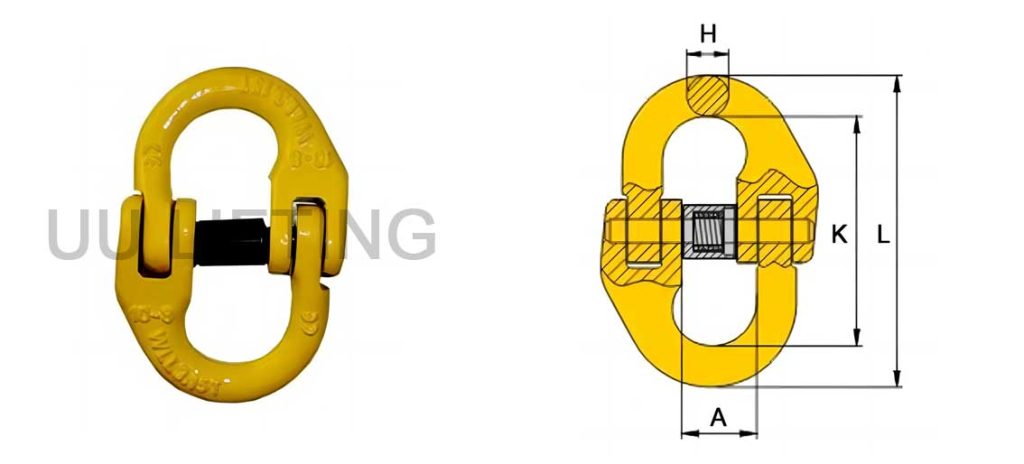

G80 European Type Chain Connecting Link Sizes

G80 Forged Connecting Link/Chain Connector Sizes
SizeW.L.L (t)B.L (t)Dimension (mm)Weight (kg/pc)
ALKH
6-81.124.4815584270.08
7/8-8281879.562.58.50.146
10-83.1512.625936810.80.3
13-85.321.22911787150.7
16-883234.5148108.419.81.1
18/20-812.55041169.5121.5261.8
22-8156048193.5141.5263.2
26-821.284.857.5220158304.5
32-831.512667261205379

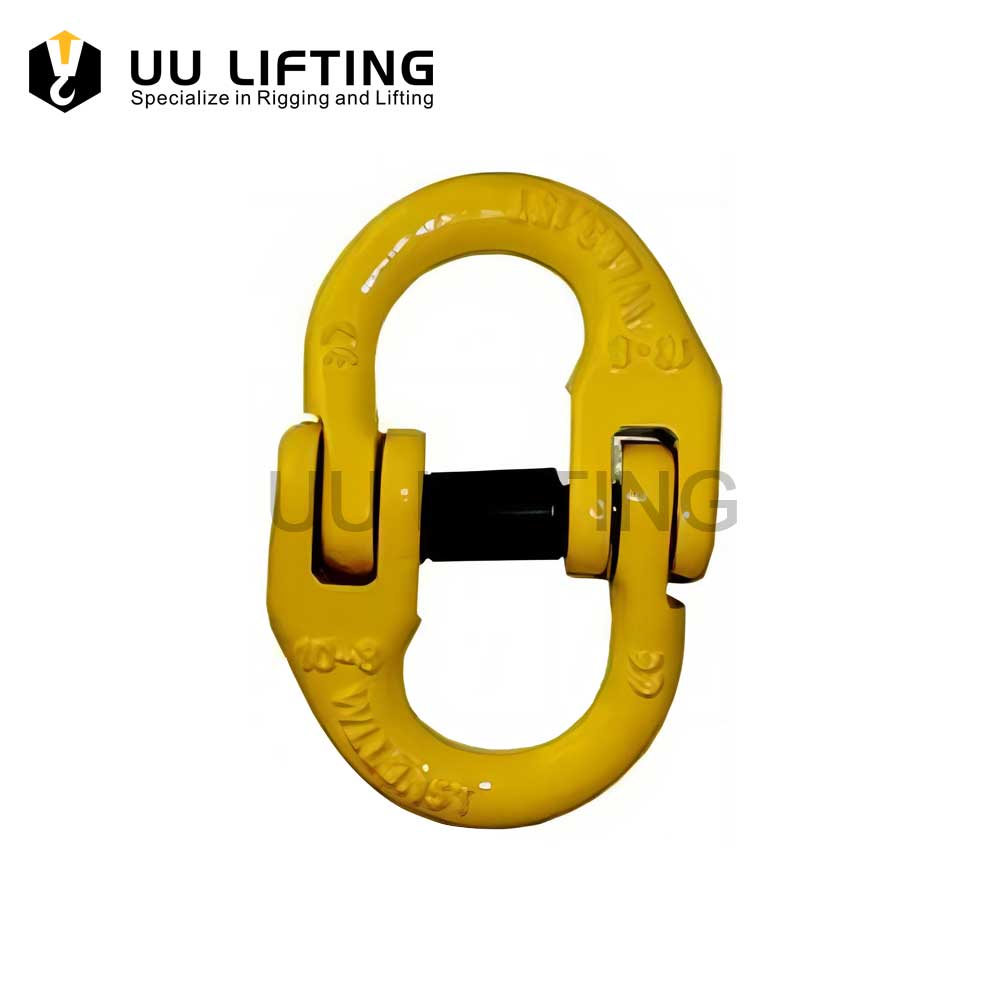

G80 Forged Connecting Link/Chain Connector

Connecting Link/Chain Connector

The Connecting Link is a connecting ring, which is mainly pivoted with a rotating ring body at both ends of a connecting ring body, and the double-ring buckle is equipped with a rigging. One end forms a convex inlaid portion.

The Connecting Link/G80 Chain Connector is made of high-quality alloy steel, quenched and tempered. The surface of the link is spray-coated, the product is bright and wear-resistant, and it will not rust after long-term use. Designed for lifting equipment operation and use with G80 alloy chain or other accessories. Specially manufactured by forging and other techniques and surface treatment, the link has high strength, exquisite appearance, and is easy to use but durable. It can be used as an accessory for lifting or trailer accessory. It can used in the Heavy Industry, Mining, Water Treatment, Healthcare, Retail Industry, Food & Beverage, General Industry, Oil & Gas, and Automotive Industry.

Connecting link (butterfly buckle) is a new type of construction equipment. It is an ideal tool for locking and anchoring formwork tie rods. It is made of high-quality carbon or alloy structural steel and is forged and heat-treated. The labor intensity of workers can speed up the progress of the project by 50%. It is sturdy and durable, can be used repeatedly without maintenance, and reduces the construction cost. The load is stable, and the safety is high.

If you are interested in our products, please contact us now.

OUR FACTORY
Raw materials of our products are made of high-quality steel that meets the standards, and the raw materials are traceable. And multiple production lines and machines minimize lead times for rigging and lifting equipment.
RAW-MATERIAL
Raw Material
Forged-Plant
Forged
Cast Process
Cast
Chain Process
Chain Machine
Heat Treatment Plant
Heat Treatment
Powder Plastified Plant
Powder Plastified
Package Plant
Package
Warehouse Plant
Warehouse
MANUFACTURING PROCESSES
With eight automatic forging and semi-automatic forging line of up to 1600ton press machines and specialized drillng, tapping, heat treatment and inspection equipment. Strict and standardized production process ensures you receive perfect products.
MANUFACTURING-PROCESSES-shackle
QUALITY CONTROL
All rigging and lifting products are subjected to strict working tension and breaking the tension test. Complied with ISO9001 and CE certification. Our promise to you: Guaranteed safety at work for people and materials.
G70 Chain Test
Chain Test
Clamp Test
Clamp Test
Hook Test
Hook Test
Link Test
Link Test
Shackle Tension Test
Shackle Tension Test
Snap Hook Test
Snap Hook Test
