Description

Rigging DIN1480 Turnbuckle Body Type

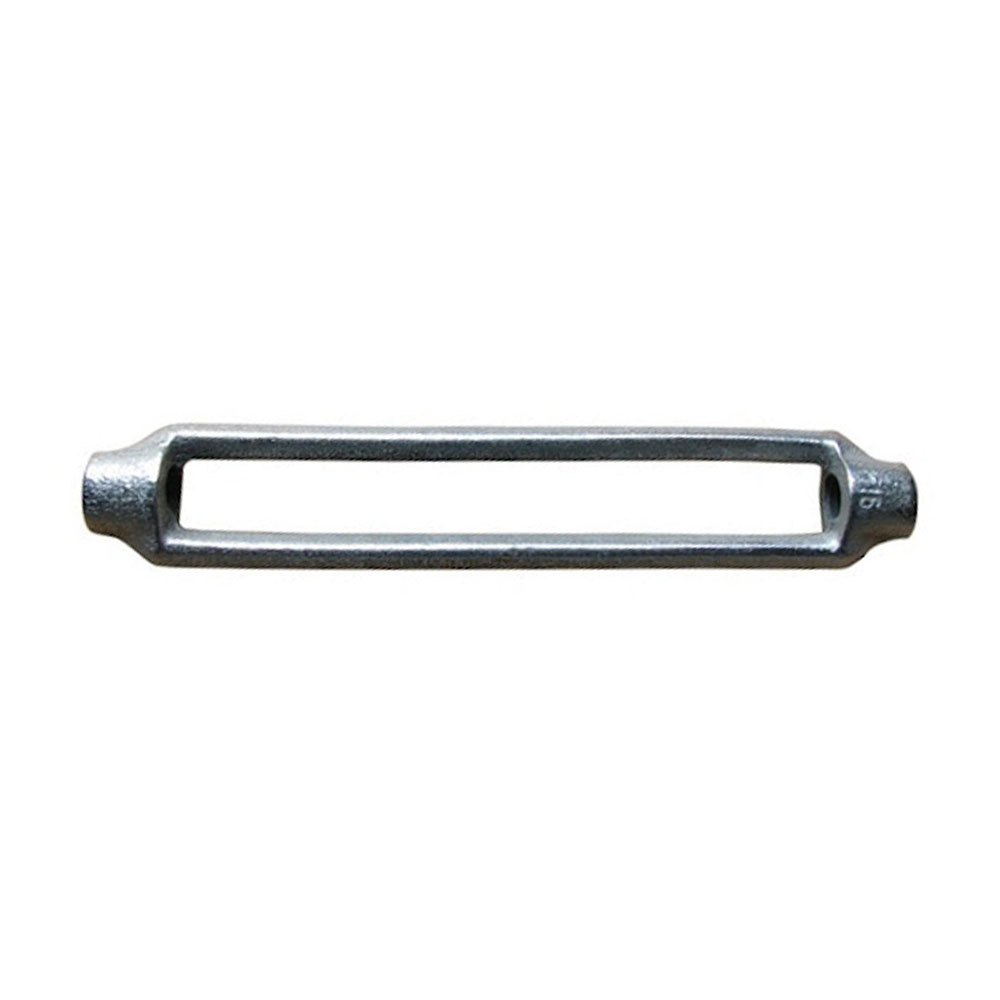

DIN1480 Turnbuckle Body

DIN1480 Turnbuckle Body Only is a fitting that is design to provide a tensioning function.It made by high quality carbon steel with advanced international production process.It has RHT on one side and LHT threads on the other. As such, they can be combined with a host of (properly sized) connections using RHT and LHT fittings for the desired effect.Also available in stainless steel AISI 304.

We also carry turnbuckles with the following ends:

Jaw & Jaw Turnbuckle DIN1480      Hook & Hook Turnbuckle DIN1480

Stub Ends Turnbuckle DIN1480       Plane Ends Turnbuckle DIN1480

Turnbuckle screws, also known as tight wire buckles, are mainly used to bind and fasten steel wire ropes, and play a role in adjusting the tightness. Among them, US typeturnbuckle screws mainly include 5 types of hooks and hooks. Usually, ring-type turnbuckle screws are used for occasions that are not frequently disassembled, and hook-hook turnbuckle screws are used for frequent removal. The ring type is used for occasions where one end is often disassembled and the other end is not disassembled frequently. The German standard die-forged electro-galvanized din1480 turnbuckle orchid belongs to the type that one end is often disassembled and the other end is not disassembled frequently.

Bearing in mind that the thread at one end is clockwise and its opposite is counter-clockwise, the turnbuckle body can be used with the whole range of ends depending on their sizes.TIPS: Maximum performance and maximum safety can only be achieved when the body is fitted with DIN 1480 ends made of steel of the same quality. The quality of the finish guarantees good corrosion resistance.Din1480 turnbuckle body are made by carton steel,Surface treatment is flawlessIf you need learn about more information,contact with us now.

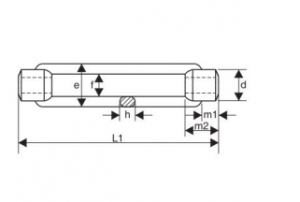

Din1480-Turnbuckle-Body
Din1480-Turnbuckle-Body



Size Adjustable Dimension(mm) Weight
(mm) (mm) L1 d e f h M1 M2 (kg/pc)
M6 80 110 12 19 9 6 12 6 0.055
M8 75 110 15 23 11 8 15 8 0.095
M10 85 125 18 30 14 9 18 9 0.155
M12 80 125 21 34 16 11 21 11 0.205
M14 90 140 25 38 18 10 24 9 0.310
M16 110 170 27 42 20 14 27 14 0.420
M20 130 200 34 52 24 17 34 17 0.740
M22 145 220 36 57 26 16 37 15 0.950
M24 170 255 39 60 28 20 39 20 1.30
M30 160 255 45 74 34 23 45 23 1.80
M36 180 295 55 86 40 28 55 28 3.10
M42 200 330 63 104 50 32 63 32 5.56
M48 195 355 80 135 65 40 78 39 9.75
M56 195 355 80 135 65 40 78 39 9.00
