G80 Master Link A-343

Categories Hooks, Rigging Hardware Tags G80 Chain Connector, Grade 8/80 Components

G80 Master Link A-343 Sizes are generally used for wire rope, fiber, and combined chain slings. On other occasions, circular rings can be considered, and long rings must be used as connectors.

Specification

Additional information

Material	Alloy Steel
Surface Treatment	Powder Painted

Description

G80 Master Link A-343 Specifications：

MOQ	1 Pallet, 1 Ton or 3000USD
Material	Alloy Steel
Surface Finish	Powder plasticized
W.L.L	From 1.6t to 56t
Technique Procedure	Drop forged

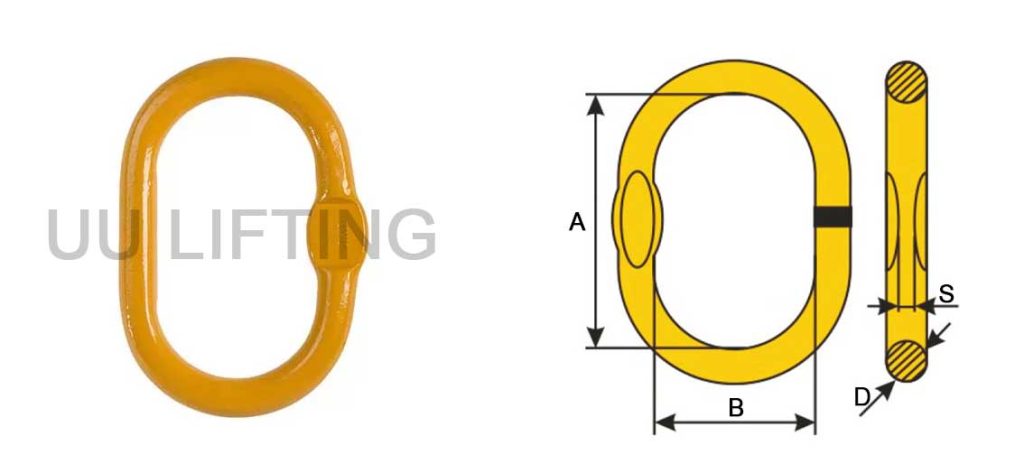

G80 Master Link A-343 Sizes：

G80 Master Link A-343 Sizes
Size	Weight (kg)	W.L.L (t)	Dimension (mm)
Size	Weight (kg)	W.L.L (t)	A	B	D
7 6-8	0.41	1.6	110	60	14
8 7-8	0.54	2.12	110	60	16
10 8-8	0.83	3.15	135	75	18
13 10-8	1.5	5.3	160	90	22
16 13-8	2.32	8	180	100	26
18 16-8	3.96	11.2	200	110	32
20 18-8	6.34	14	260	140	36
22 20-8	8.97	17	300	160	40
26 22-8	12.83	21.2	340	180	45
32 26-8	16.57	31.5	350	190	50
36 32-8	23.3	45	400	200	56
40 36-8	32.1	56	430	220	63

G80 Master Link A-343

Master Link

Product details:

The strength link is a ubiquitous rigging accessory, also known as a lifting link, but it differs significantly from the lifting ring in sports. It is divided into a circular ring, pear-shaped ring, master link, and master link assembly in shape. Its function is similar to a hook but different from a hook. The hook has an opening in the shape, while the ring is a fully enclosed shape. It must be passed through the middle of the ring to be used. Don’t worry about it existing like a hook. Possibility of decoupling.

Master links are generally used for wire rope, fiber, and combined chain slings. OCircular rings can be considered on other occasions, and long rings must be used as connectors. The sub-mother ring is mainly used to assemble the sling, the sub-ring is connected with the double-ring buckle and the chain connection, and assembled into a synthetic rigging, which is used to hoist heavy objects and equipment.

The G80 welded master link is made of high-quality alloy steel. Designed for lifting equipment operation and use with G80 alloy chain or g80 chain connector.Specially manufactured by forging and other techniques and surface treatment. It has high strength, exquisite appearance, and ease of use but durability. It can be used as an accessory for lifting or trailer accessory. It can used in Heavy Industry, Mining, Water Treatment, Healthcare, Retail Industry, Food & Beverage

* For other types of links not mentioned above, please contact our sales department for detailed dimensions and technical data.

OUR FACTORY

Raw materials of our products are made of high-quality steel that meets the standards, and the raw materials are traceable. And multiple production lines and machines minimize lead times for rigging and lifting equipment.

MANUFACTURING PROCESSES

With eight automatic forging and semi-automatic forging line of up to 1600ton press machines and specialized drillng, tapping, heat treatment and inspection equipment. Strict and standardized production process ensures you receive perfect products.

QUALITY CONTROL

All rigging and lifting products are subjected to strict working tension and breaking the tension test. Complied with ISO9001 and CE certification. Our promise to you: Guaranteed safety at work for people and materials.
