US Bolt Type Anchor G2130 Shackles

G2130 Shackles are widely used in electric power, metallurgy, petroleum, machinery, railway, chemical industry, port, mining, construction and other industries.

Specification

Additional information

Size

From 3/16" 1/3-ton shackle to 4" 150-ton shackle

Capacities

From 0.3T to 150T

Application

For lifting

Surface Treatment

Hot dip galvanized,electrco galvanzied

Production Process

Drop forged – Quenched and Tempered, with alloy pins

DOWNLOAD

Description

US Bolt Type Anchor G2130 Shackles Specifications:

MOQ1 Pallet, 1 Ton or 3000USD
ComponentAlloy Steel
Surface finishBody: Hot Dipped Galvanized / Powder Coated / Zinc Plated(Galvanized)
Safety Pin: Powder Coated / Zinc Plated
SizesFrom 3/16" 1/3-ton shackle to 4" 150-ton shackle
Technique ProcedureBody: Drop Forged / Quenched, and Tempered
Safety Pin: Hot/Cold forging / Drop Forged / Quenched and Tempered
Safety Factor6: 1 / 4: 1
HS code732690

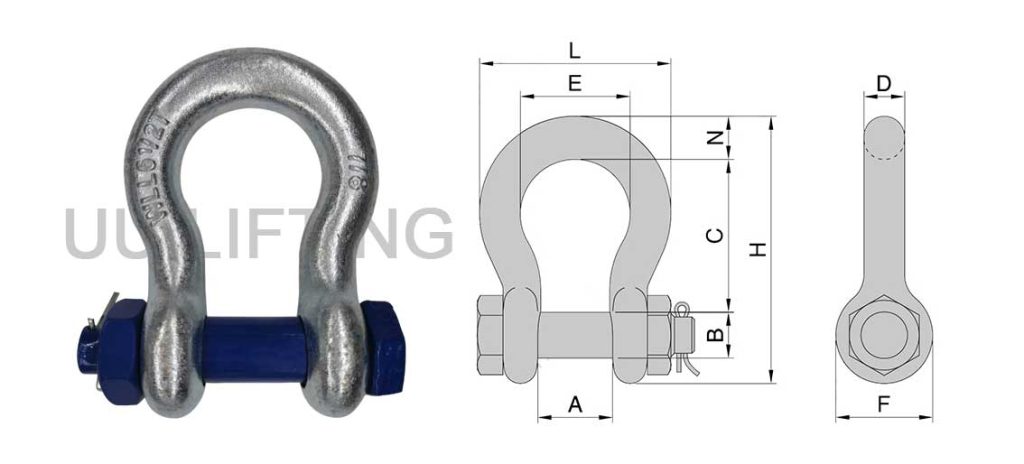

US Bolt Type Anchor G2130 Shackles Sizes:

US Bolt Type Anchor G2130 Shackles Sizes



US Bolt Type Anchor G2130 Shackles Sizes
Nominal Size (Inches)Work Load Limit (Tons)Dimensions (Inches)Unit Weight (Lbs.)
ABCDEFHLN
3/161/30.380.250.880.190.60.561.470.980.190.06
1/41/20.470.311.130.250.780.611.841.280.250.11
5/163/40.530.381.220.310.840.752.091.470.310.22
3/810.660.441.440.381.030.912.491.780.380.33
7/161-1/20.750.51.690.441.161.062.912.030.440.49
1/220.810.631.880.51.311.193.282.310.50.79
5/83-1/41.060.752.380.631.691.54.192.940.691.68
3/44-3/41.250.882.810.7521.814.973.50.812.72
7/86-1/21.4413.310.882.282.095.834.030.973.95
18-1/21.691.133.7512.692.386.564.961.065.66
1-1/89-1/21.811.254.251.132.912.697.475.161.258.27
1-1/4122.031.384.691.253.2538.255.751.3811.71
1-3/813-1/22.251.55.251.383.633.319.166.381.515.83
1-1/2172.381.635.751.53.883.63106.881.6219
1-3/4252.88271.7554.1912.348.862.2533.91
2353.252.257.7525.754.8513.689.972.452.25
2-1/2554.132.7510.52.627.255.6917.8412.873.1398.25
38553.251337.886.521.514.363.62154
3-1/21205.253.7514.633.629824.6316.54.12265
41505.54.2514.54.110925.6918.124.56338

Key features:

  • Anchor Shackle, bolt type G2130, is suitable for permanent and extended lifting applications or when the load may slide on the shackle pin and cause it to rotate. A locking nut and a shackle cotter pin will provide added security. We also offer a different shackle model, G-2150, if you’d like to compare the two types of shackles. Check this article: How many types of shackles?
  • The G2130 shackle pin is available in various standard colors such as Red, Yellow, Black, Green, and Blue but can also be customized to your specific needs with a special painting.
  • Hot-dipped galvanizing and zinc plating may be the best choices if you’re looking for a reliable surface finish. These two processes use electric galvanization to protect against corrosion and weathering while providing a polished appearance. This article will provide an overview of these two methods, their common uses, and other available surface finishes that may suit your needs. Read this article: The 3 Different Types of Surface Treatments.

G2130 US Bolt Type Anchor Shackles

G2130 Shackles

G2130 Shackles, also called bow shackles. Also known as bolt-type anchor shackle ( G2130 Type). The Working Load Limit is permanently shown on every shackle. Breakage test and fatigue test.Individually proof test at 2.5 times the working load limit.Min.The breaking load is 6 times or 4 times the working load limit. The surface treatment can be electric galvanized, hot dip galvanized, or powder plasticized. Any color can be customized.

G2130 Shackles are widely used in electric power, metallurgy, petroleum, machinery, railway, chemical industry, port, mining, construction, etc.

G2130 US Bolt Type Anchor Shackles

4 Rules you should know for the safe use of shackles:

  1. It is important to pay attention to each rigging component’s Working Load Limit (W.L.L) when handling any lifting operation with a shackle. Never exceed the stated W.L.L. as it could cause breakage and other potentially dangerous accidents if not followed correctly. Ensure that all shackles have clear and legible markings for reference.
  2. Before beginning a lift, inspecting shackles for any signs of wear and damage, such as deformation, cracks, or metal loss, is important. It should also be ensured that the shackle pin is entirely intact and properly screwed into it. By performing this visual check beforehand, potential problems can be identified and addressed before they become an issue.
  3. Periodic inspections and regular maintenance are critical for the performance and longevity of rigging shackles. It is important to keep them away from harshly abrasive edges or surfaces and avoid dragging or wearing them down through heavy usage that exceeds their working load limit (W.L.L).
  4. To ensure the quality of your rigging, it is important to take certain precautions when storing. You should keep your rigging in a dry, well-ventilated area for short-term storage. When storing for long periods, ensure the rigging surface is free of dirt or grime and avoid exposing it to heat or direct sunlight. Additionally, be mindful to keep corrosive chemicals away from your equipment since they can cause damage.

Read more: Safety Considerations When Using Shackles.



Shipping and Payment Terms:

  • The cargo will arrive inside a container at the port when shipping goods worldwide via sea. You are responsible for collecting the shipment and handling any customs formalities needed.
  • We can sometimes accommodate orders that need expedited due to time constraints by utilizing air shipping methods. Rest assured that we will always do our best to process any small, urgent orders promptly!
  • We offer two payment options: Wire Transfer (T/T) and a Letter of Credit (L/C).
  • Are you having difficulty understanding our shipping and payment process? If so, please don’t hesitate to get in touch with us. We would be happy to help answer any questions you might have.

G2130 US Bolt Type Anchor Shackles

FORGING PROCESS
With eight automatic forging and semi-automatic forging line of up to 1600ton press machines and specialized drillng, tapping, heat treatment and inspection equipment. Strict and standardized production process ensures you receive perfect products.
Moulds
Moulds
Forging
Forging
Clearance Procssing
Clearance Procssing
Half Finished
Half Finished
Machining Workshop
Machining Workshop
Drill Hole
Drill Hole
Heat Treatment
Heat Treatment
Painting
Painting
Salt Spray Test
Salt Spray Test
Tension Test
Tension Test
Packing
Packing
Shipping
Shipping
QUALITY CONTROL
All rigging and lifting products are subjected to strict working tension and breaking the tension test. Complied with ISO9001 and CE certification. Our promise to you: Guaranteed safety at work for people and materials.
