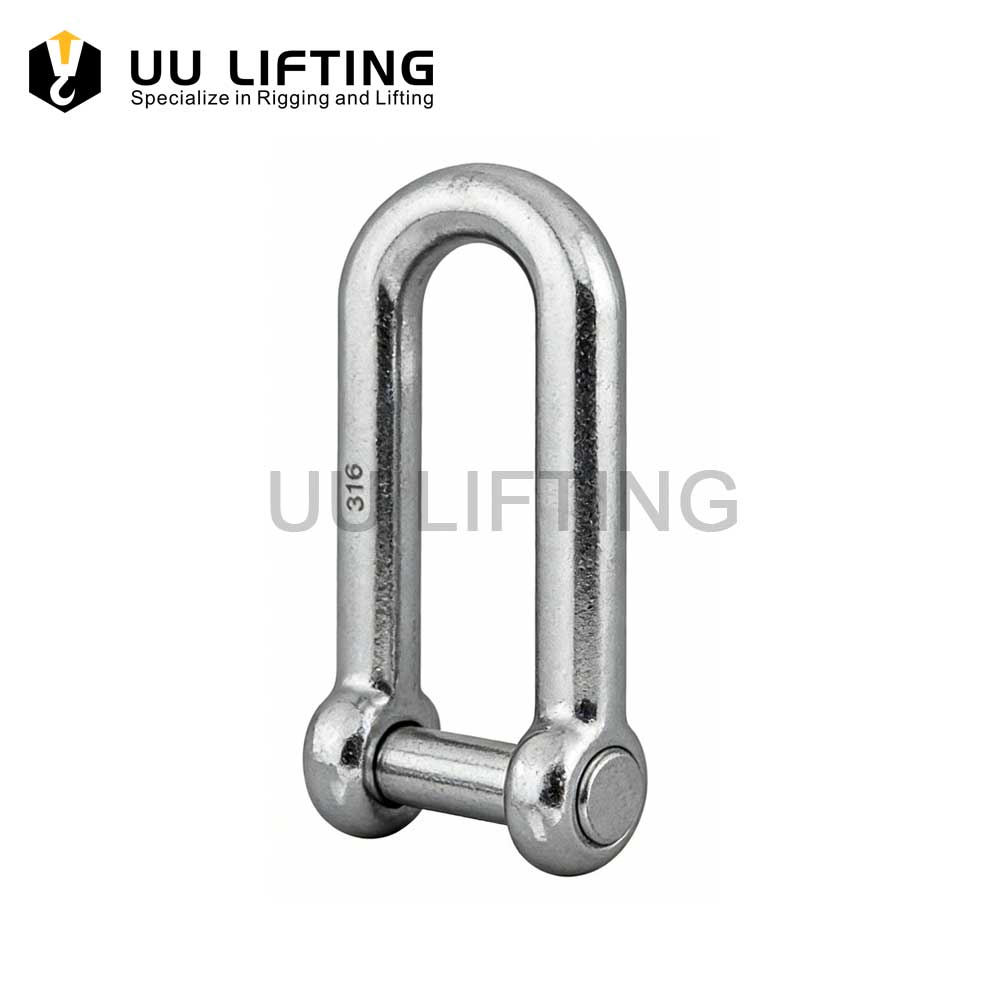

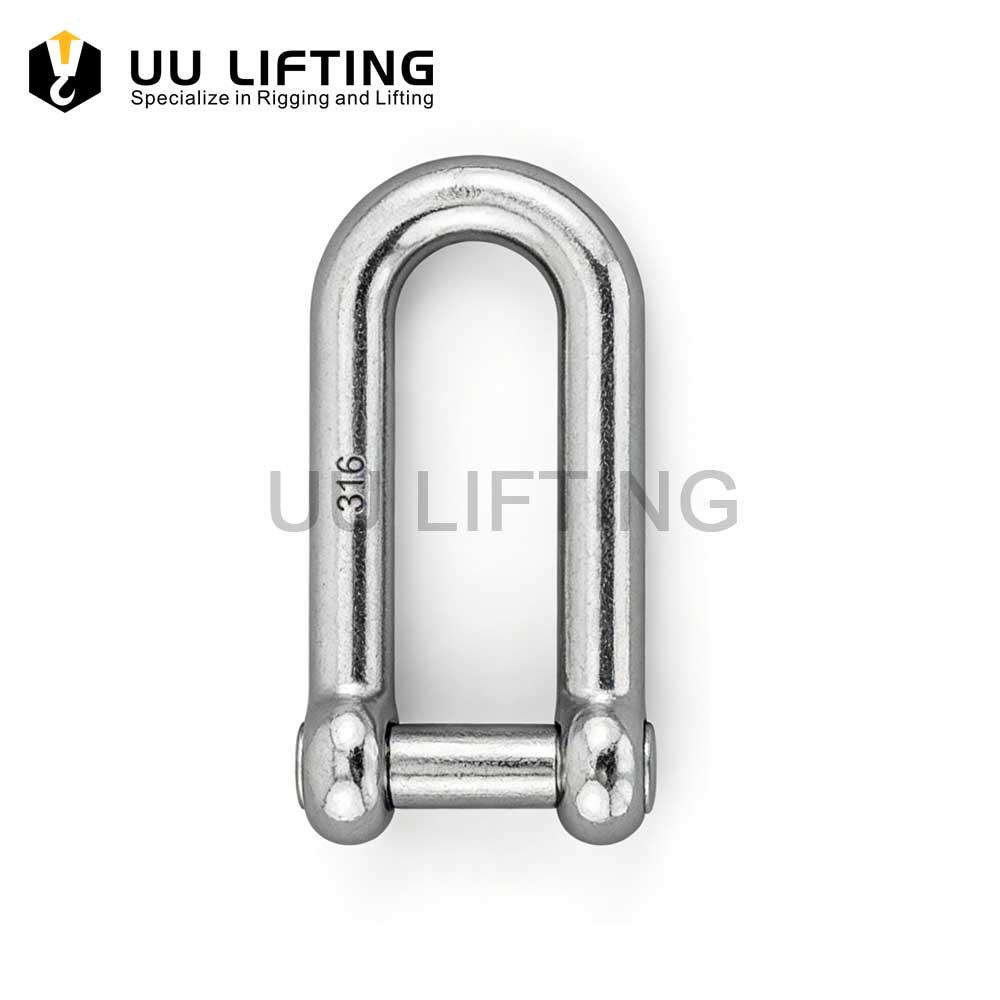

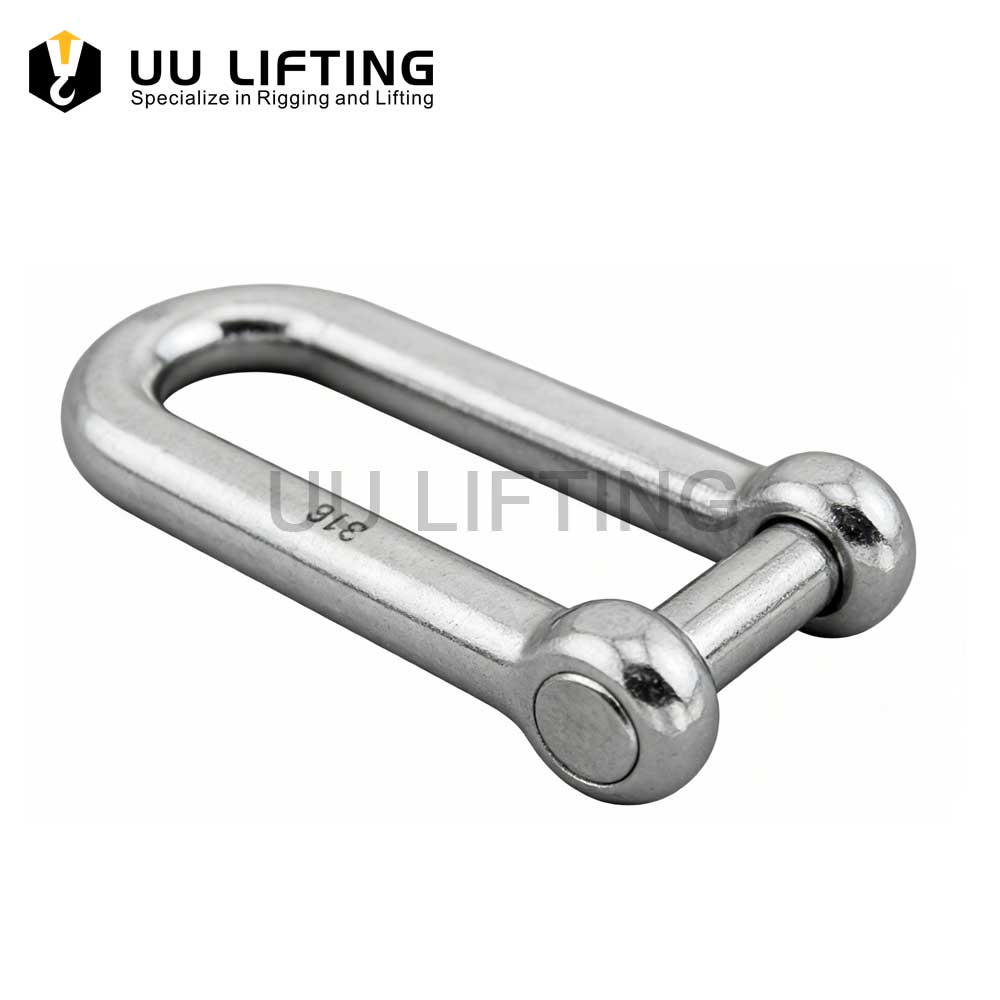

Stainless Steel Long D Shackle with No Snag Pin

Stainless Steel Long D Shackle with No Snag Pin Specifications:

MOQ	1 Pallet, 1 Ton or 3000USD
Material	Grade: 316 Stainless Steel
Surface Finish	High Polished Finish
Sizes	From 1/4″ to 1/2″
Technique Procedure	Free Forging

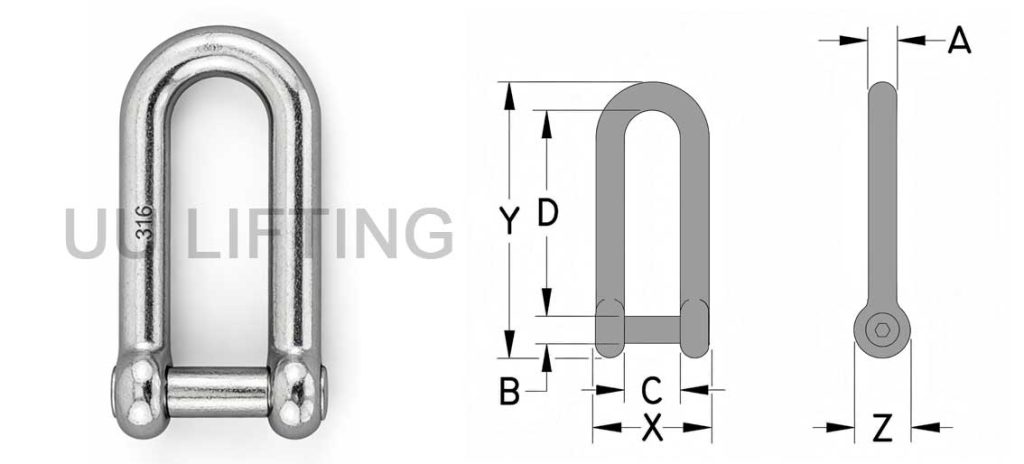

Stainless Steel Long D Shackle with No Snag Pin Sizes：

What Is a Stainless Steel Long D Shackle With a No-Snag Pin?

A stainless steel long D shackle with a no-snag pin is a specialized connector. Its elongated “D” shape provides extra room. The flush pin design prevents snagging. Stainless steel construction offers superior corrosion resistance, making it ideal for marine and industrial applications.

What makes the “Long D” shape so useful?

The “long” or “long dee” pattern gives you more inside length than a standard D-shackle. This extra space is perfect for thicker ropes or multiple connections. It allows more movement in a rigging assembly without weakening it.

A shackle has a few main parts. The U-shaped body is the bow. The holes are the ears. The fastener is the pin. The D-shackle’s “D” shape is designed for lifting in a straight line. It handles in-line tension very well. But it is not suitable for side loads. A bow shackle is better for that. The “long D” is a variation of this basic design. It has a greater internal length from the pin to the inside of the bow. This extra space is significant in specific jobs.

I remember a customer in South America who bought our polyester slings. He used standard D-shackles. The shackle was too small and pinched the webbing. This pinching can damage the sling and reduce its safe working load. I suggested he switch to a long D-shackle. The problem was solved immediately. The extra space allowed the sling to sit correctly. This protected the equipment and made the lift safer.

Comparing Shackle Patterns

Feature	Standard D-Shackle	Long D-Shackle
Internal Length	Standard	Extended
Primary Use	General in-line lifts	Lifts with wide connection points
Benefit	Compact and strong	Prevents pinching of slings
Common Application	Connecting single chain links	Attaching to wide webbing slings

How does a “No-Snag Pin” really work?

A “no-snag” pin is designed so its head sits flush with the shackle’s body. This creates a smooth outer surface with no protruding parts. It prevents snagging on ropes, nets, or sails, making it much safer and more efficient.

Comparing Pin Security and Snag Risk

Pin Type	Security	Snag Risk	Best For
Screw Pin	Moderate	High	Temporary Lifts
Bolt, Nut & Cotter Pin	High	High	Permanent Rigging
No-Snag Pin	High	Very Low	Dynamic Environments

Why is stainless steel the best material for these shackles?

Stainless steel offers the best corrosion resistance, especially against saltwater and chemicals. This makes it perfect for marine and industrial use. Its durability ensures a long service life with minimal maintenance, even in the most challenging conditions.

Stainless Steel vs. Galvanized Steel

Feature	Stainless Steel	Galvanized Steel
Corrosion Resistance	Excellent, inherent to the metal	Good, relies on a coating
Appearance	Bright, polished finish	Dull, sometimes rough finish
Durability	Long-lasting, resistant to scratches	Can rust if coating is damaged
Ideal Environment	Marine, chemical, food grade	General construction, dry areas
Cost	Higher initial investment	Lower initial investment
